Description
Recommended Parts
- Propellers: 31mm Propellers
- Batteries: 300mAh 1S 30C Battery
- Throttle value means the position when the drone hovers in the air.
- Flying time is the time from OSD voltage value 4.3V->2.8V.
- All tested with 4-blades props. 31mm props or 40mm props.
- All throttle values are tested on full charged 550mAh batteries.
- The KV value of 0703/0603 motors is both 15000KV.
Specification
-
- Plug：Micro JST-1.25 3-pins connector
- Dimension: 9*9*15.4mm

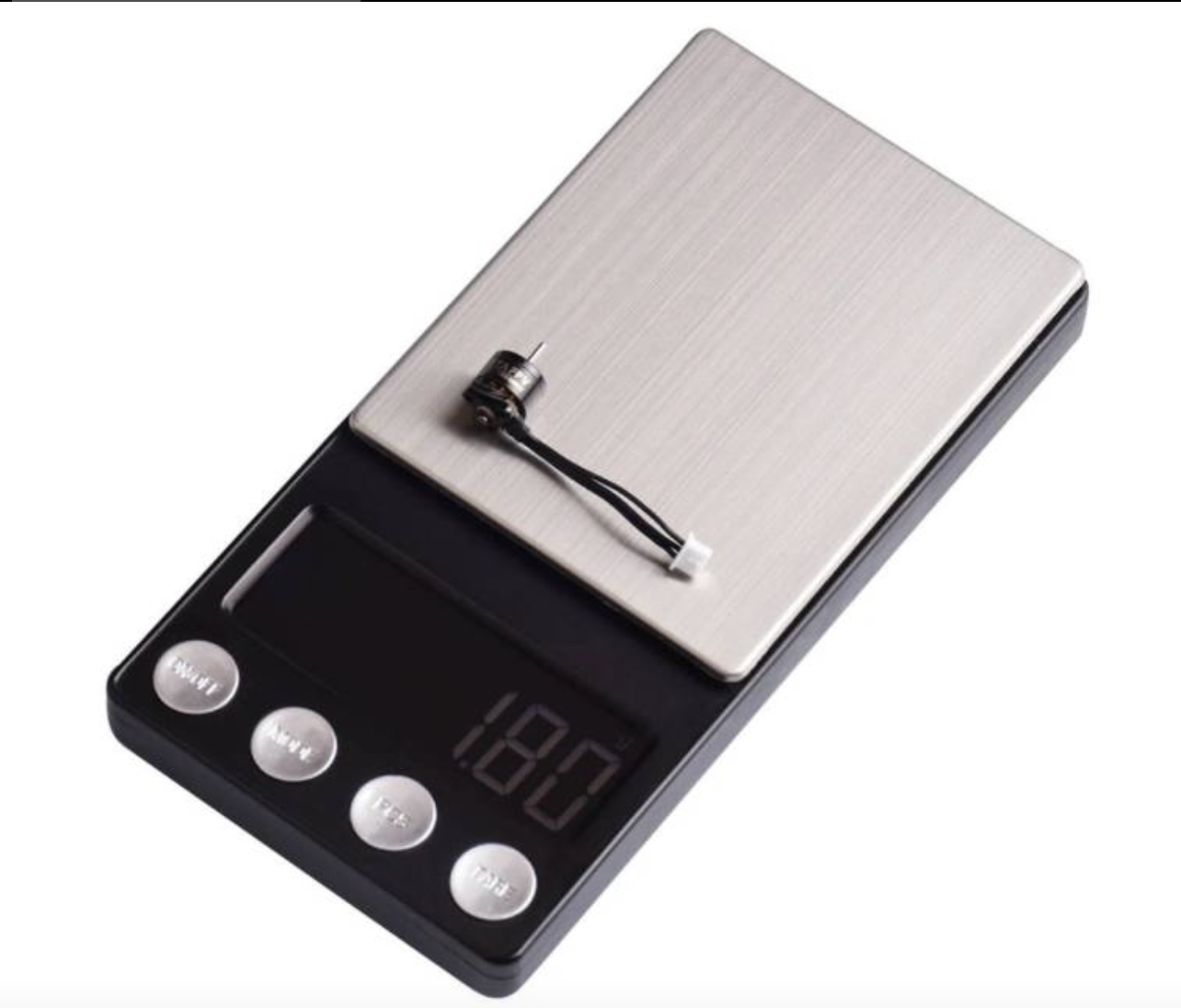

- Weight: 1.8g ( with connector)
- Shaft: φ1.0mm
- KV (rpm/V): 16000KV / 19000KV
- Voltage: 3.7V
- Battery: 1S lipo battery (2S is not recommended)
- Load Current: 1.8-3.8A
- Pull: 23-40g
- Power: 6.7-28W
- Efficient: 3.4-1.4g/W
- Usage: for 1S brushless multirotor

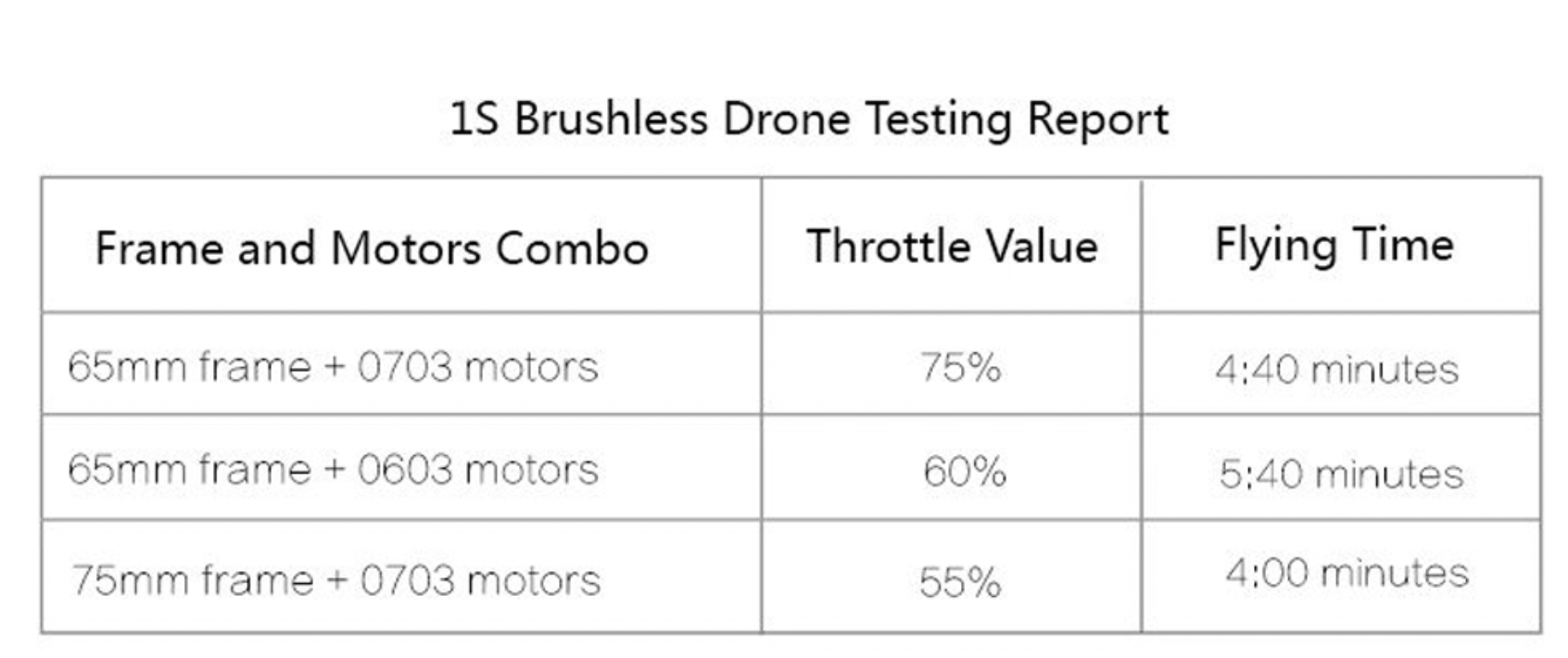

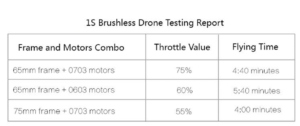

Testing report
