Full Speed FSD408 F4 Tower (FC+ESC)

Description

We don’t suggest to use the motor which is larger than 1103 on this stack.

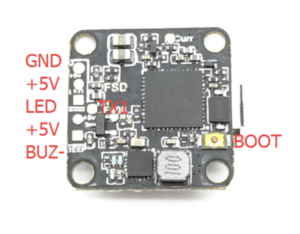

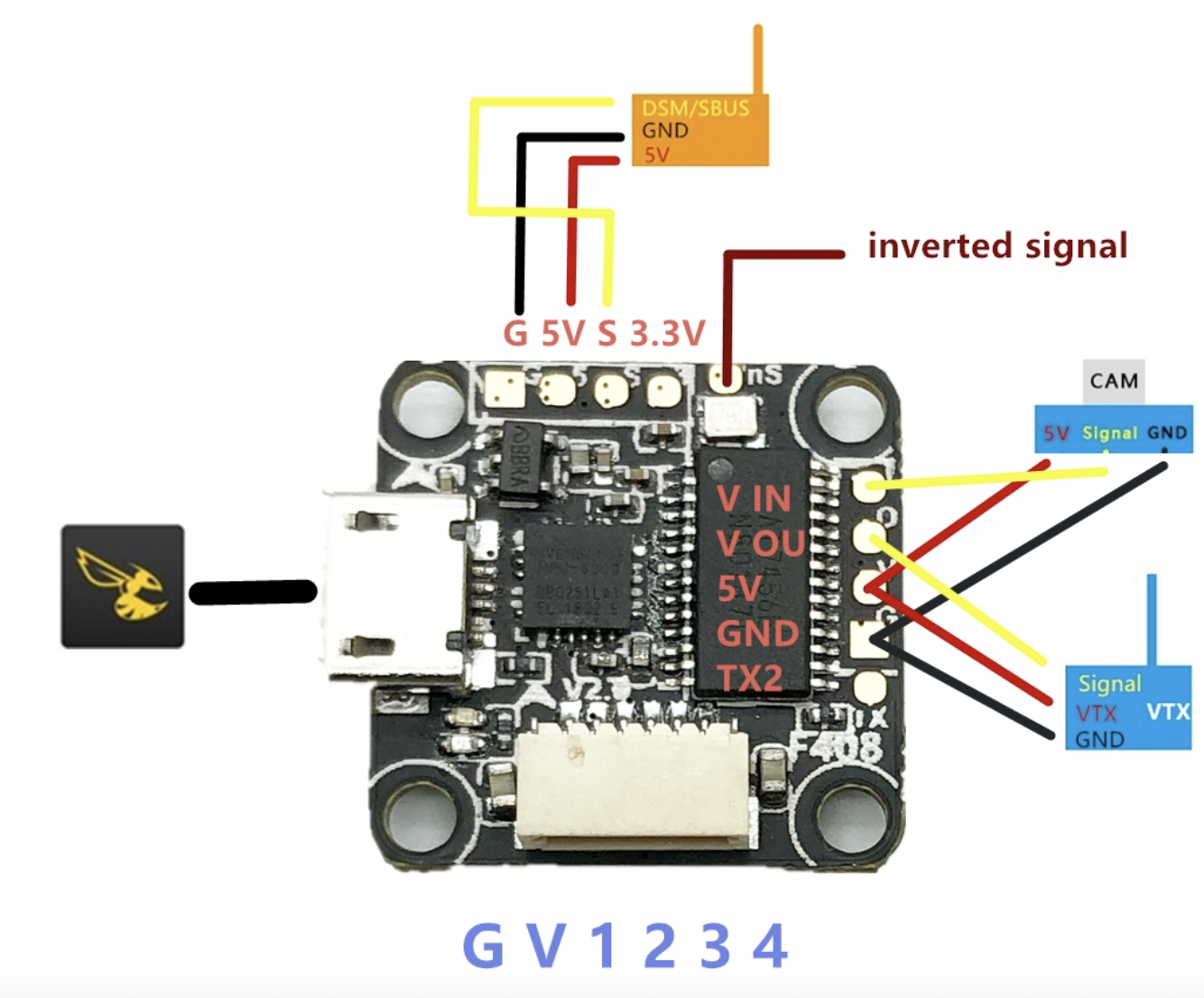

Full Speed FSD408 F4 Tower (FC+ESC)

2S-3S 8A 16*16mm mount hole Flight Tower

Size: 20mm x 20mm x 5mm
Mounting hole: 16mm x 16mm
MCU: STM32 F411 Built-in Betaflight OSD
Input voltage: 2S-3S（6V-13V）
Input voltage: 2S-3S（6V-13V）
BEC: 5V/2A

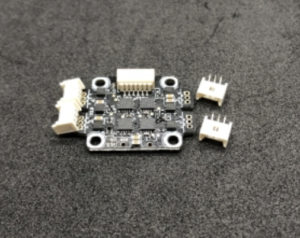

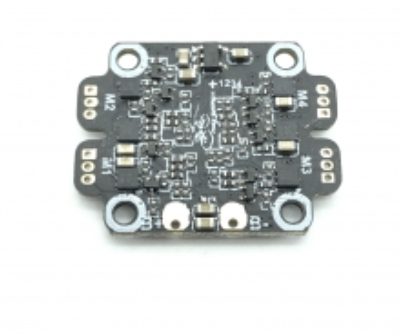

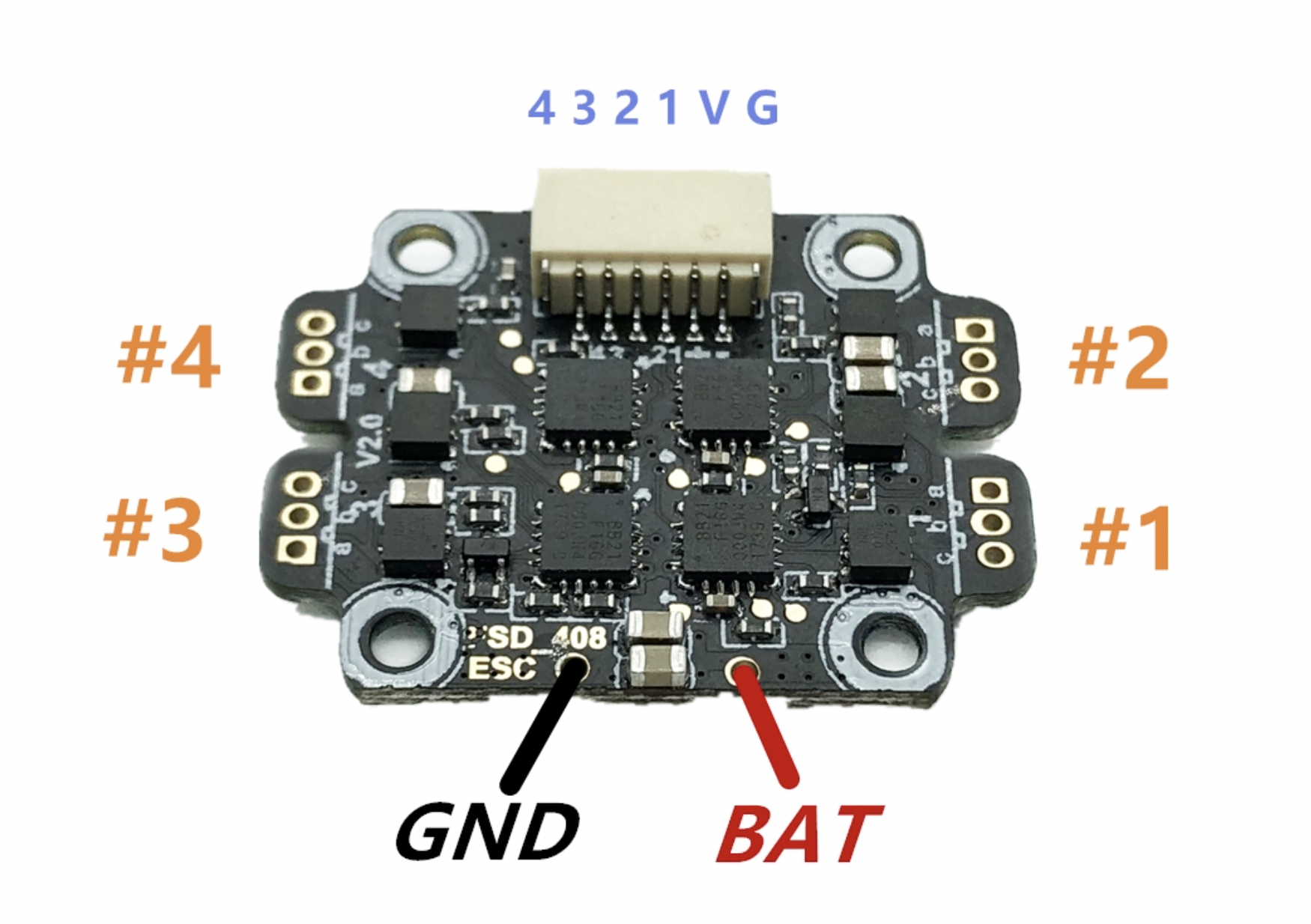

FullSpeed FSD408（1-3S ESC）BLHELI_S 4in1 ESC  V2
Size: 20mm x 25mm x 5mm
Mounting hole: 16mm x 16mm
Firmware: BLHELI_S
Input voltage: 1-3S
Continuous current: 8A
BEC Ouput: NO

90°Plug:

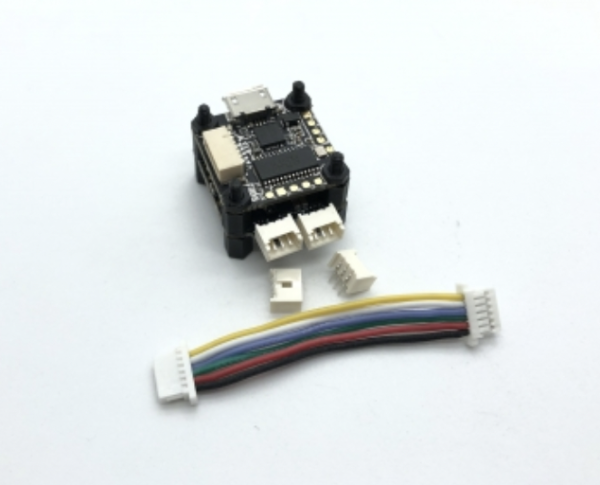

Package Included:
1 x FSD408 FC  2-3S Flight Controller (5V 2A)
1 x FSD408 ESC 1S-3S 4in1 ESC V2
1 x 6 Pin Cable
8 x M2x5 standoffs 5mm tall Nylon
4 x M2 Nylon Nuts
4 x 90°Plug
