Description

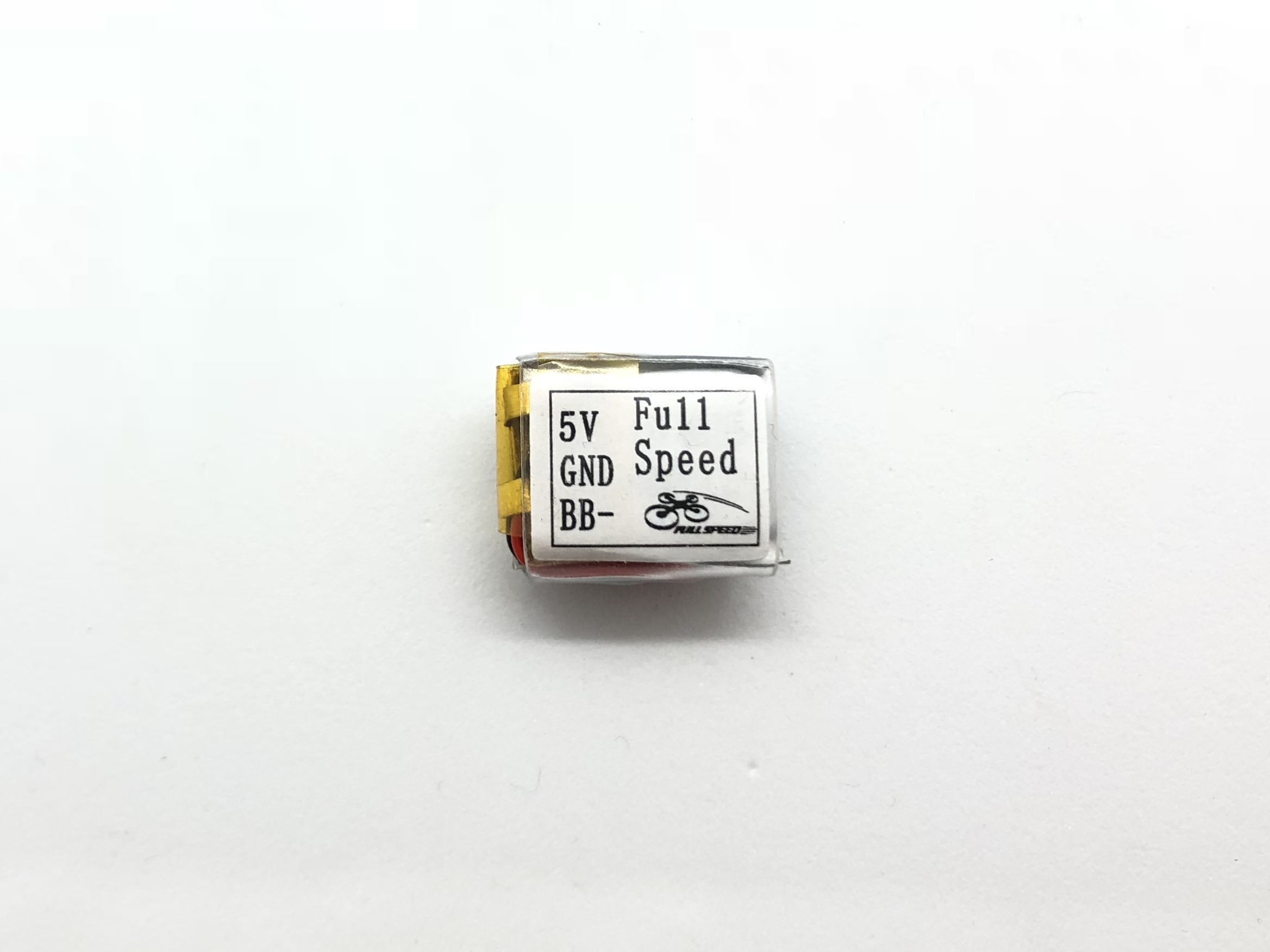

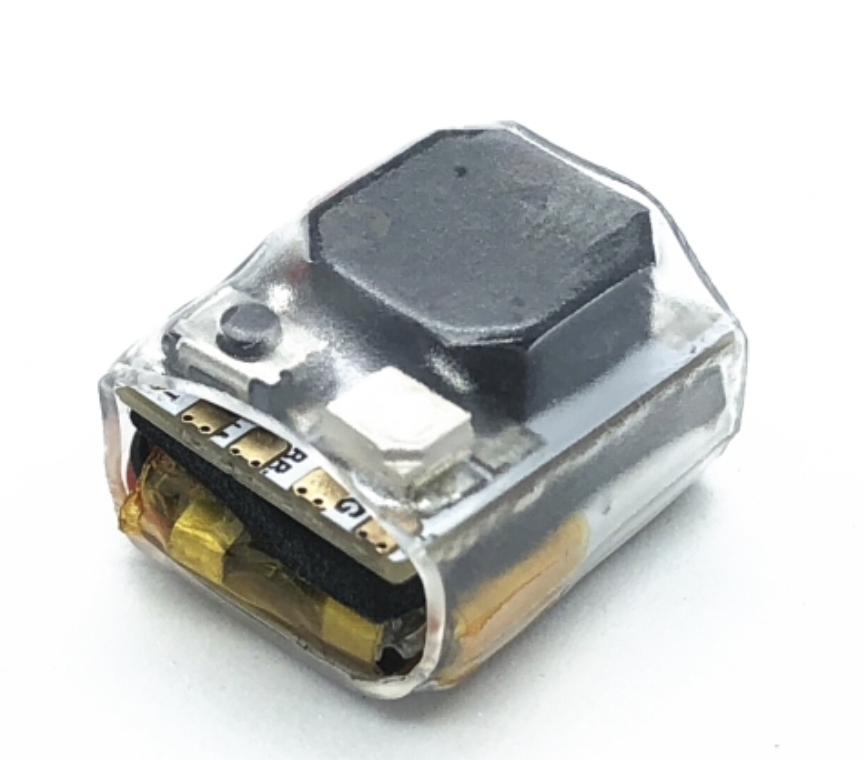

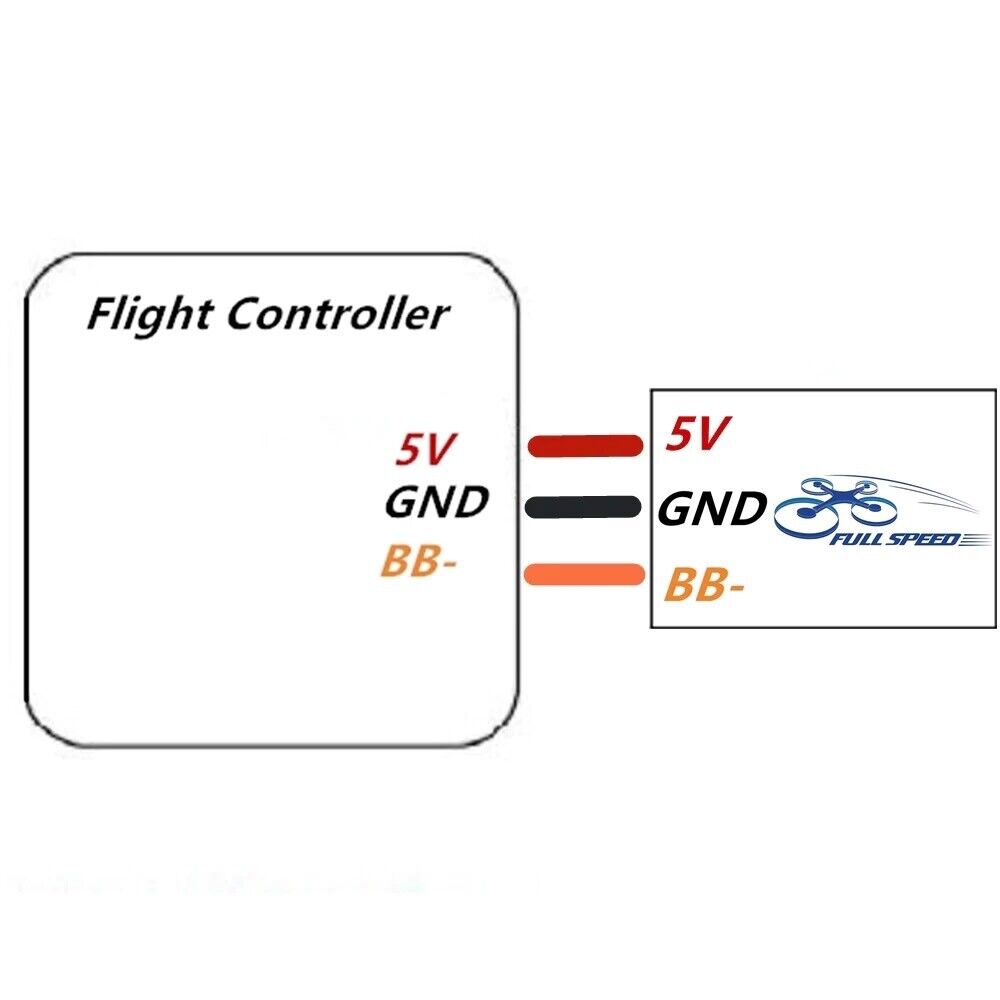

The FSD Lucky Box Buzzer can be used as a regular buzzer and there is no complicated installation or maintenance  process involved. If you would like to use it as a regular buzzer on your aircraft you just need to connect it to a 5V power input, common Ground and a FC buzzer Ground, since it supports a buzzer passthrough.

Switch on:
-Power up the buzzer with 5V to switch on.
-After switching on the buzzer, it will long beep x 1 and short beep x 1-3(1 means the buzzer’s battery voltage lower than 3.7V, 2 means lower than 4V, 3 means highter than 4V)

Switch off :
When the automatic alarm is not activated(two methods):
-Short press the button for 3 times to switch off the buzzer (about 1 times per sec.)
-Disconnect and connect the main battery for 8-10s and disconnect the main battery again to switch off the buzzer.
When the automatic alarm is activated(two methods):
-Short press the button for 3 times to switch off the buzzer (about 1 times per sec.)
-Power up with 5V.
You will hear the quick-short tone when the buzzer is switched off.
Some flight controllers’s buzzer pads use a different method than the lucky box is designed for. It will still work but buzzer will constantly sound and can only be turned off when battery reconnected(Short press the button for 3 times to switch off the buzzer)

Tone setting:
-Long press the button for 5s to: enter level 1 menu/ level 2 menu/ exit set up menu. Short press x 1 to select the option.

-Level 1 menu(long beep x 1 & short beep x 1) to set up when will it beep after the main battery disconnect.

-Level 2 menu(long beep x 1 & short beep x 2) to set up the tone’s rate.

-After setting up level 1&2 menu, long press for 5s to save and exit set up. The buzzer will short beep x 3 & long beep x 1.
Please repower the Lucky Box Buzzer after setting up.
