INTRODUCTION

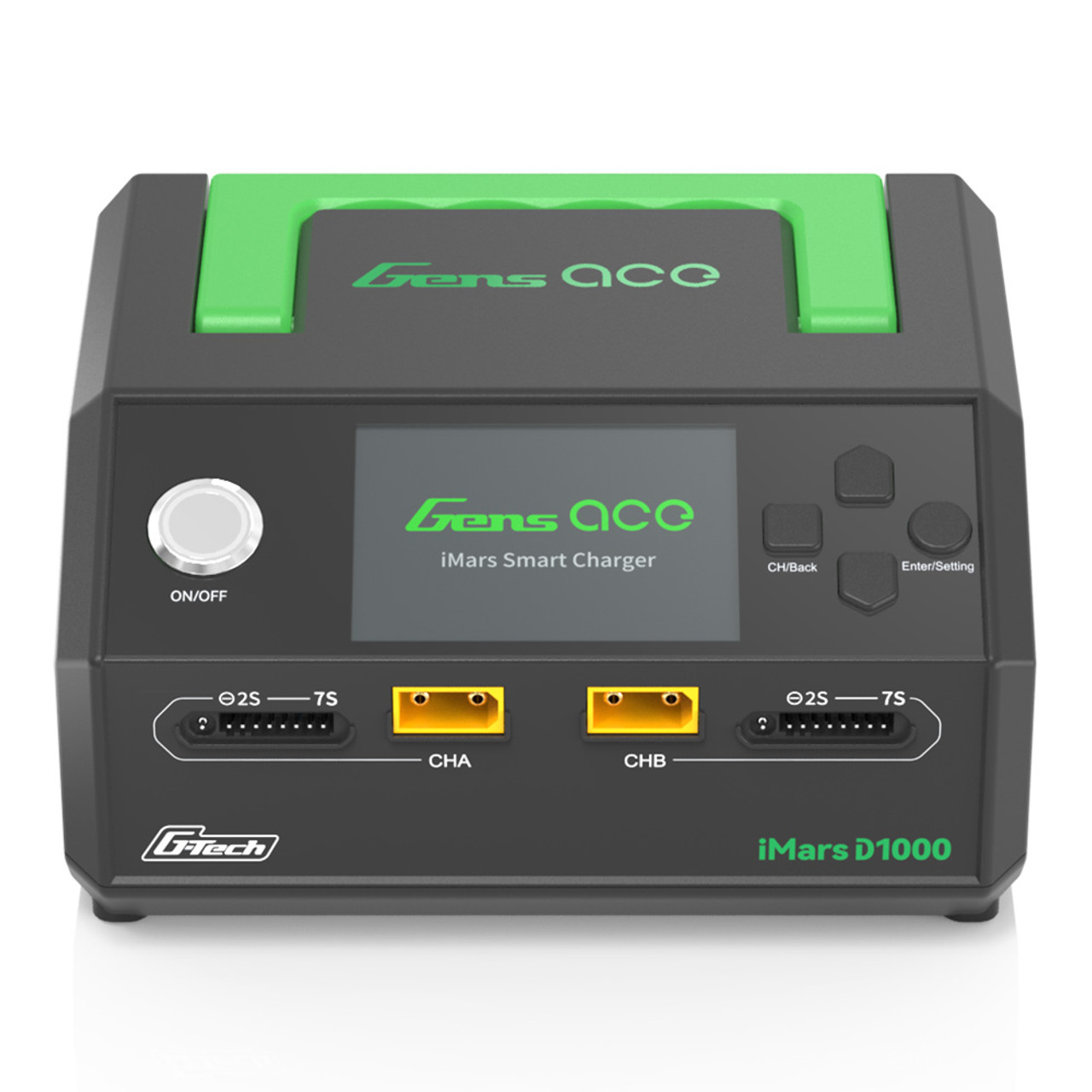

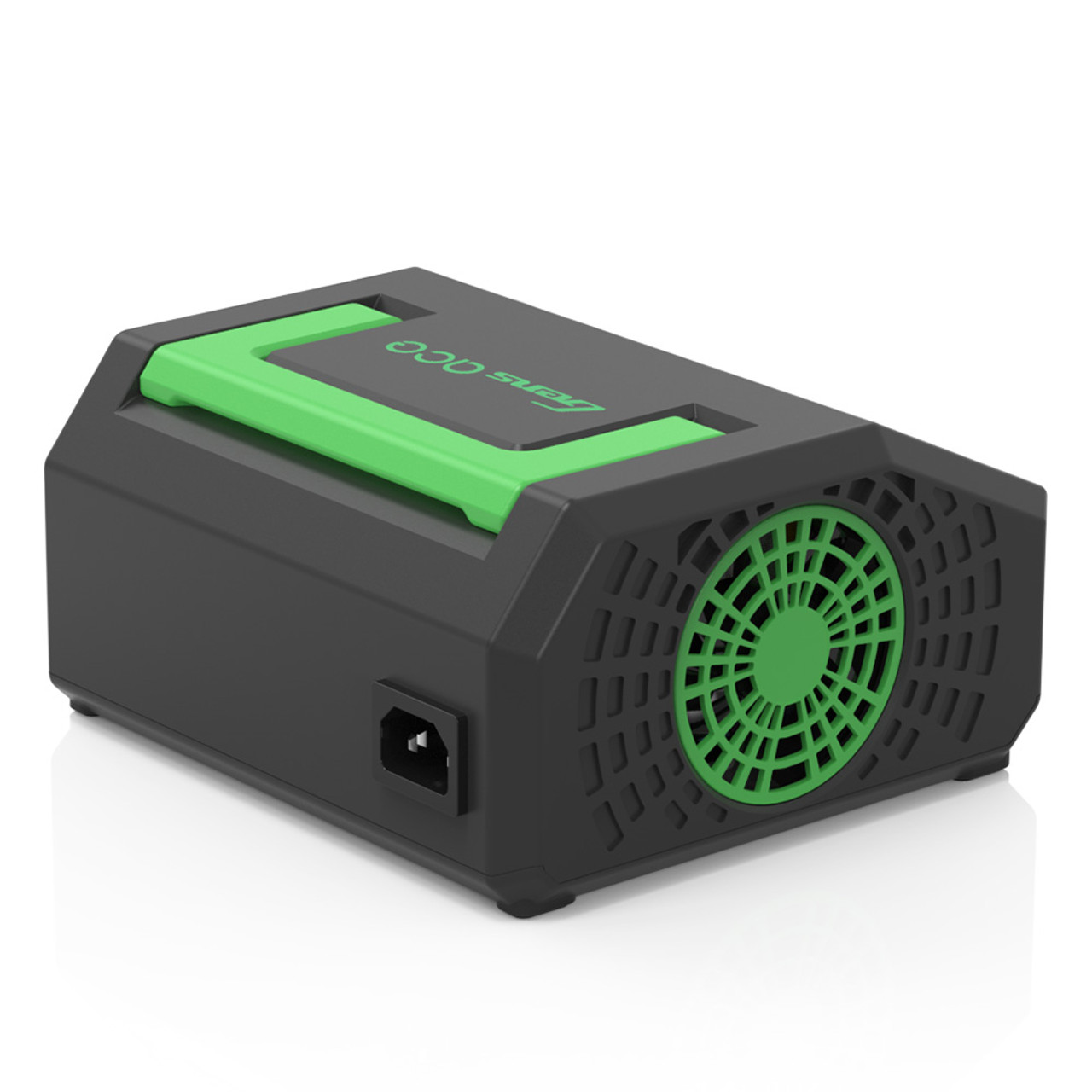

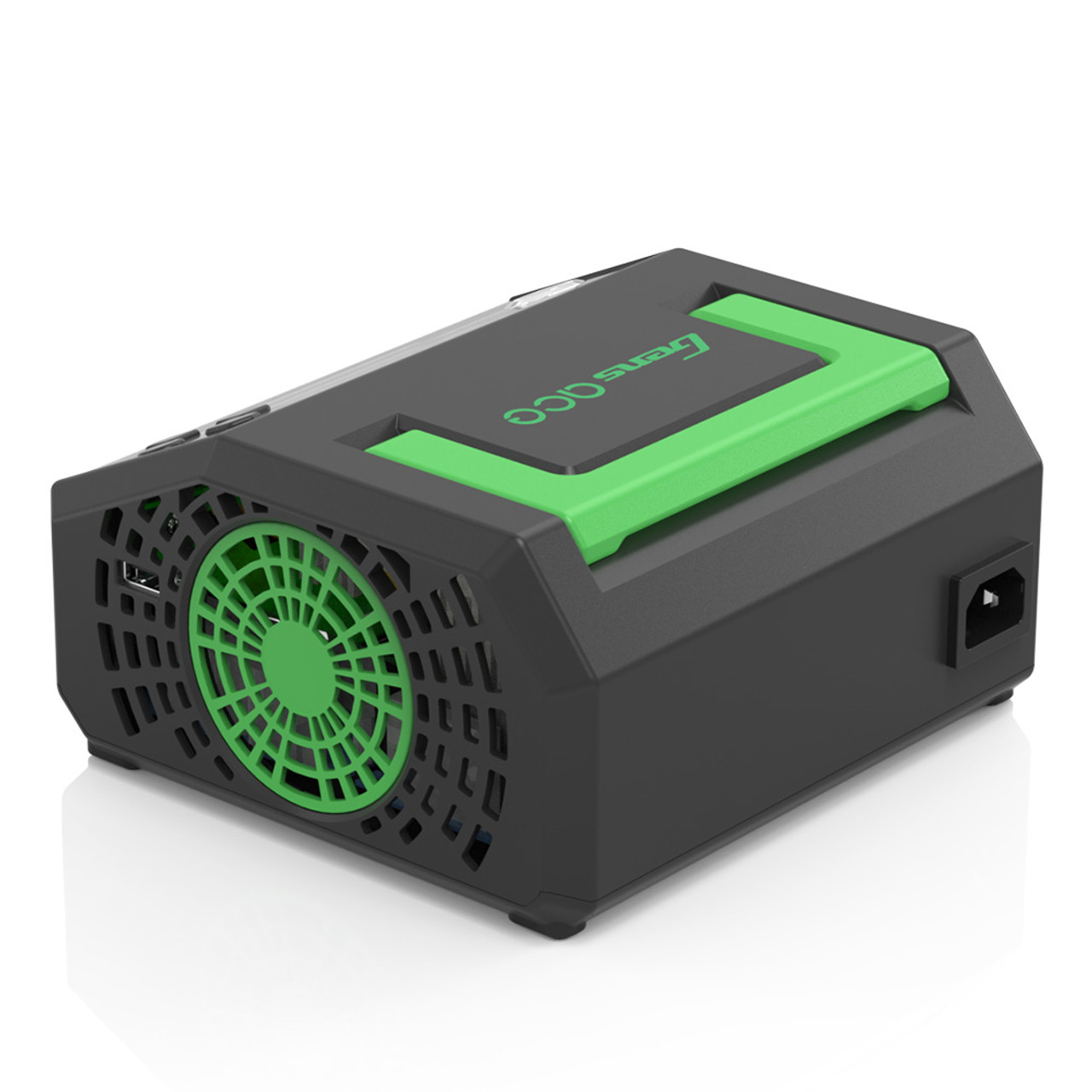

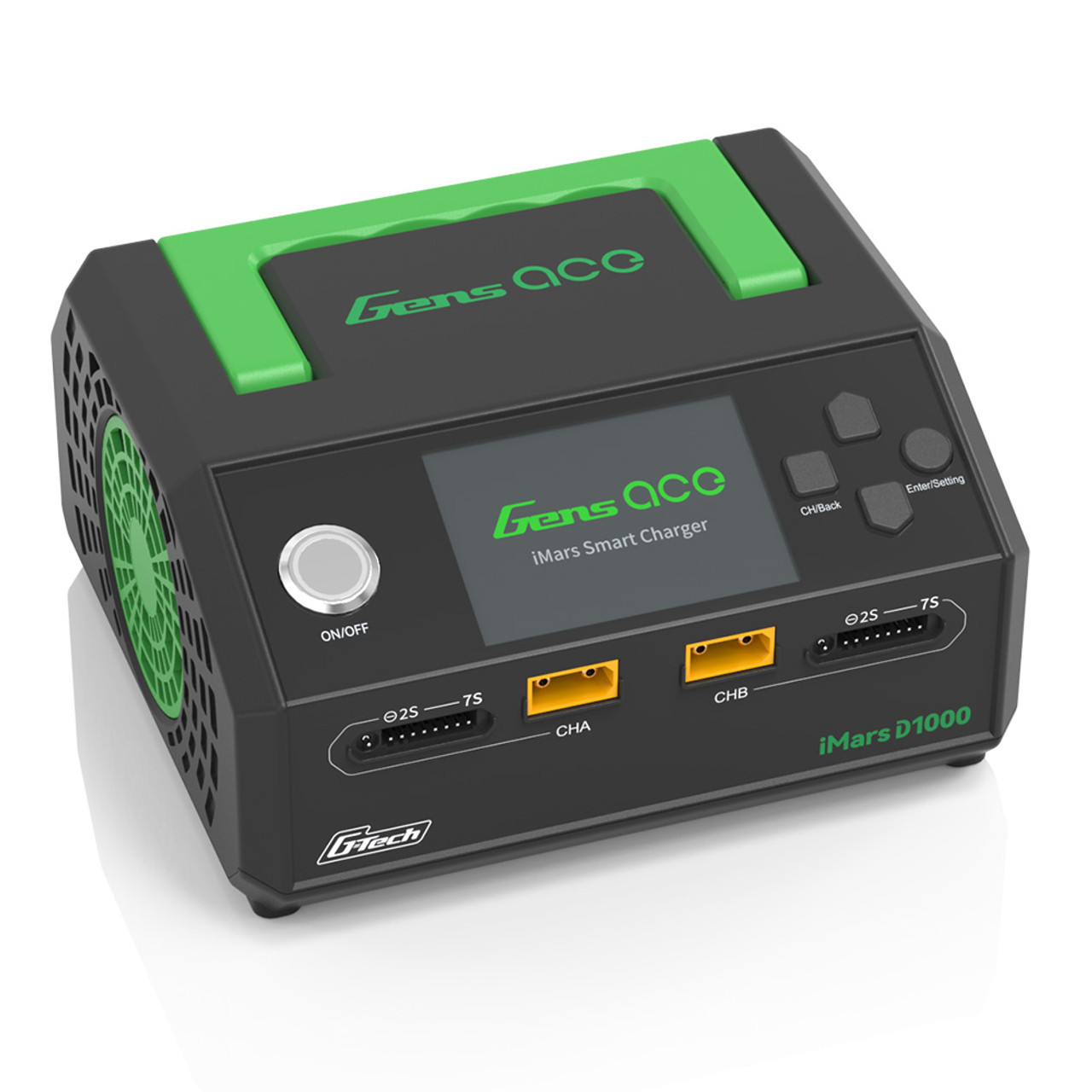

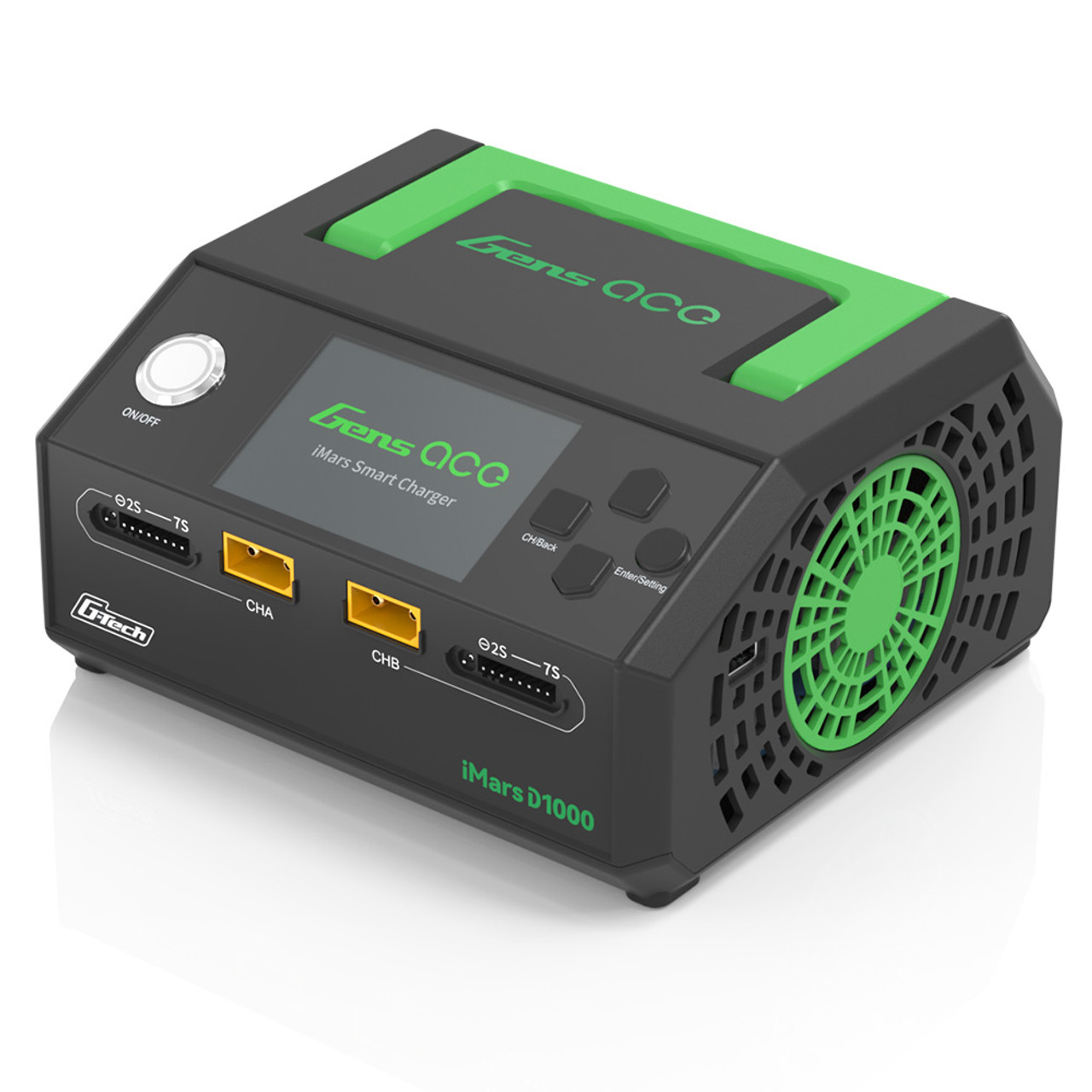

The iMars D1000 Charger is a new generation versatile and intelligent dual channels charger that with function of charging, discharging, and battery cycling functions.
As the new part of G-Tech Eco, iMars D1000 Charger is supporting both G-Tech smart battery and regular non-G-tech batteries.
When a G-Tech smart battery is connected to the iMars D1000 charger, the charger will automatically identify the battery type, voltage through the smart balance connector, and charging current recommended by the battery manufacturer. For non-smart batteries, it is necessary to manually select the battery type and the required working mode to get started.
Packed with features, the D1000 Charger includes a comprehensive charging capacity display, voltage difference monitoring, IR detection, and boasts a compact, lightweight design for easy portability. The wide-view IPS display enhances the user experience, and the charger supports high-power charging up to 25A.
Safety is paramount with the D1000 charger, offering a suite of protections including over-temperature, over-current, over-charge, over-voltage, disconnection, short circuit, single-cell low voltage, and reverse polarity protection. The charger operates in Three modes – charge, storage, cycling.
During charging, real-time monitoring ensures the battery’s status is closely tracked, automatically ceasing charging when the battery reaches full capacity.
Grepow bring the new function of the battery cycling to the market, during cycling function, D1000 will based on the user setting to charge or discharge to the end voltage for each cell, when the charge operation done, D1000 charger will automatically re-charge battery back to the setting voltage as a fully discharge and charge cycle, and cycle numbers could be set up by users.
Features:
- Intelligent recognition with G-Tech technology
- Dual channels with fully independent functions
- Compact and flexible, with 25A charging current
- LiPo/LiHV 1-7S (supports G-Tech/Non G-Tech battery)
- Cycling function support users setting up.
Specifications:
- Input voltage: AC 100-240V 50/60Hz
- Output voltage: DC 0~32V
- Charging current: Max 25A*2
- Charging current in storage mode: 25A*2
- Discharge current in storage mode: 6A*2
- Maximum charging power: 500W x2
- Maximum charging power in storage mode: 500W x2
- Maximum discharge power in storage mode: 70W*2
- Working temperature: 0~60°C
- Storage temperature: -20~60°C
- Dimensions: 186x174x95mm
- Weight: about 1.7Kg
- Supported battery type and number of cells: LiPo/LiHV 1-7S (Support G-Tech smart balance connector)

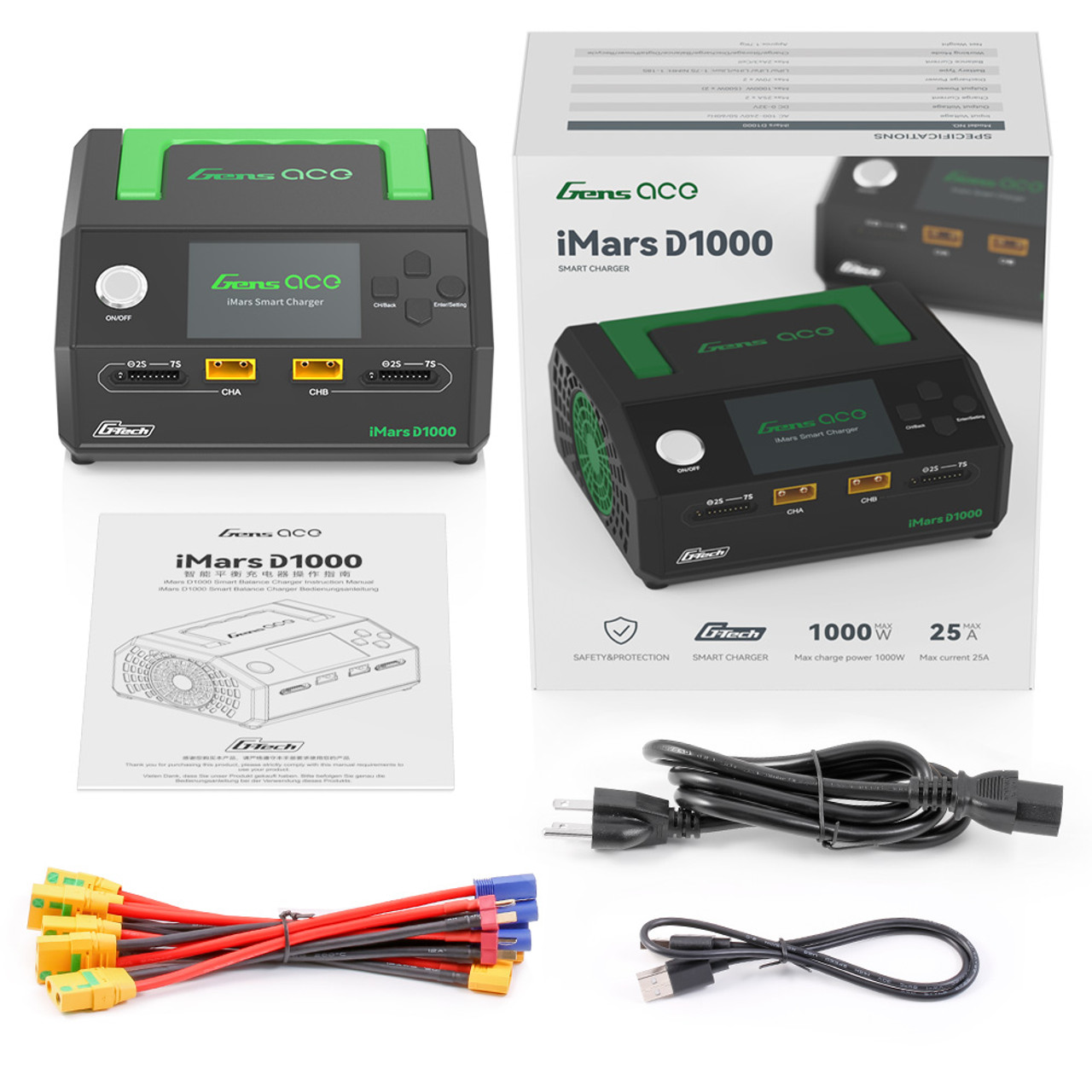

- Accessories Included: AC Input Cable / USB Cable
Our Advantage
1.Your orders will be dispatched via FedEx or UPS from the USA directly.
2.Fast shipping and excellent local after-sale service guaranteed in the USA.
3.Service-priority in the online shop, like the long warranty period and the lower price.
4.Energy Density:Specially adapted to each UAV type and RC car/boat/heli type. Very High according to capacity/weight. In fact, we are specialists in High Power Lipo Batteries. It is our unique technology, the highest power of our battery is 100C. Another technology is our batteries are able to be stably discharged simultaneously.
5.Low IR: Provides stable voltage until the end of your mission.
6.Safety: Gens Ace and its’ partners fulfill the ISO9001, ISO14001, standards.
7.See the battery instruction to the link: Lipo Battery Guide
