Description
The Gens ace Imars Mini Charger is an Intelligent Charger designed for the Gens ace G-Tech smart battery, which is also compatible with non-smart batteries.
It is the first member of the Gens ace G-Tech Smart Eco, when the Gens ace G-Tech battery is connected to the Imars Mini charger, the charger will automatically identify the battery type, voltage through the smart balance connector, and charging current recommended by the battery manufacturer. The charger will start charging in 5 seconds automatically after G-Tech smart battery is connected.
For non-smart batteries, it’s necessary to manually select the battery type and the required working mode to get it started. The charger can intelligently adjust the charging current according to the charging voltage flow of the battery.
Release Video:
Product Features:
- Charges 2-4S LiPo, LiHV, LiFe, and 2-12S NiMH batteries.
- Intelligently recognizes G-Tech smart battery info through an IC chip for safe and easy charging.
- Automatic storage function, it’s the smallest charger with auto storage.
- New interface design and increased balance connector durability.
- Small & lightweight, portable design.
Product Specifications:
- Max. Charge Power: 60W
- Charge Current:1-5A, Max. 5A(Auto Adjustment)
- Max. Storage Power: 3W discharge, 60W charge
- Input Voltage: 5-20V
- Max. Input Current: DC 3A
- Balance Current: 0.4A/Cell X 2
- Input Port: QC/PD/BC1.2/USB-C V1.4/SDP/CDP/DCP/Apple 5V/2.4A(Does not support 5V/1A adapter input)
- Abnormal Battery Voltage Alarm: Yes
- Supported Battery Types: Lipo/LiHv/LiFe(2~4S), NiMH(2-12S)
- Working Temperature: 0℃~40℃
- Storage Temperature: -20℃~60℃
- Dimension: 85*55*21mm
- Net Weight: Approx. 64g

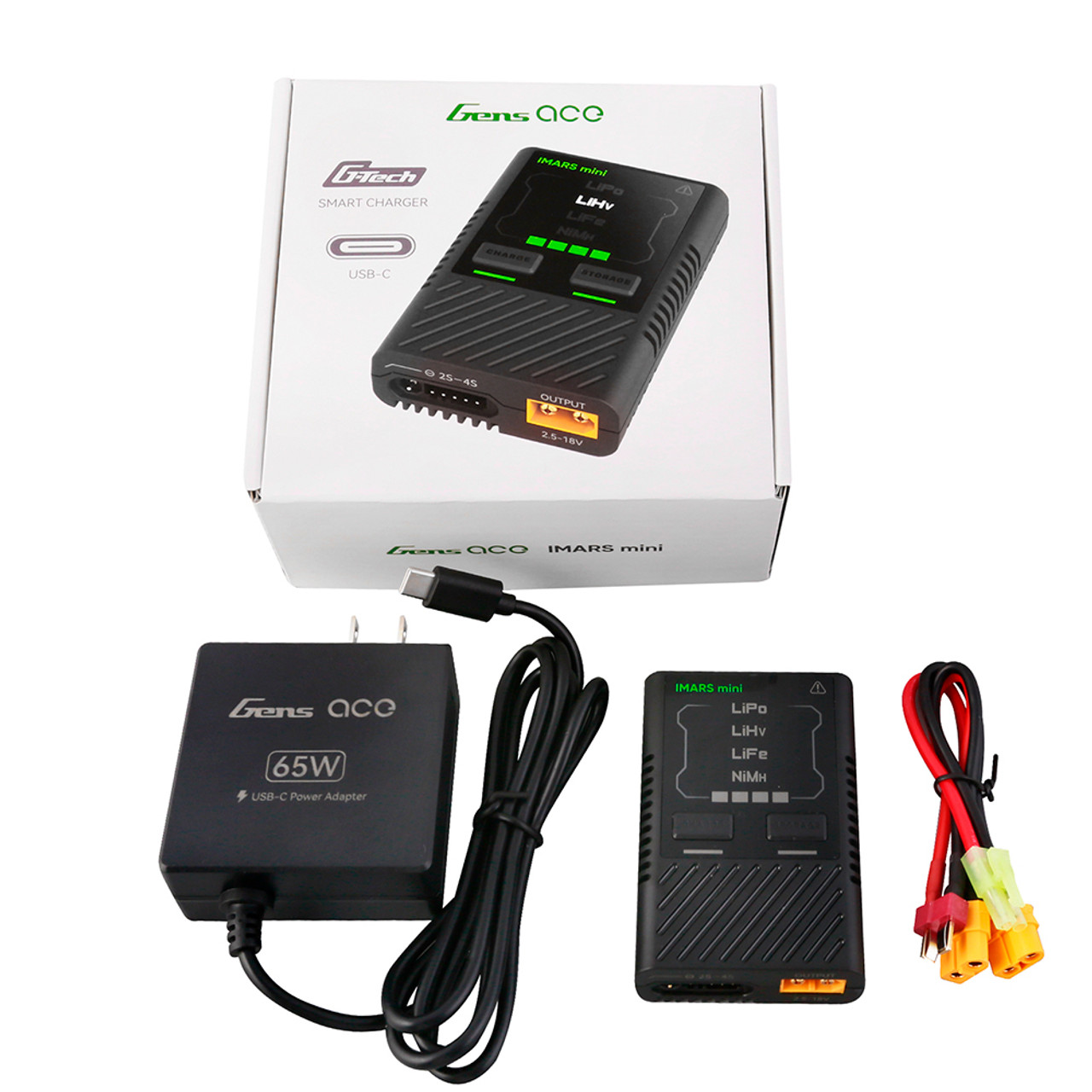

What’s in the Box?
- Imars Mini 60W Smart Charger * 1
- 65W power supply adapter with USB-C cable* 1
- XT60 female to Dean male adapter *1
- XT60U-F female to JST-62044 male adapter *1
- Product Manual *1
NOTE: This is the version including the USB-C power supply adapter. For the eco friendly version, click here; to purchase the USB-C power supply adapter only, click here.
More Lipo Battery Smart Chargers, please click here. The Europe/UK versions are available in our EU Stores.
FAQ:
Q: Why can’t I select the current setting on the new imars mini charger?
A: Our new imars Mini Charger automatically configures itself to the connected battery whether it’s G-TECH or NOT. Imars Mini charger uses proprietary software to detect the size of the battery and charge using the correct current settings. Imars Mini will normally charge at a 1C to 1.5C rate up to 60 watts of total power.
Our Advantage:
1.Your orders will be dispatched via FedEx or UPS from the USA directly.
2.Fast shipping and excellent local after-sale service guaranteed in the USA.
3.Service-priority in the online shop, like the long warranty period and the lower price.
4.Energy Density:Specially adapted to each UAV type and RC car/boat/heli type. Very High according to capacity/weight. In fact, we are specialists in High Power Lipo Batteries. It is our unique technology, the highest power of our battery is 120C. Another technology is our batteries are able to be stably discharged simultaneously.
5.Low IR: Provides stable voltage until the end of your mission.
6.Safety: Gens Ace and its partners fulfill the ISO9001, ISO14001, standards.
7.See the battery instruction to the link:Lipo Battery Guide
WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
