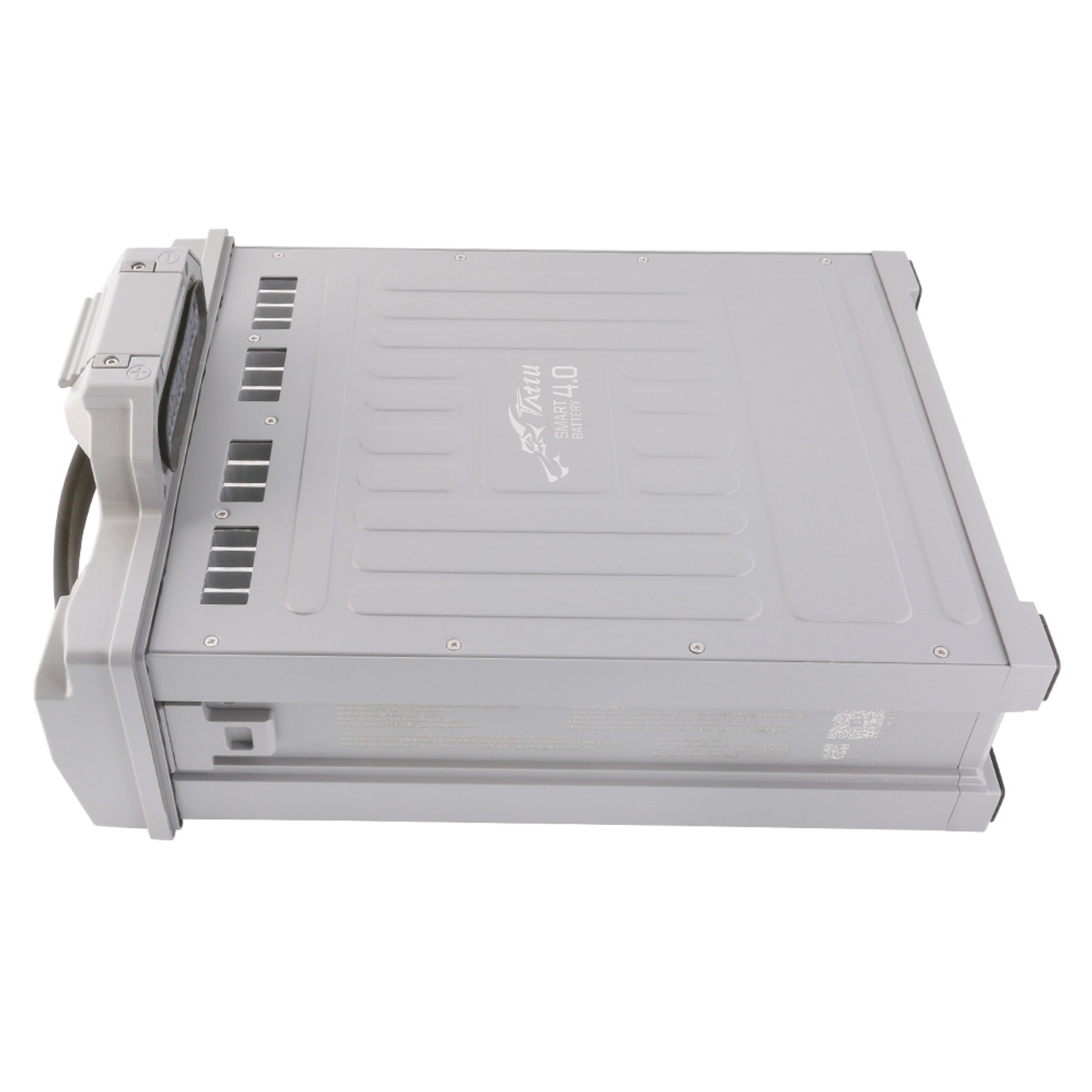

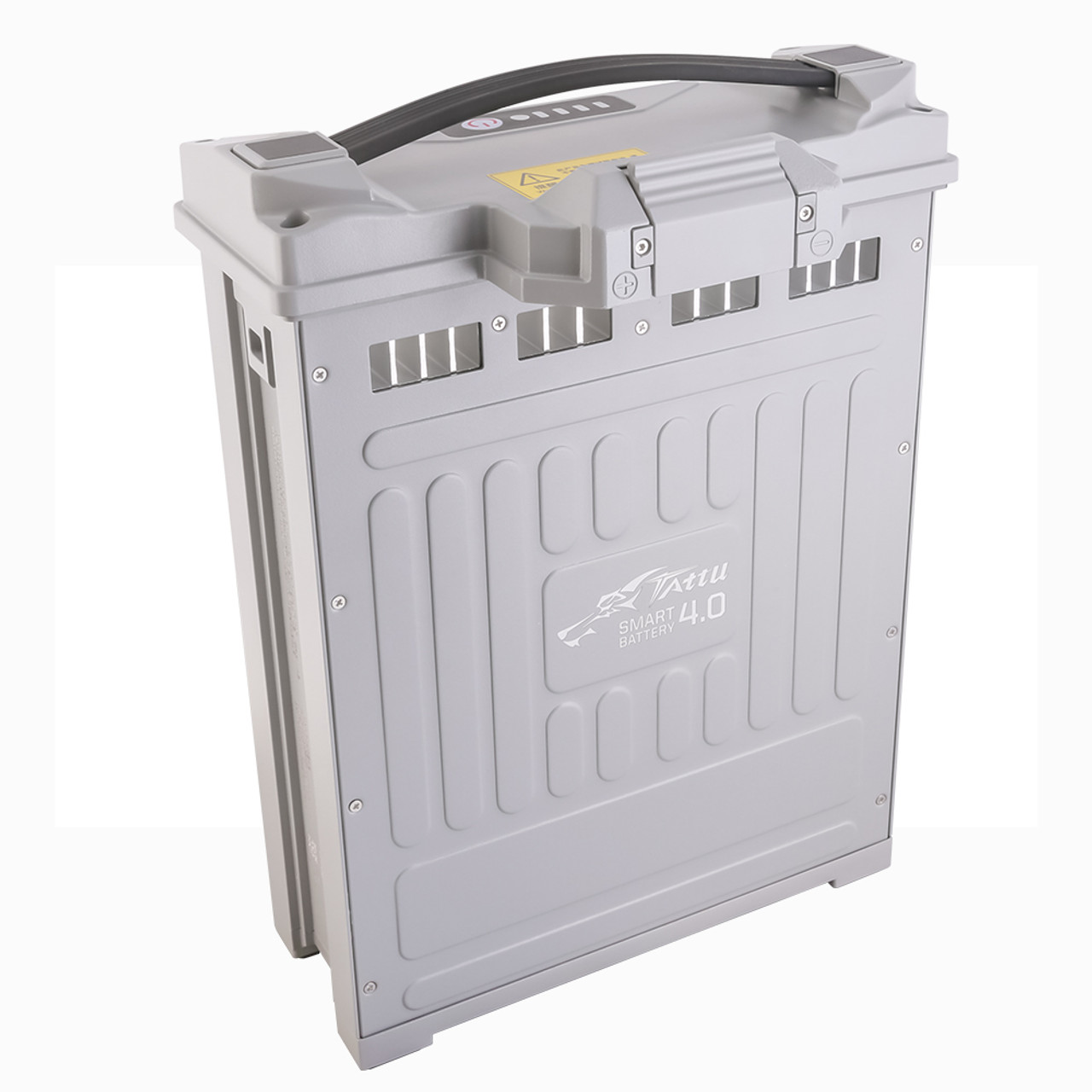

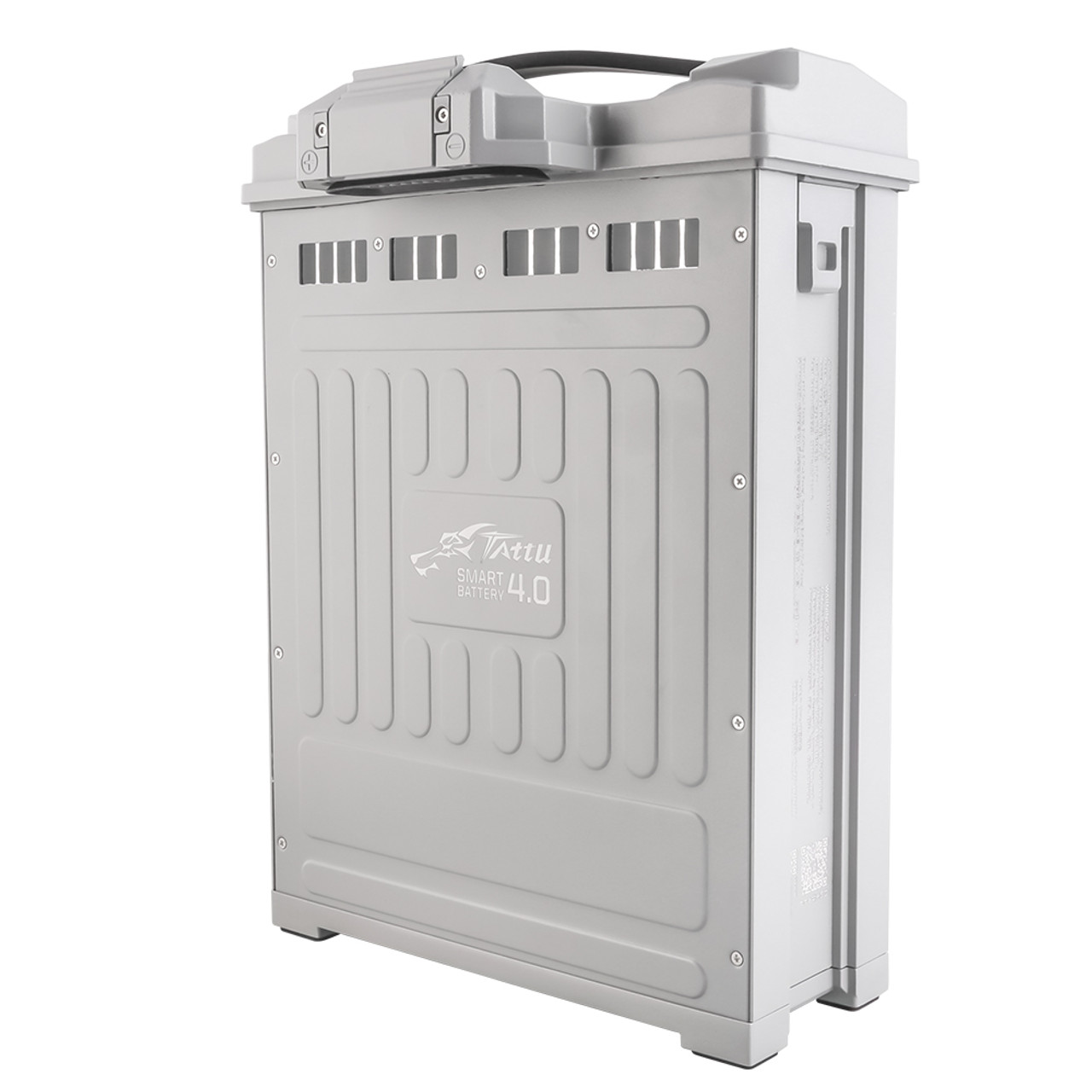

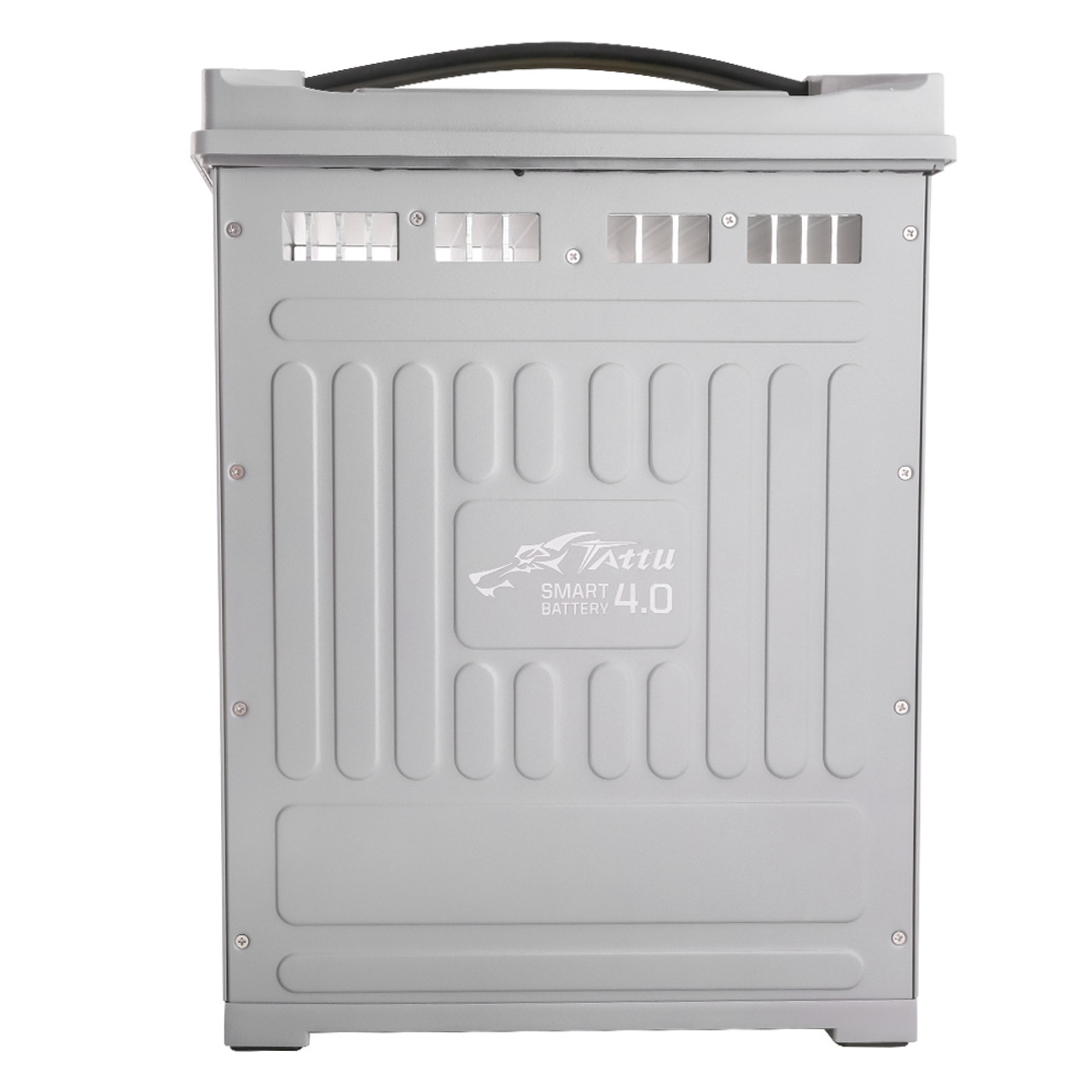

Tattu 4.0 20000mah 53.2V 14S1P 25C Lipo Smart Battery Pack with ACES Plug

Purchase this product now and earn 939 Points!

USD $939.56

TA-4.0-25C-20000-14S1P-53.2V-ACES

Out of stock

Earn 100 points for reviewing this product

SKU: TA4TAS20K1425X Category: Tags: ,

Description

The Tattu 4.0 14S is a new upgraded generation smart drone battery with optimized plug & play installation, adopts high energy density cell and advanced BMS, specially designed for a heavy payload drones, 30-50L Agricultural drones, supports max 270A continuous discharge current and 5C fast charging with the TA9000 Pro Charger.

Integrates a high-precision BMS with integrated Bluetooth, and provides comprehensive safety features, including Drone CAN protocol accessible, Bluetooth connection function, SOC indication, fault self-diagnosis function, self-balancing, smart storage, Log Storage Function, Cycle statistics function, Software Upgrade Function, automatic charging current adjustment and protection function, ensuring a safe flight every time. The on/off function can prevent sparking when the battery is turned off before connecting any device.

The structure has been comprehensively upgraded to enhance heat dissipation, ensuring efficient cooling. The TATTU 4.0 version eliminates the need for a USB communication, instead integrating a Bluetooth module into BMS. This enables real-time monitoring of battery status and data, providing a seamless human-battery interaction experience. Additionally, the handles have been optimized to improve the overall design and aesthetics, enhancing the sense of style. Furthermore, the upgraded structure effectively reduces the risk of corrosion-related short-circuits caused by exposure to humidity or liquids, thereby enhancing safety and reliability.

By connecting to the Tattu Bluetooth App, users can perform battery software upgrades, and access real-time battery information and historical logs easily.

Specifications:

Minimum Capacity: 20000mAh

Configuration:14S1P

Nominal Voltage: 53.2V

Power: 1064 Wh

Net Weight(±350g): 7900g

Dimensions: 261mm Length x 237mm Width x 92.5mm Height

Discharge Plug: ACES 59615-0149D001

Max Continuous Discharge Current: 180A

Peak Discharge Current: 250A ≤ 3S



Download Bluetooth Guide:

Notice:

If you need the similar smart lipo battery, please check the link below.

  • Tattu 22000mAh 6S 25C 22.2V Lipo Battery Pack with AS150 +XT150 plug
  • Tattu 22000mAh 14.8V 25C 4S1P Lipo Battery Pack with NA plug
  • Tattu plus1.0 16000mah 44.4V 12S 15C Smart Battery with AS150U plug

 You can also check more other drone lipo batteries, Tattu Chargers.

Our Advantage:

1. Your orders will be dispatched via FedEx from the USA directly.
2. Fast shipping and excellent local after-sale service guaranteed in the USA.
3. Service-priority in the online shop, like the long warranty period and the lower price. We do offer a 90-day-warranty after your order date.
4. Energy Density: Specially adapted to each UAV type and RC car/boat/helicopter type. Very High according to capacity/weight. In fact, we are specialists in High Power Lipo Batteries. It is our unique technology, the highest power of our battery is 100C. Another technology is our batteries are able to be stably discharged simultaneously.
5. Low IR: Provides stable voltage until the end of your mission.
6. Safety: Gens Ace and its’ partners fulfill the ISO9001, ISO14001, standards.
7. See the battery instruction to the link: Lipo Battery Guide.

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Not Find You Need? Try Our Customized Service; Professional Customized of UAV Drone Batteries and Battery Solutions.
