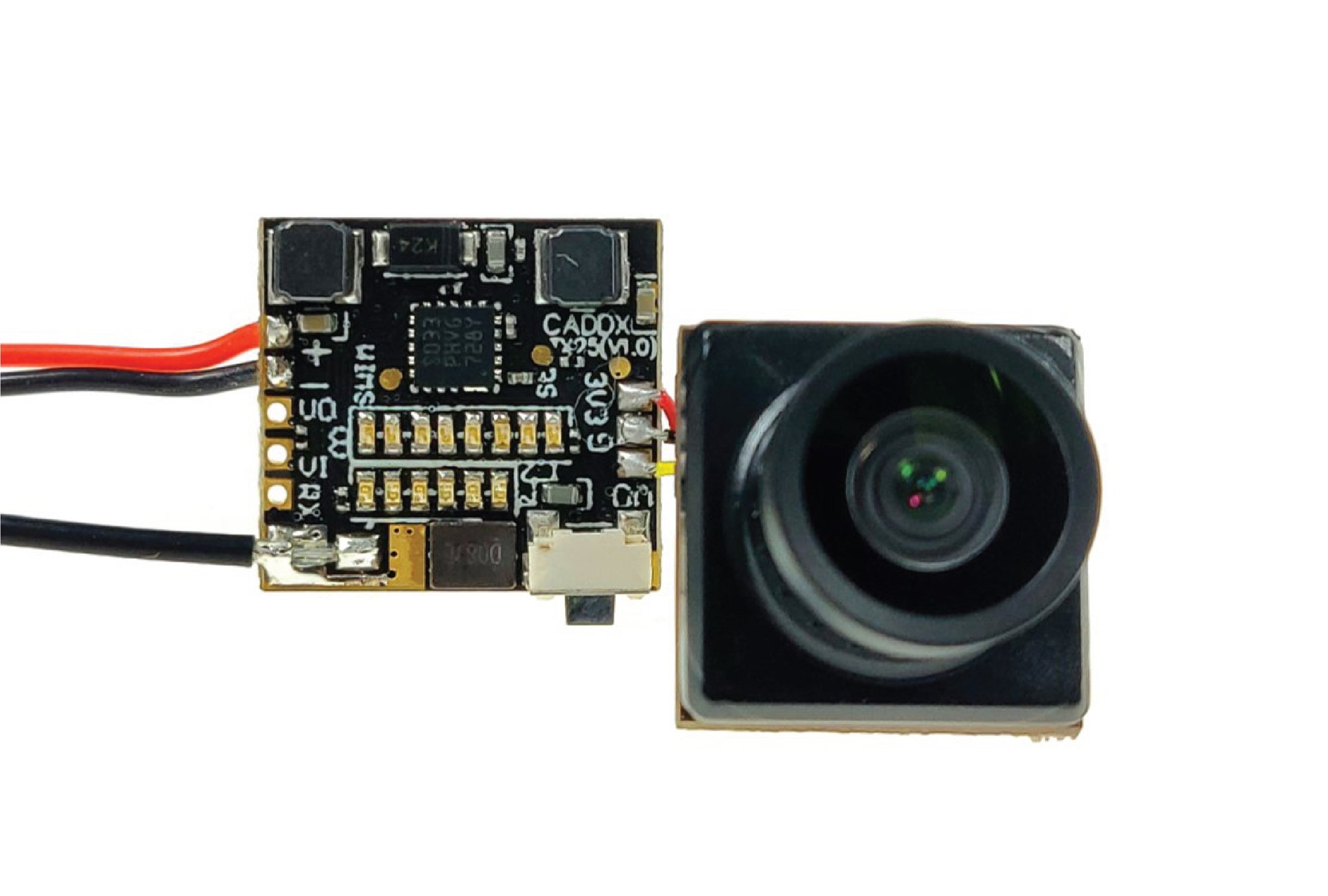

Caddx Firefly – Micro FPV Camera with VTX

USD $24.99

Earn up to 24 Points.

This is the first micro-sized FPV camera with 1/3″ CMOS Sensor, VTX built in, high Resolution 1200TVL, 16:9 / 4:3 aspect ratio, WDR, 5362MHz-5945MHz frequencies and only at 4.2grams.

Clear

StumbleUpon

Earn 100 points for reviewing this product

SKU: N/A Category: Tag:

Description

Specification

Model FireFly + VTX1
Camera: Turbo FireFly
Image Sensor 1/3″ CMOS Sensor
Horizontal Resolution 1200 TVL
TV System NTSC / PAL optional
IMAGE 16:9 / 4:3 optional
Synchronization Internal
Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio >52dB (AGC OFF)
Video Output CVBS
Lens 2.1mm
Min. Illumination [email protected]
Auto Gain Control YES
BLC YES
WDR Global WDR
DNR 2 DNR
Dimensions 14mm*14mm*16mm
Wide Power Input DC 3.3-6V
Work Temperature -20℃~+60℃
Work Humidity 20%~80%
Weight 4.1g (Camera + VTX)
VTX1
Frequency band 5362~5945MHz
Channel customer 48
Modulation type FM
Channel SEL. Touch Switch

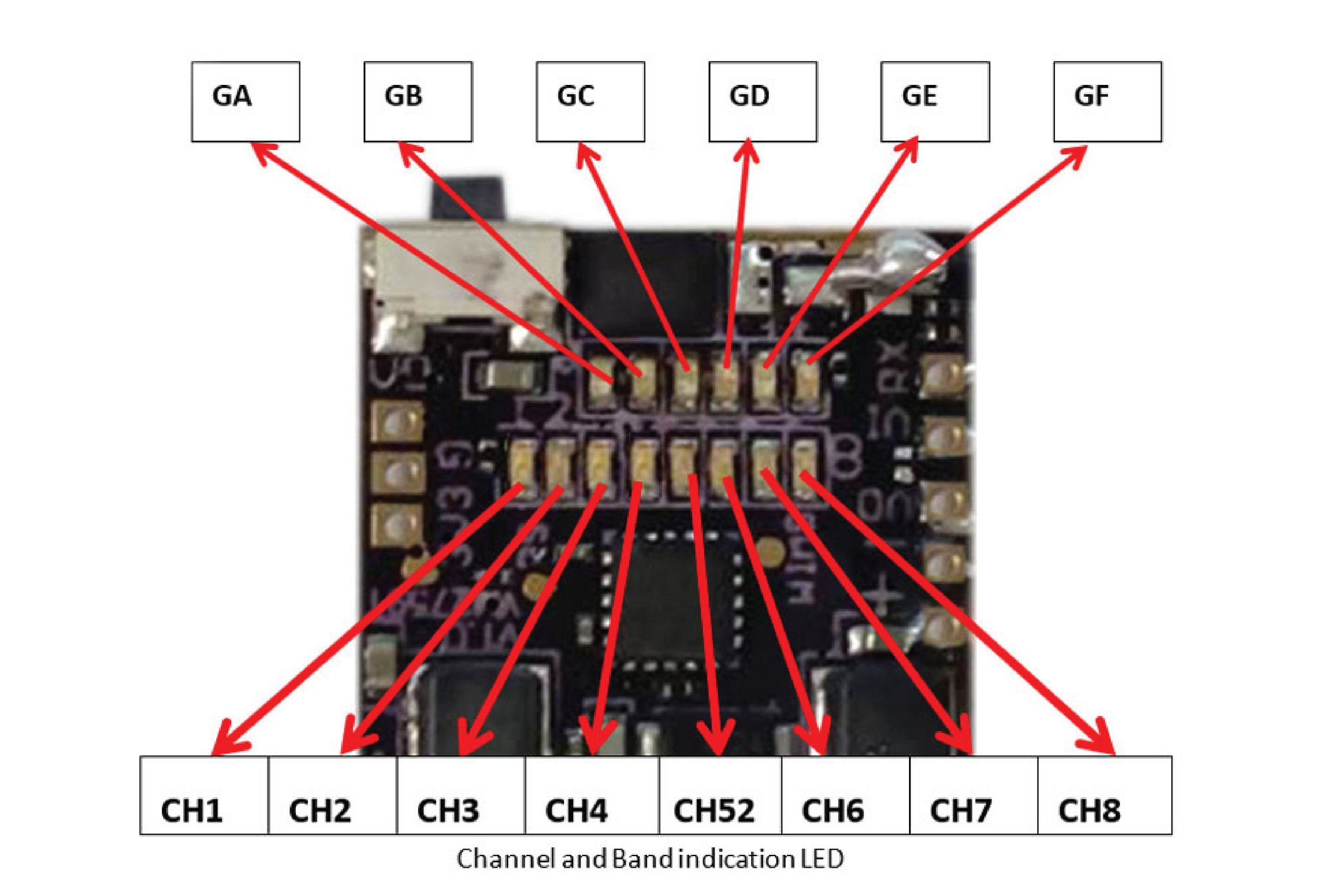

Channel Indicate CH1~CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6 LEDS
Transmit power 13±1dBm
Frequency control PLL
All harmonic Max -50dBm
Frequency Stability ±100KHz (Typ.)
Frequency precision ±200KHz (Typ.)
Channel Carrier error 1dB
Antenna Port 50 Ω
Power consumption 140±[email protected] DCIN
Supply Voltage 2.9-5.5v
Operating Temperature -10℃~+60℃
Profile dimension 15mmX14mm

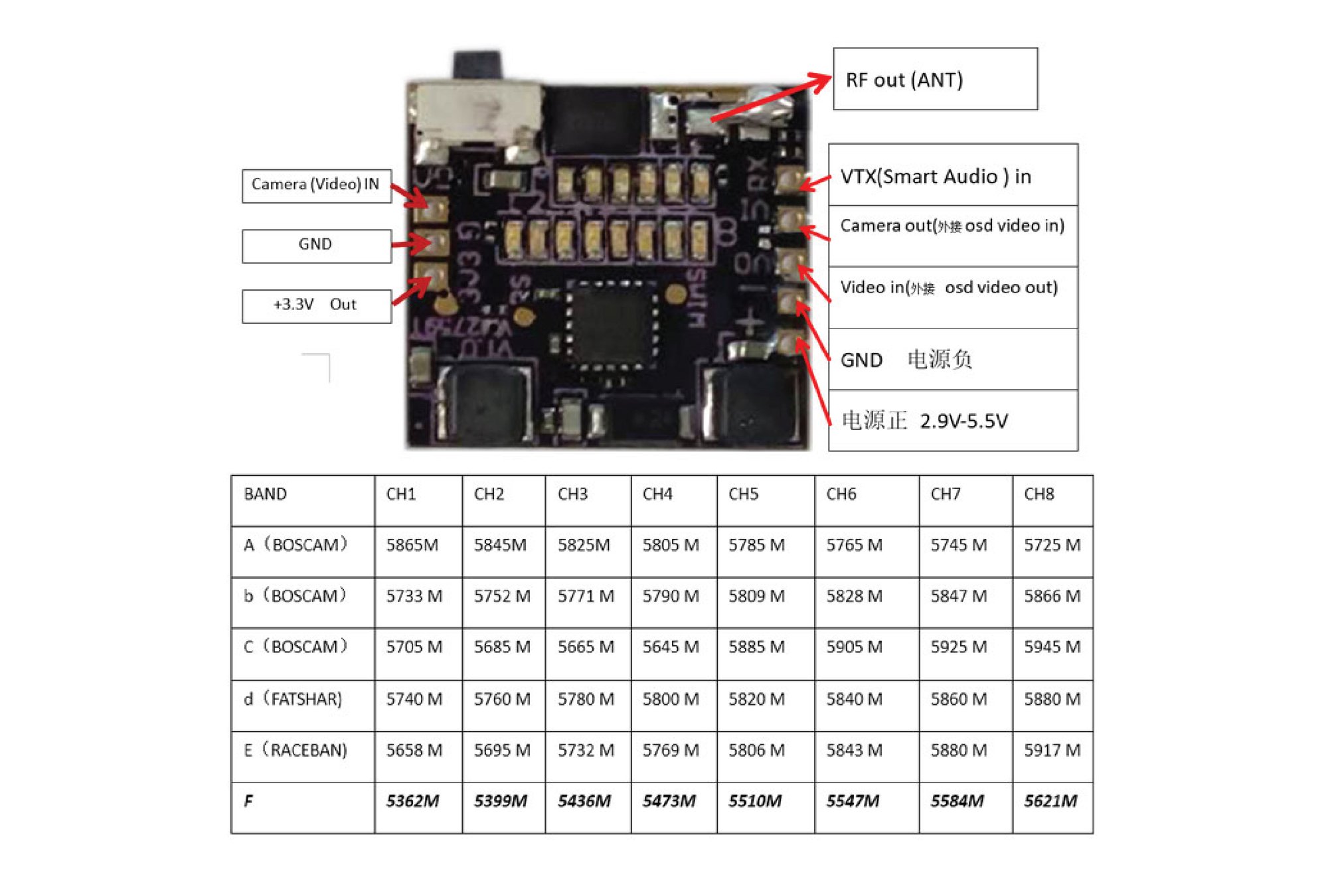

Frequency Table

Package Includes

1 x Camera with VTX
