CM275T-OV 5.8G 25mW 48CH Mini FPV Camera with VTX

Purchase this product now and earn 27 Points!
(1 customer review)

USD $27.59

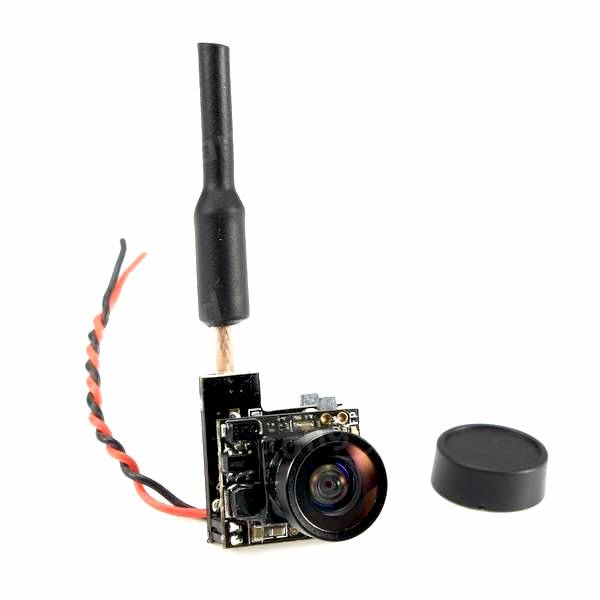

CM275T is one of the lightest and smallest all in one (AIO) 600TVL resolution FPV cameras with 25mW VTX.
This amazing FPV Camera is perfect for nano/micro FPV racing quadcopters and it is perfect match for Tiny Whoop.

New version uses OV chip with high 728H X 560V resolution, wide angle, and much more clear image as well as with support for OSD

Out of stock

Earn 100 points for reviewing this product

SKU: 1202 Category:

Description

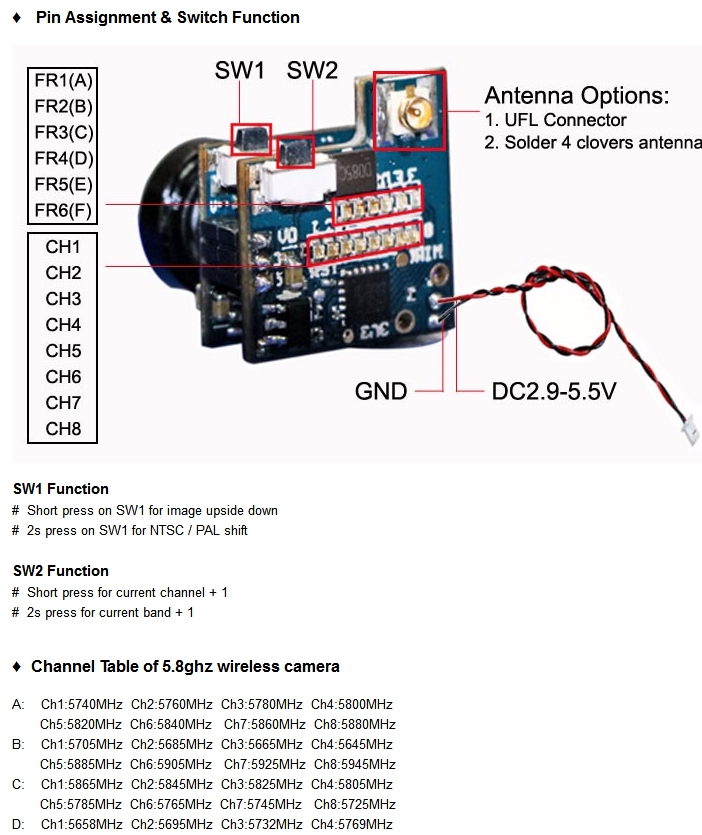

Manual


CMT275T manual

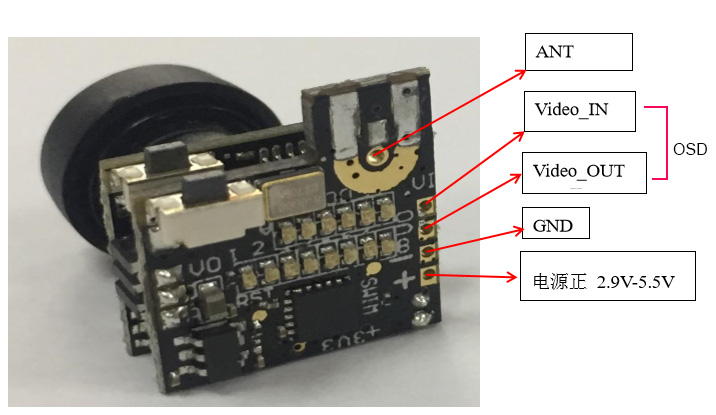

OSD wiring diagram

cm275t osd wiring diagram

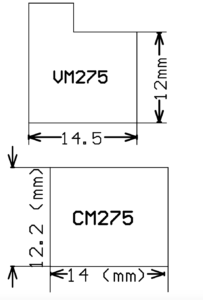

Dimensions


CMT275T dimensions

Features

  • Item name:CM275T 5.8G 25mW 48CH NTSC/PAL Mini VTX 600TVL FPV Camera
  • Suitable for: DIY Micro FPV Racer
  • Weight:3.35g
  • Electrical Characteristics:
  • Frequency band:5362-5945 MHz
  • Channel customer:48
  • Modulation:FM
  • Channel SEL.:Touch Switch
  • Channel Indicate:CHI-CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6LEDS
  • Transmit power:13 ±1dBm
  • Frequency control:PLL
  • All harmonic:Max-50dBm
  • Frequency Stability: ±100KHz(Typ.)
  • Frequency precision: ±200KHz(Typ.)
  • Channel Carrier error:1dB
  • Antenna Port:50Ω
  • Input format:NTSC/PAL
  • SENSOR:PAL:720X540/NTSC:640X480 1/4″
  • LENS ANGEL:H:120°/V:100°
  • Base -band interface:P1.27*2
  • Power consumption:200~215MA@5V DCIN
  • Supply Voltage:2.9-5.5v
  • Operating Temperature:-10℃~+60℃
  • Profile dimension:14.5mmX12.2mm+14.5mmX12mm

Package Includes

  • 1 x Camera

1 review for CM275T-OV 5.8G 25mW 48CH Mini FPV Camera with VTX

  1. Michael (verified owner) –

    It’s slightly smaller than other similar AIO cameras, so it fits better than others on the Nano X.
