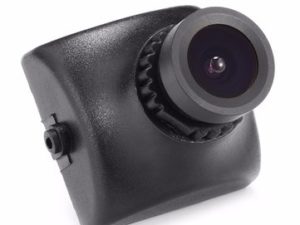

DIATONE 600TVL Miniature Camera – Black

Purchase this product now and earn 8 Points!
(1 customer review)

USD $8.00

Very nice little camera from Diatone which is a great choice for micro frames. All FlexRC frames support it!

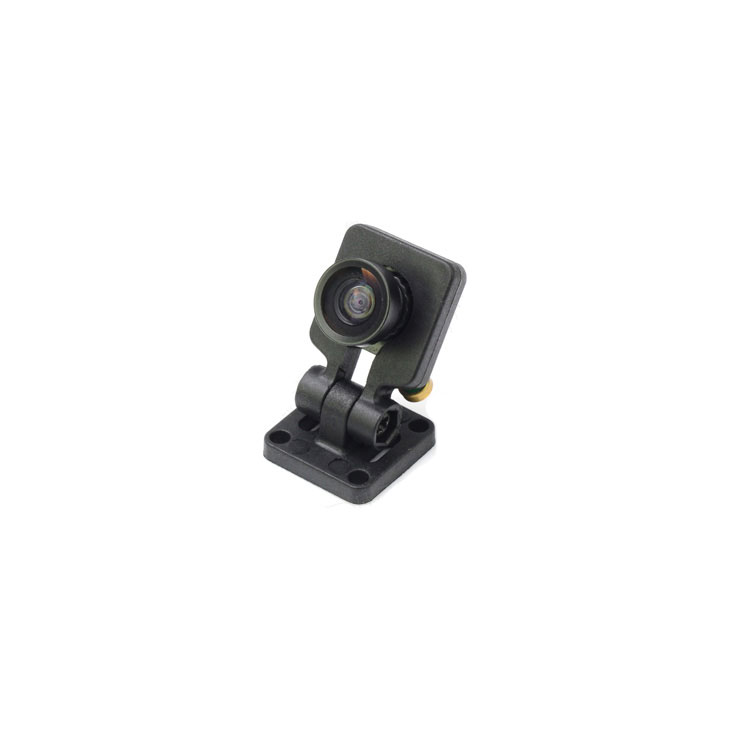

It comes with black plastic camera holder

FPV camera

Resolution: 1280 * 960
Resolution: 600TVL
Camera Dimensions: 12.5mm * 12.5mm * 17mm
Illumination: 0.5LUX
Format:PAL / NTSC
Power supply range: 3.7-5V 100mA
Audio Lens: Wide-angle 1.8mm (170 degree)

Low Stock

Earn 100 points for reviewing this product

SKU: 1203 Category:

Description

Very nice little camera from Diatone which is a great choice for micro frames. All FlexRC frames support it!

Specification:

FPV camera

Resolution: 1280 * 960
Resolution: 600TVL
Camera Dimensions: 12.5mm * 12.5mm * 17mm
Illumination: 0.5LUX
Format:PAL / NTSC
Power supply range: 3.7-5V 100mA
Audio Lens: Wide-angle 1.8mm (170 degree)
Image sensor:1/4 CMOS image sensor
Sensitive area: 3.5964mm x 2.7084mm
648 pixels (horizontal) × 488 (vertical) 648 (horizontal) × 488 (vertical)
Scanning Frequency Horizontal: 15.625KHz
Vertical: 50Hz
level: 15.7343KHz
Vertical: 60Hz
Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
SNR ≥48dB (AGC OFF)
Minimum illumination : 0.1 Lux / F1.2
Composite video signal :1.0Vp-p 75Ω
Standard Lens :1.8 mm
Specifications PCB: 20mm*20mm
Power: DC5V ± 10% 70mA ± 10%
Operating temperature :-10 ℃ ~ 60 ℃ RH95% Max

Camera Holder

Brand: Diatone
Item name: Universal Mini Camera Lens Adjustable Holder
Size: 15.5×15.5×26.5mm
Color: optional blue, green, orange and black.

Package includes

1 x 600TVL Wide Angle Lens FPV Camera
1 x Diatone Universal Mini Camera Lens Adjustable Holder

1 review for DIATONE 600TVL Miniature Camera – Black

  1. Chris (verified owner)

    This camera works perfect with the mini owl. It’s small and lightweight. The picture is great for such a small piece!

    • Michael (verified owner)

      Very reasonable image quality for something so small and light. Works perfectly in the Owl. Sometimes the lens is a bit loose, which allows it to spin itself out of focus, but a drop of hot glue holds it.
