Frog – Micro Racing Quadcopter Frame

Purchase this product now and earn 20 Points!

USD $20.00

NEW EDITION Frog is a beautiful 122mm FPV brushless racing quadcopter frame designed to be used 3 inch propellers. Frog frame features integrated motor protections in the form of frog fingers. It supports a wide variety of equipment and great mounting options.

New edition includes all you need to be able to use all the latest electronics with it

Buy more and save

from 5 pcs.from 10 pcs.
USD $20.00 USD $19.00USD $20.00 USD $18.60

In stock

StumbleUpon

Earn 100 points for reviewing this product

SKU: 0602 Category: Tags: ,

Description

Frog is a beautiful 122mm brushless racing quadcopter frame designed to be used 3 inch propellers. Frog frame features integrated motor protections in the form of frog fingers. It supports a wide variety of equipment and great mounting options.

FEATURES

  • Integrated motor protection
  • Ability to use wide variety of motors like 1105, 1306, 1407
  • Ability to use virtually any micro VTX
  • Ability to mount battery on top or bottom
  • Many mounting holes which help to keep all wires together for the clean and beautiful build
  • 30.5×30.5 Mounting holes
  • Included integrated adapter to 20x20mm mounting holes
  • 12mm x 12mm camera mounting holes pattern, for camera holders like Diatone
  • Included 25mm tall mount for 19mm wide Micro FPV cameras such as Foxeer Predator

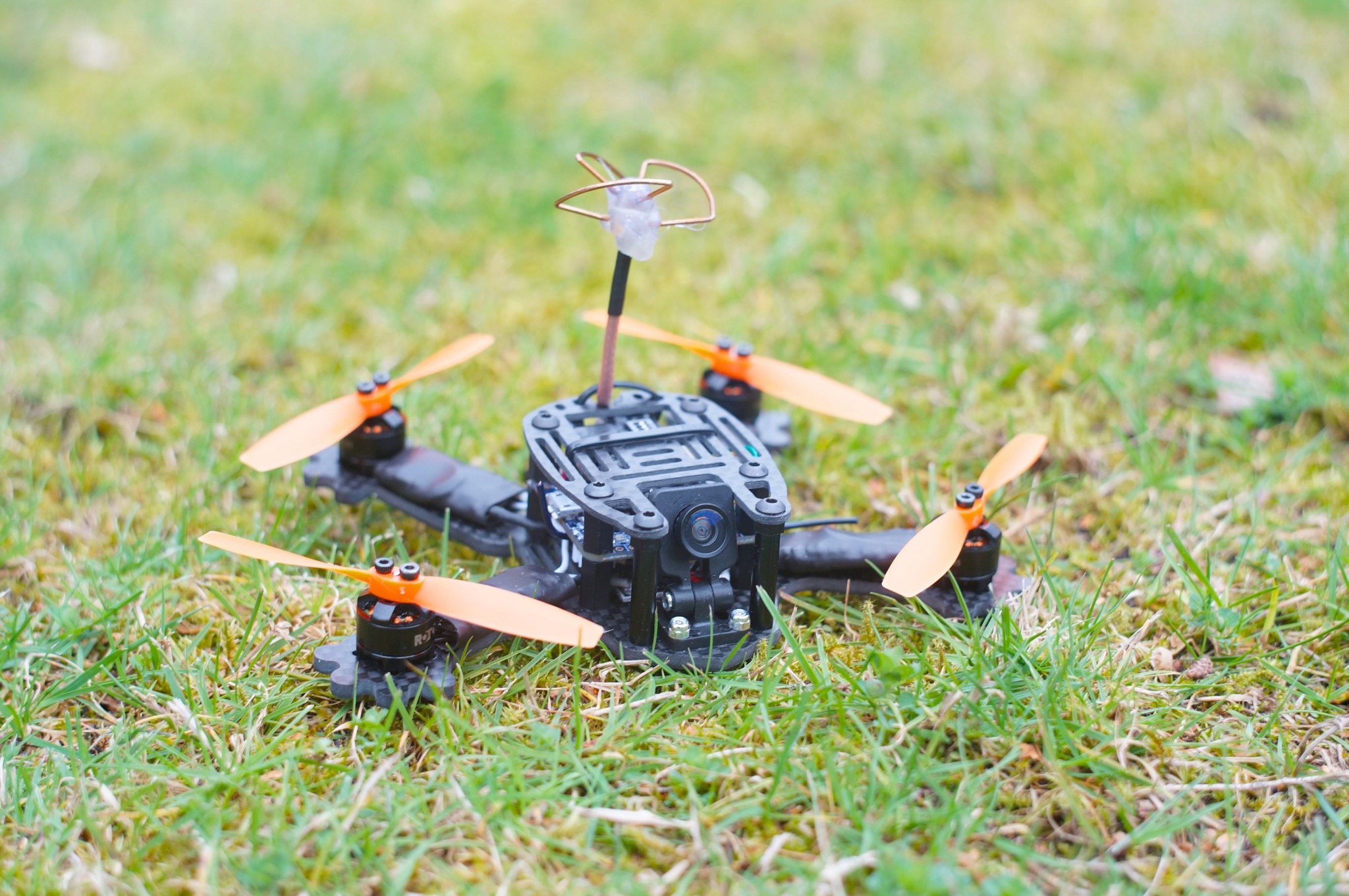

DSC05171

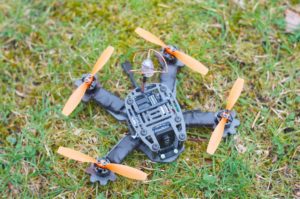

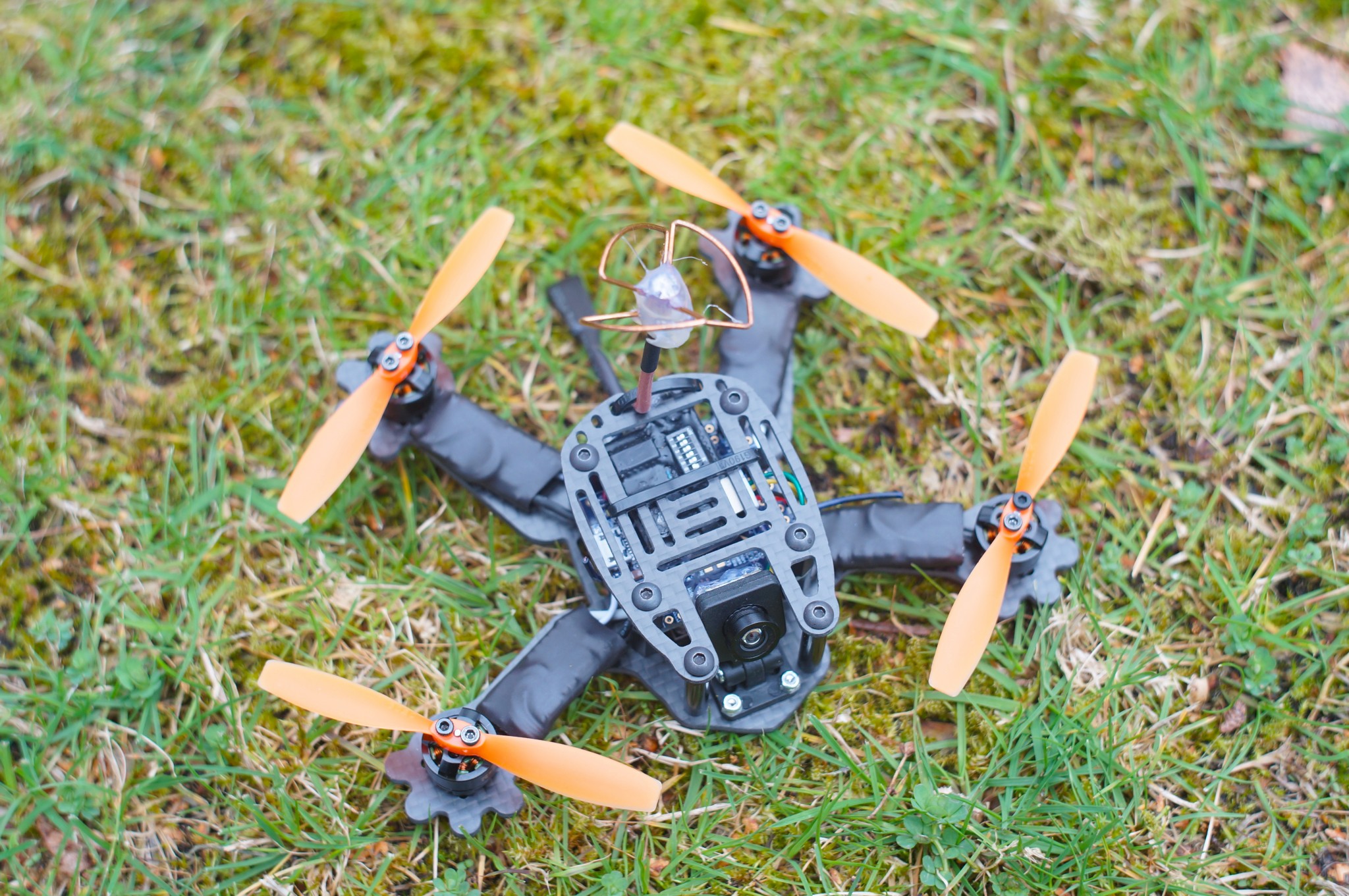

DSC05170

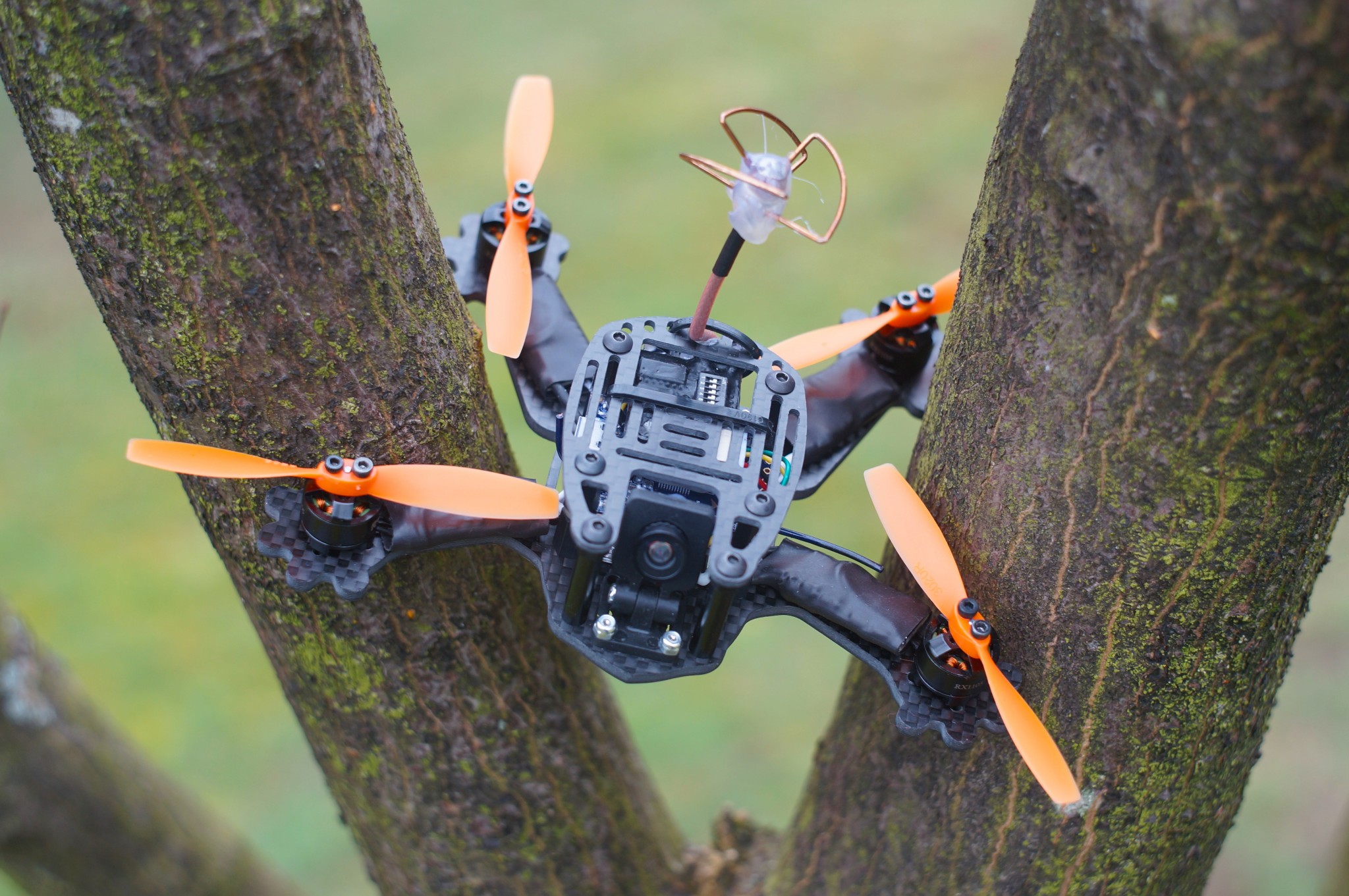

DSC05168

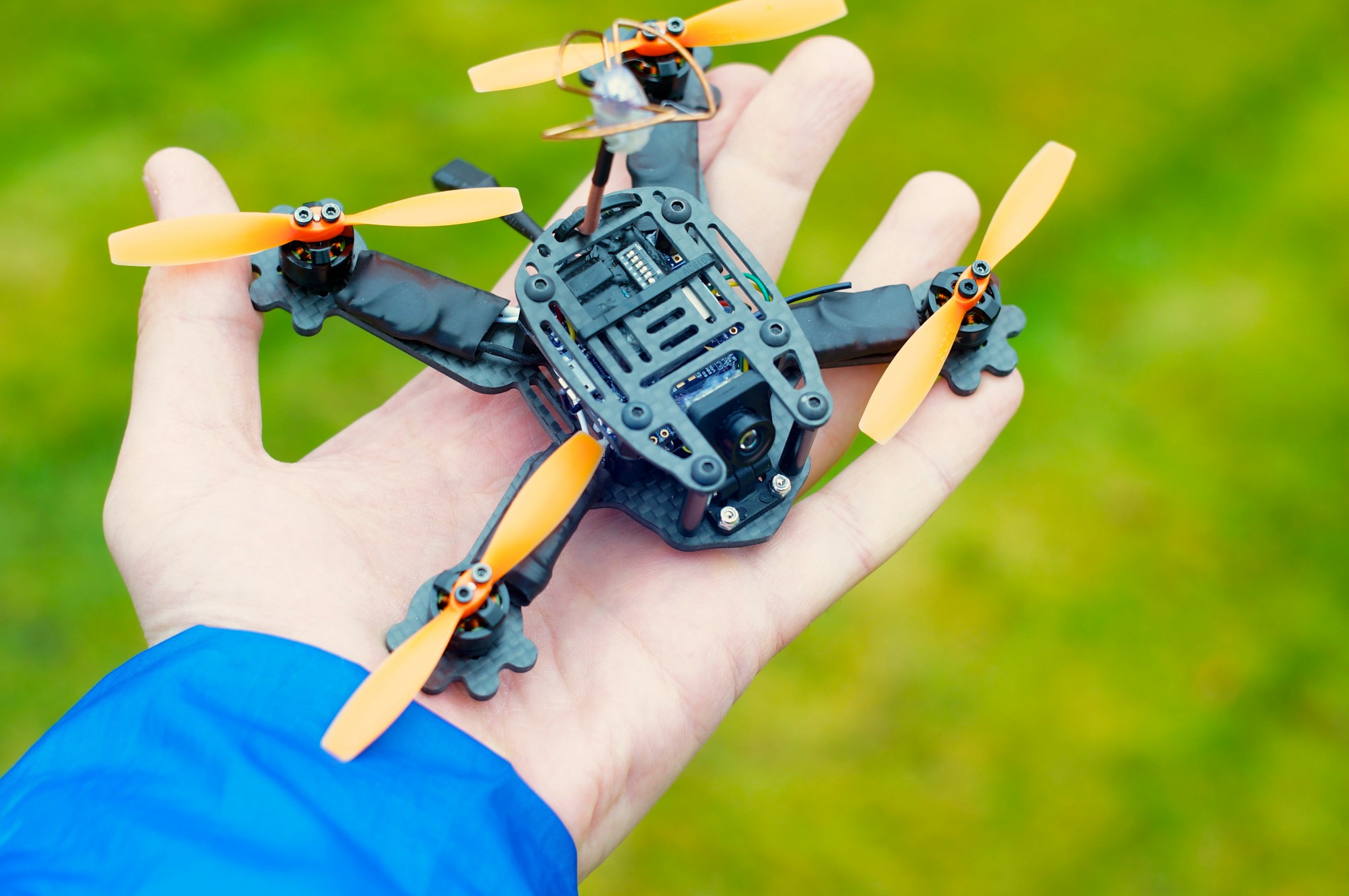

DSC05163

WHY DO YOU NEED IT?

  • Great looking frame
  • Very compact design
  • Ability to easily use wide range of equipment
  • Great protection for your motors
  • Optimal strength and performance

DESIGN CONSIDERATIONS

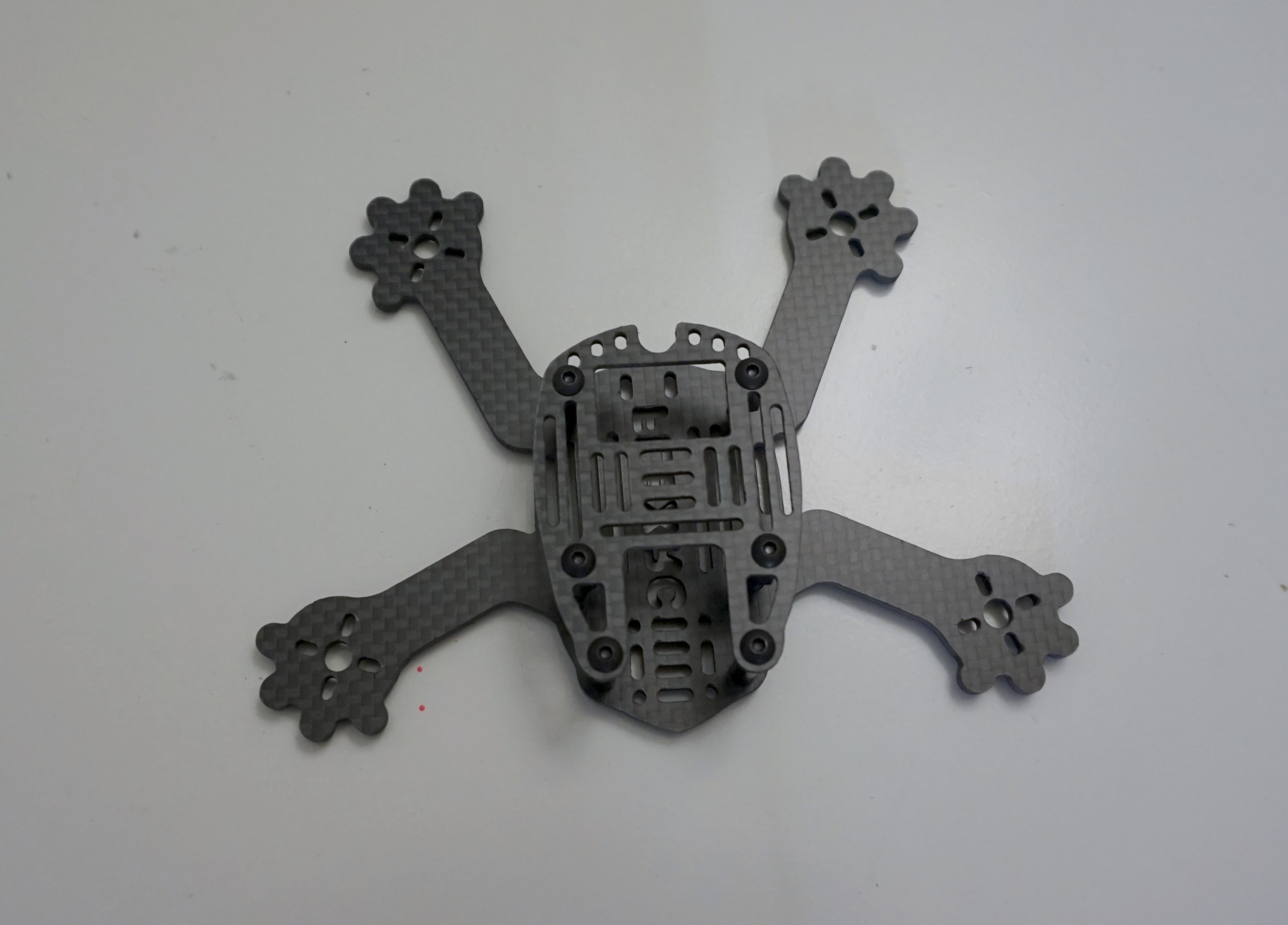

Frog Frame consists of two plates with the optimal pattern of mounting holes to allow flexibility of the choice of how you want to mount your equipment.

Battery strap mounting holes don’t stand in the way of PDB which allows you to use PDB without any spacers and keep profile of the frame as low as possible. It supports any motors from 1105 to 1407.

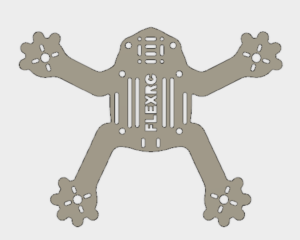

Bottom plate allows you to use Diatone camera mount with 12x12mm M2 holes pattern. It supports Flight Controller of the standard size as well as narrow FC. It has very good looking motor protection in the form of frog fingers.

Screen Shot 2016-03-16 at 16.11.01

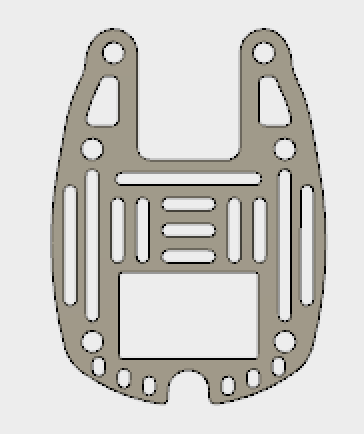

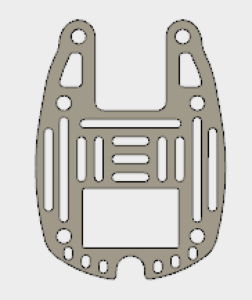

Top plate allows you to adjust camera angle, you can use different kind of straps to mount GoPro, Mobius or RunCam camera. You can mount battery on top as well. It allows you to screw FPV antenna or hold it with zip ties. It has VTX cut which would work for virtually any FPV transmitter.

Screen Shot 2016-03-16 at 16.14.22

VIDEOS

Package includes

Contents has been updated on 2018-05-10 to:

  • 5pcs of M3 25mm standoffs
  • 2pcs of M3 25mm camera mount
  • 1pcs of TPU front bumper
  • M3 30.5×30.5 to M2 20×20 adapter
  • 10pcs of M3 8mm screws

I’m constantly working on improving Frog frame design and your participation in the community of users can greatly help everybody, especially you!
Please check out Frog frame RCGroups thread
