Full Speed DSMX Nano Receiver

Description

Dimensions

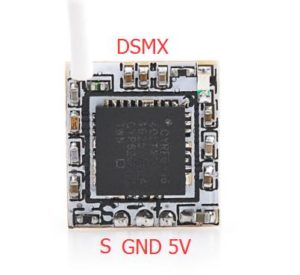

Wiring

Specifications

• Item Name：DSMX Nano Receiver
• Brand name：Full Speed
• Voltage ：5V

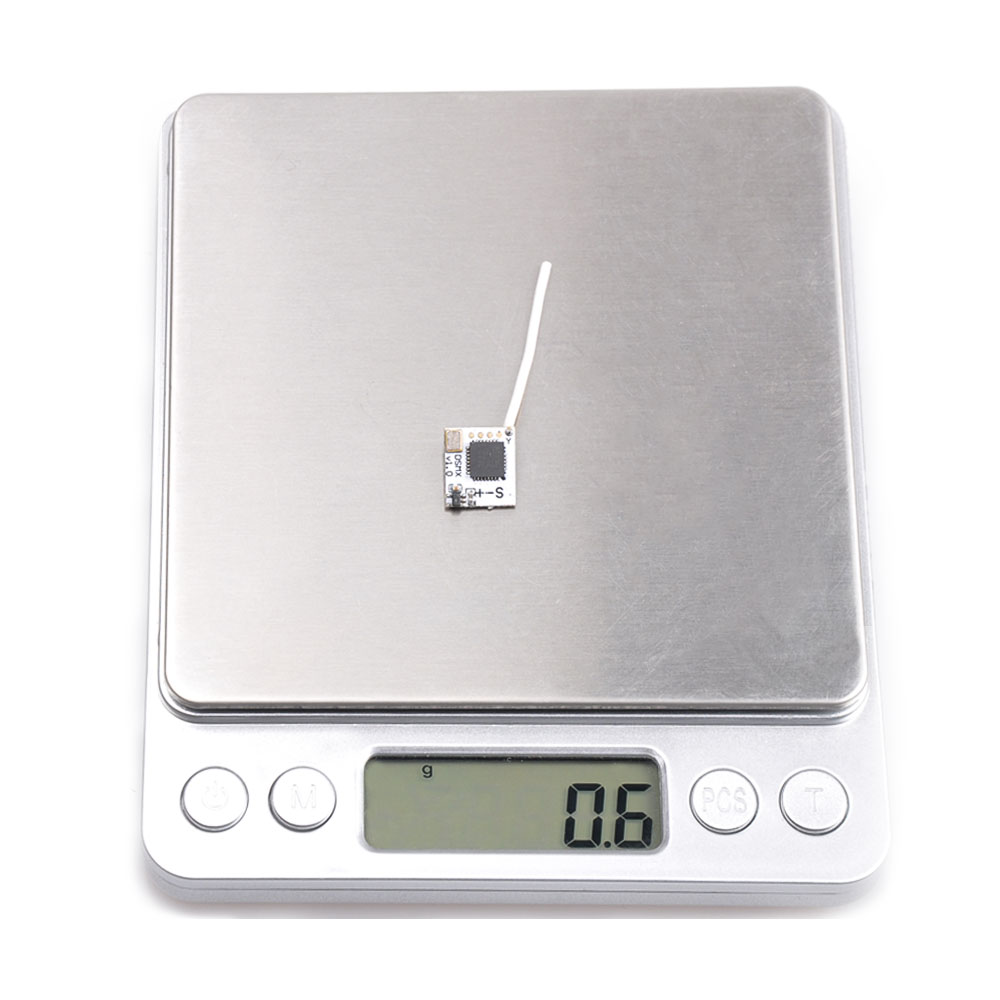

• Product weight：0.5g
• Signal system：DSMX( Support DSM2)automatic retrieval
• Band：2.4GHz
• Distance：300M+

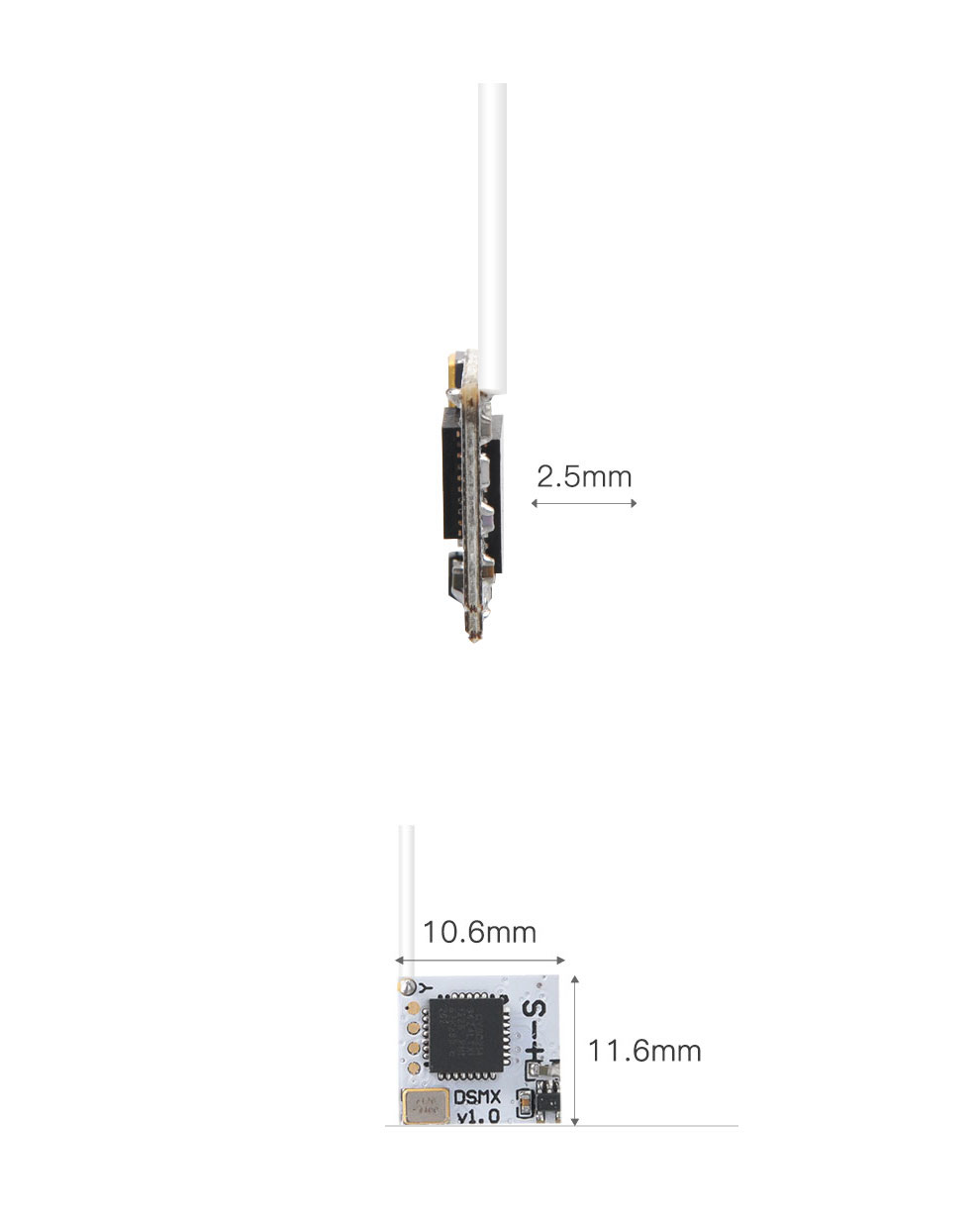

• Product size：10.6 x 11.6 x 2.5mm

How to bind

1. Connect the receiver to FC and run the BF.
2. Type: set spektrum_sat_bind=9 in CLI and save.
3. Disconnect the power. The light on the receiver will flash quickly, which means that it’s binding.
4. Turn on the radio and select bind mode. Wait a moment. Binding was successful if receiver will have solid LED light.
5. After binding. Type: set spektrum_sat_bind=0 and save.
