Full Speed FSD412 F4 Tower (FC+ESC) 5V2A BEC

Purchase this product now and earn 30 Points!

USD $30.00

FSD412 2S-4S 12A 16*16mm mount hole Stack

Models: Flight Tower, ESC speed controller, Flight Controller



Out of stock

Earn 100 points for reviewing this product

Categories: , , Tag:

Description

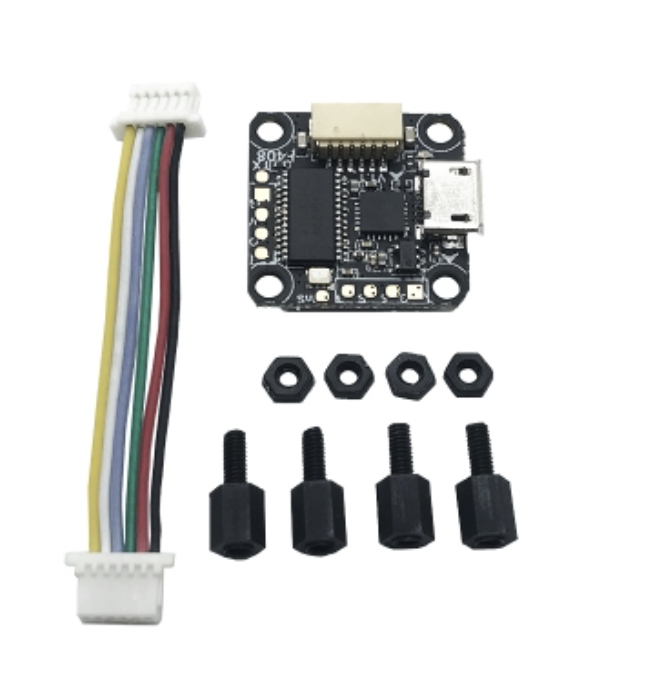

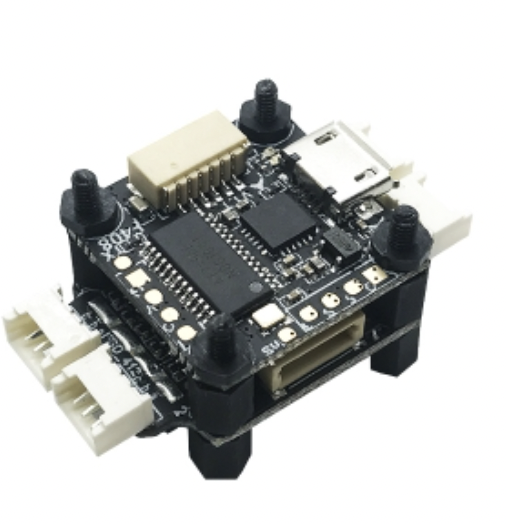

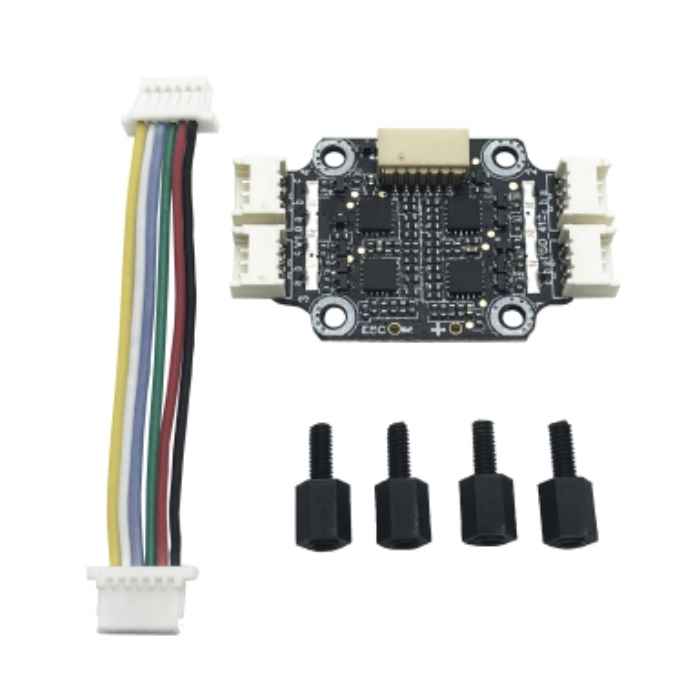

Full Speed FSD412 F4 Tower (FC+ESC) 5V2A BEC

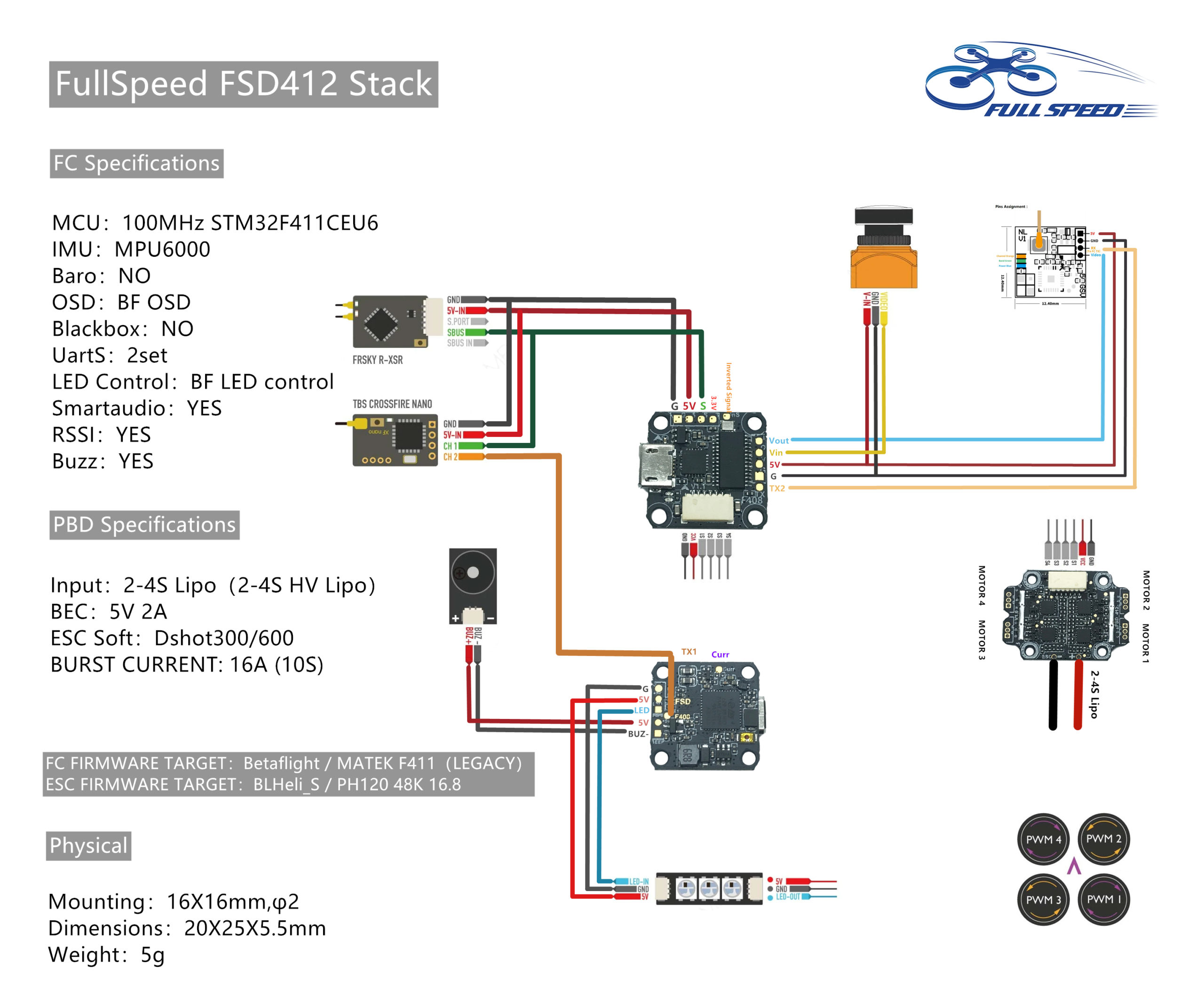

FullSpeed FSD412 Stack

FC Specifications

MCU：100MHz STM32F411CEU6
IMU：MPU6000
Baro：NO
OSD：BF OSD
Blackbox：NO
UartS：2set
LED Control：BF LED control
Smartaudio：YES
RSSI：YES
Buzz：YES

PBD Specifications

Input：2-4S Lipo（2-4S HV Lipo）
BEC：5V 2A
ESC Soft：Dshot300/600
BURST CURRENT: 16A (10S)



FC FIRMWARE TARGET：Betaflight / MATEK F411（LEGACY）
ESC FIRMWARE TARGET：BLHeli_S / PH120 48K 16.8


Physical

Mounting：16X16mm,φ2
Dimensions：20X25X5.5mm
Weight：5g
