HGLRC 5.8G GTX NANO VTX Video Transmitter

Purchase this product now and earn 12 Points!

USD $12.99

HGLRC 5.8G GTX NANO VTX Video Transmitter switchable FPV video transmitter is ultra light solution which can be used with any drone including TinyWhoop, BetaFPV 75X, Mobula7. It works well with pretty much any FC/ESC stack and offers very clean and strong signal.

Out of stock

Earn 100 points for reviewing this product

Category: Tags: ,

Description

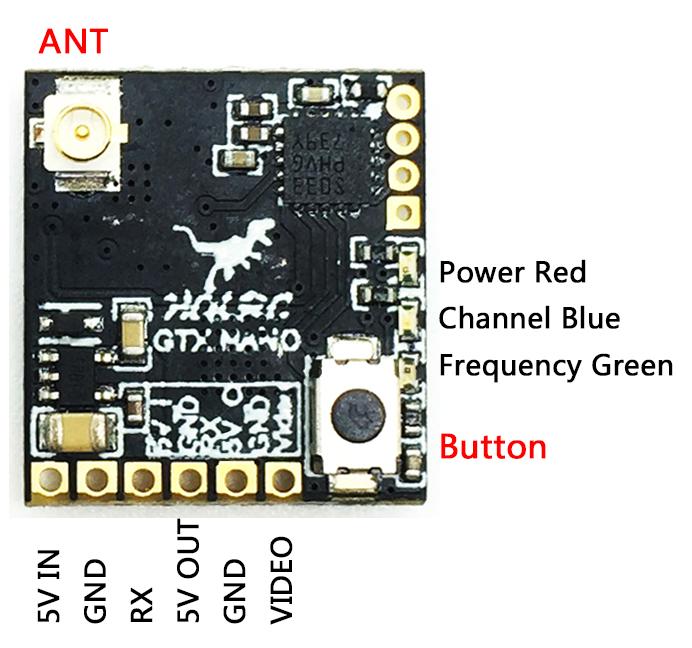

Wiring Diagram

HGLRC 5.8G GTX NANO VTX Video Transmitter Wiring Diagram

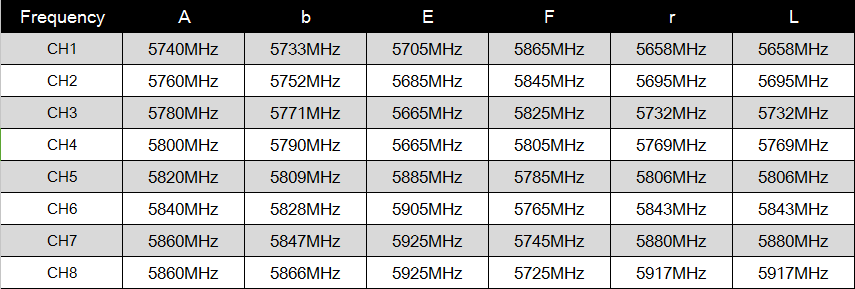

Frequency table

HGLRC 5.8G GTX NANO VTX Frequency Transmitter

Specification

Model: HGLRC 5.8G GTX NANO VTX

HGLRC 5.8G GTX NANO FPV Transmitter
Output power: PIT/25mW/50mW switchable
Control mode:BFOSD control(RX)/button
BAT: +5V,BEC
200mA—-50mW
Video system: NTSC/PAL
Antenna: IPX
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ

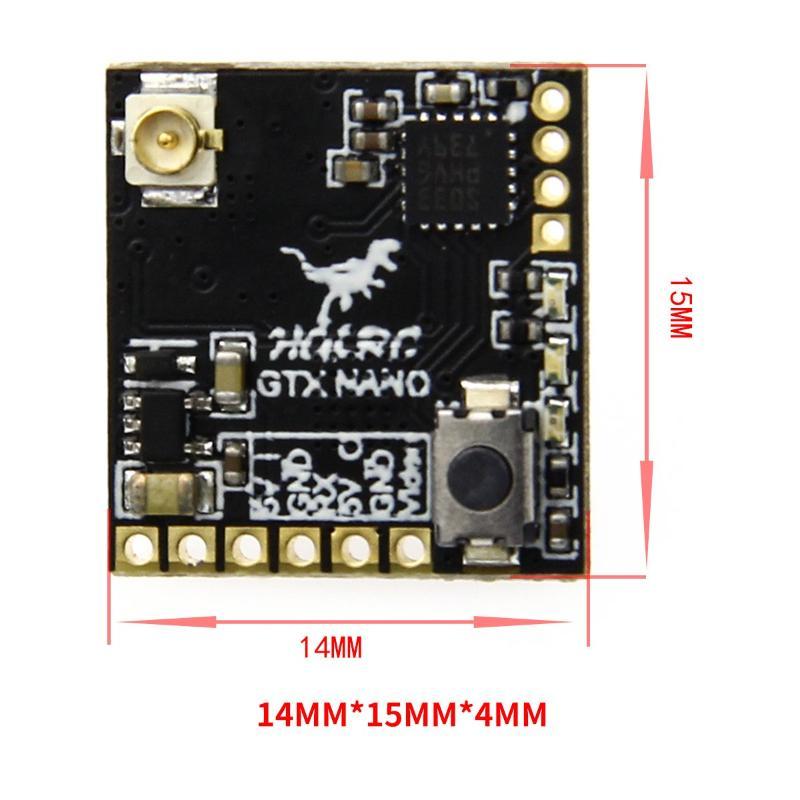

Size: 14mm×15mm×4mm
Weight: 2g

Package Includes

  • 1 x HGLRC 5.8G GTX NANO FPV Transmitter
  • 1 x HGLRC 5.8G Linear Antenna
  • 6x30awg silicon connection wires(2 black,2 red,1 green,1 yellow)

Reviews

There are no reviews yet.

Be the first to review “HGLRC 5.8G GTX NANO VTX Video Transmitter”
