HGLRC DinoShot 40AMP 3-5S BLHeli32 4in1 ESC DSHOT1200 for XJB F440

Purchase this product now and earn 61 Points!

USD $61.99

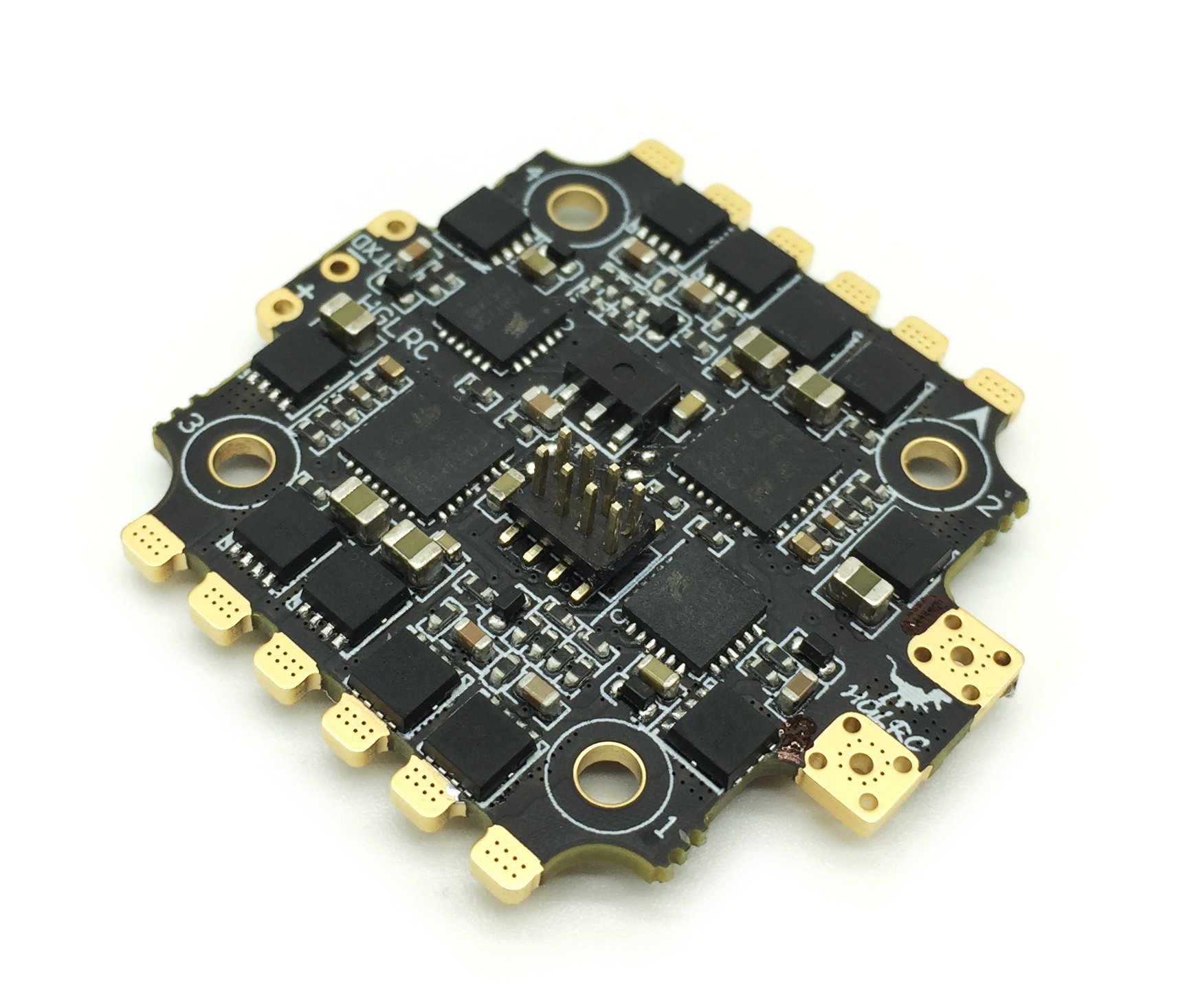

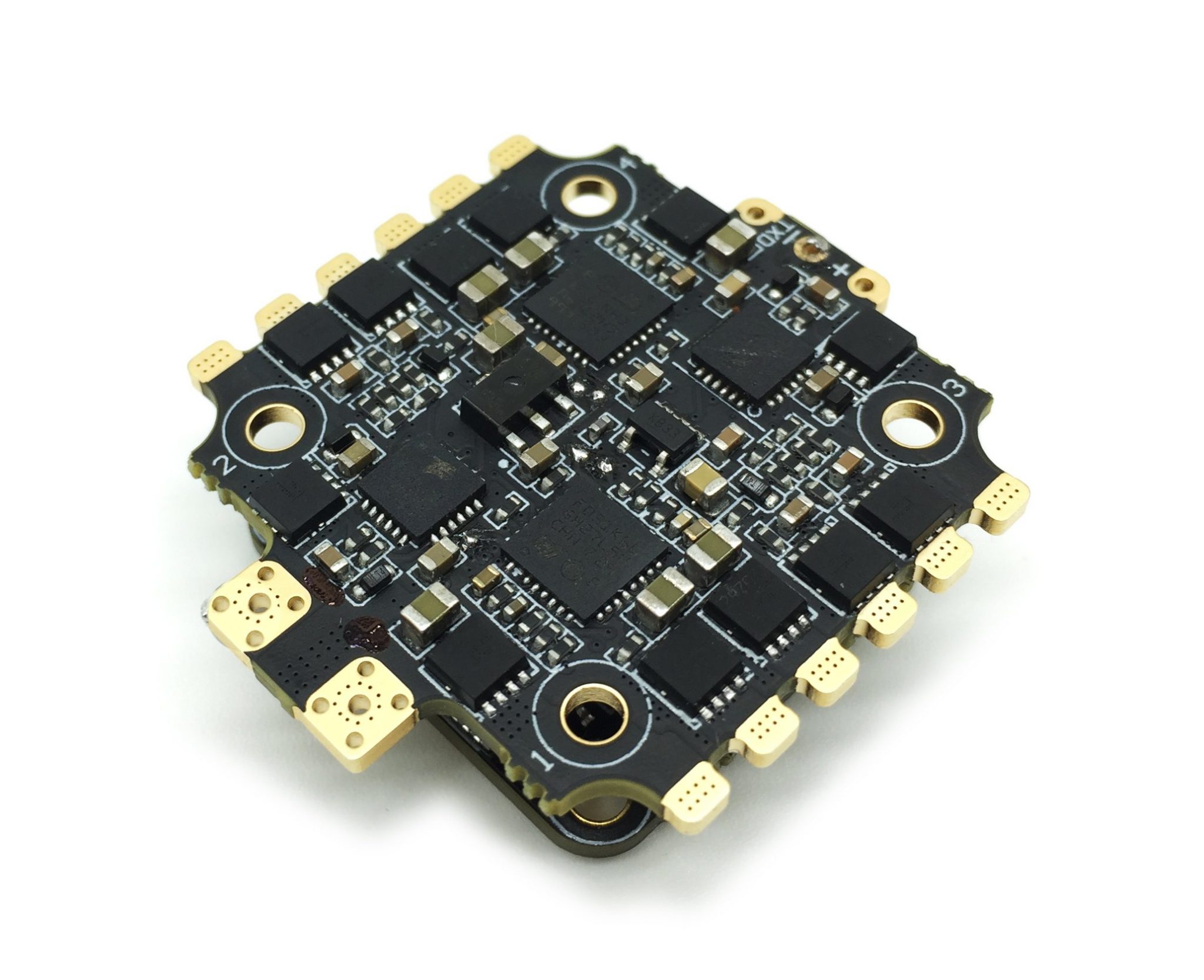

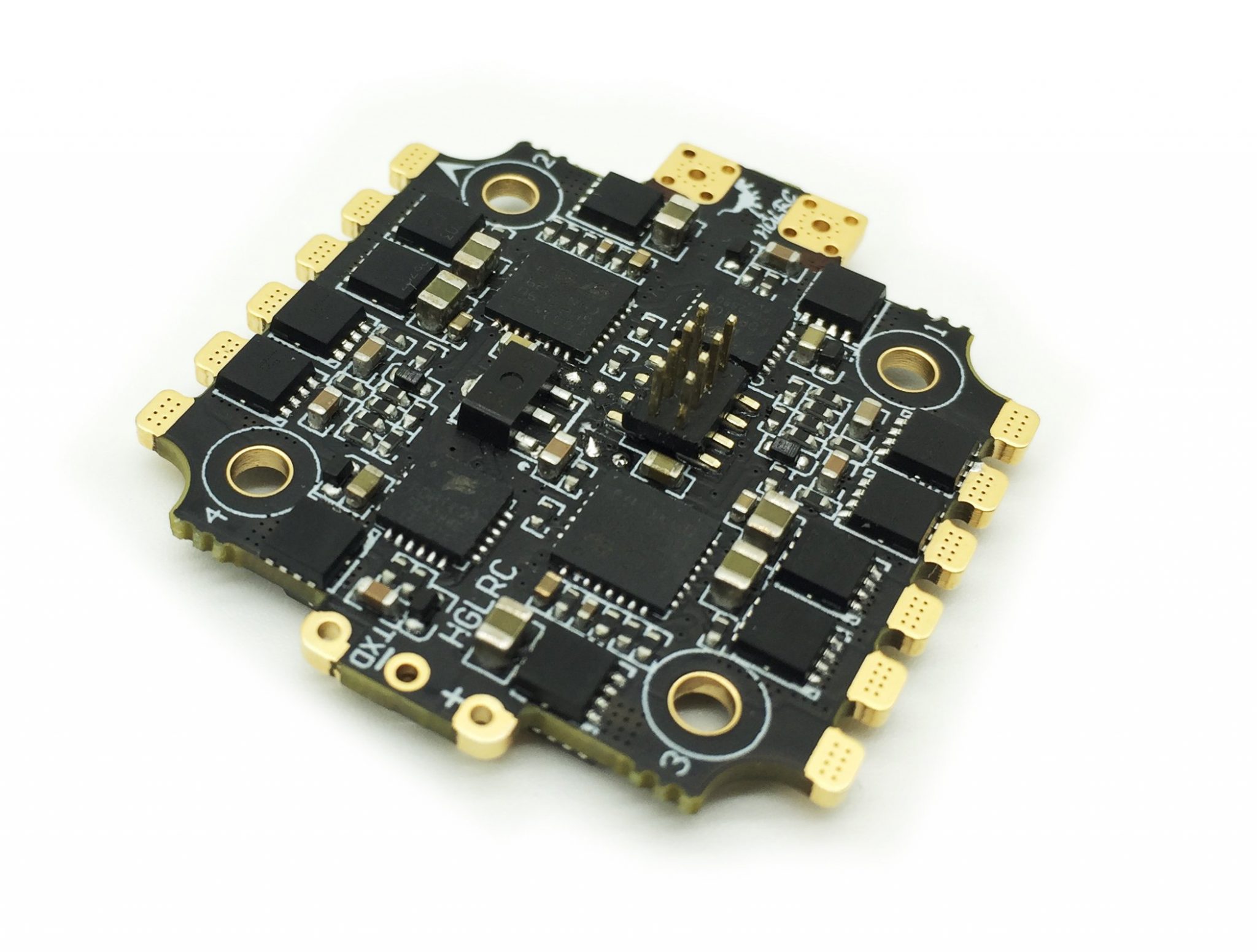

HGLRC DinoShot is an extremely powerful 40AMP 4 in 1 ESC, which supports 3-5S batteries and DSHOT1200.
It is made to work with HGLRC F4 Flight Controller as a HGLRC F440 stack.

In stock

StumbleUpon

Earn 100 points for reviewing this product

SKU: 3408 Category: Tags: ,

Description

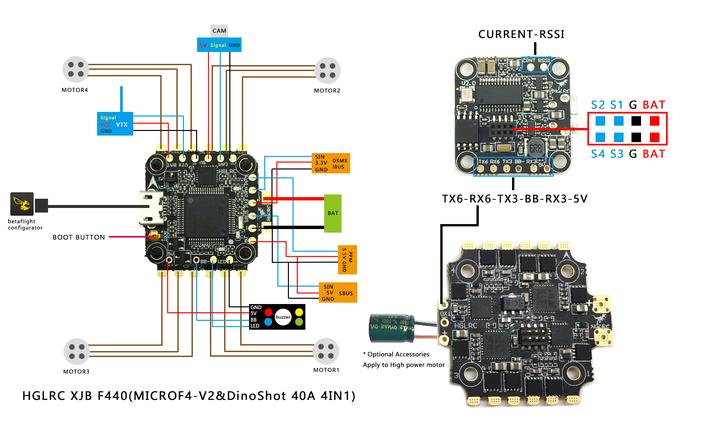

Wiring diagram

Specification

  • Product: HGLRC DinoShot 40AMP 3-5S BLHeli32 4-in-1 ESC
  • Input Voltage: 3-5S Lipo battery
  • Constant Current: 40A
  • Peak Current: 50A
  • BEC Ouput: NO
  • Firmware:32bit ESC with BLHELI_32 firmware
  • Size: 27x27mm (main board), 32x34mm (including pad)
  • Installing Hole:20x20mm,M2
  • Weight: 5.2g
  • CPU:STM32F051
  • MOS Tube: TOP QUALITY MOSFET
  • Protocol: DSHOT1200/600/300/150/Oneshot125/42,MultiShotDamped mode,forward and reverse

Package includes

  • 1x HGLRC DinoShot 40AMP 3-5S BLHeli32 4-in-1 ESC
