Description

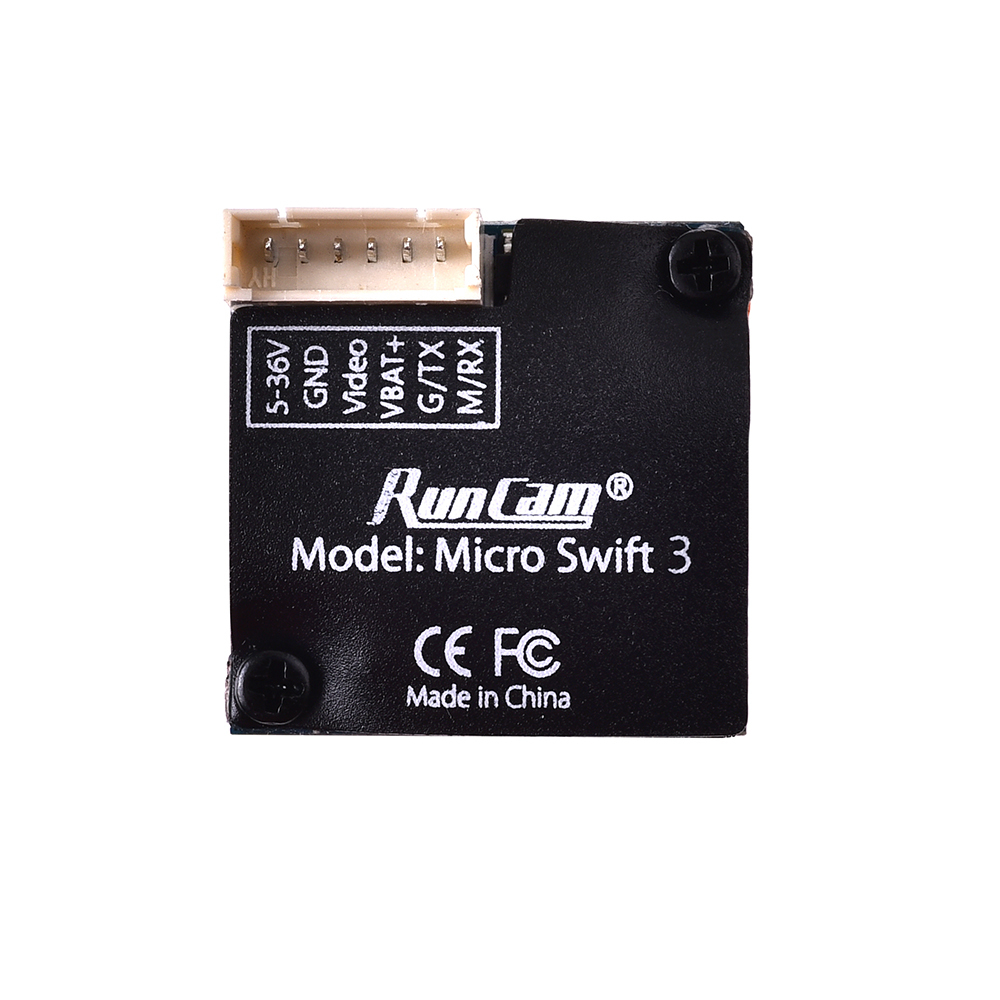

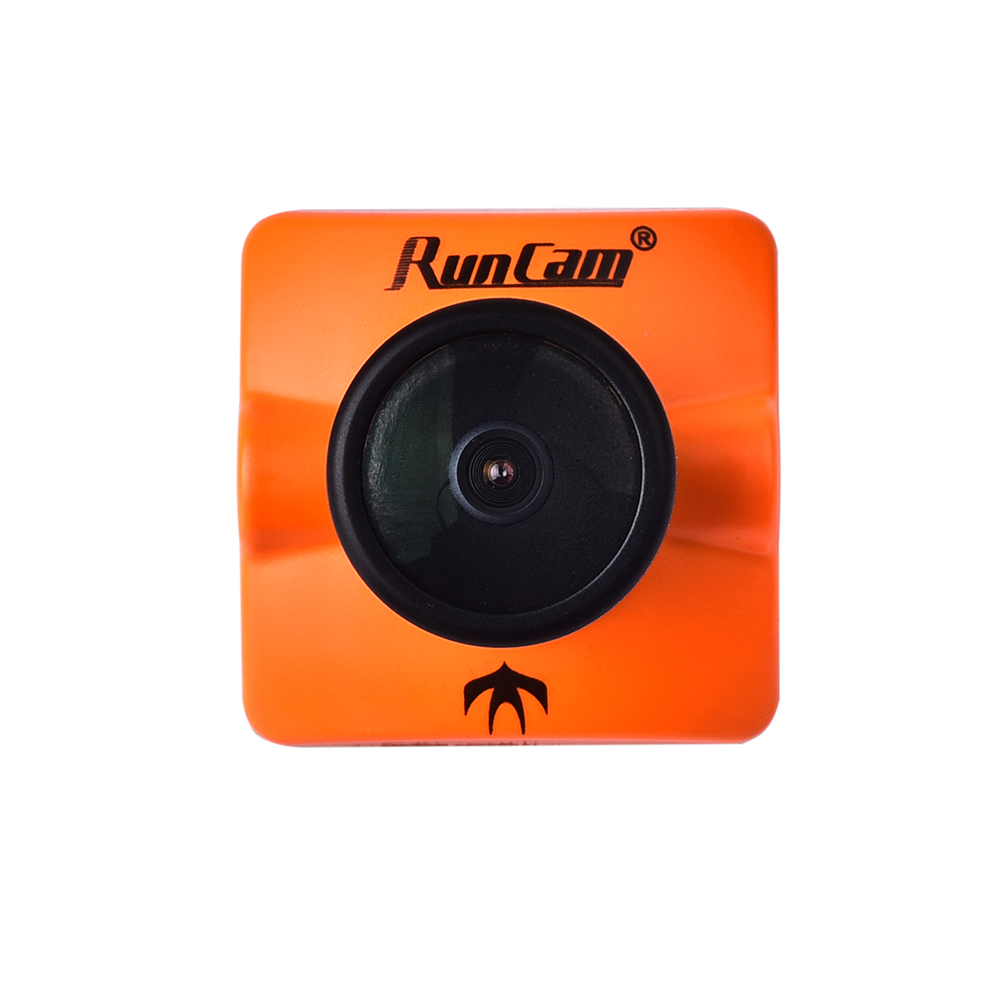

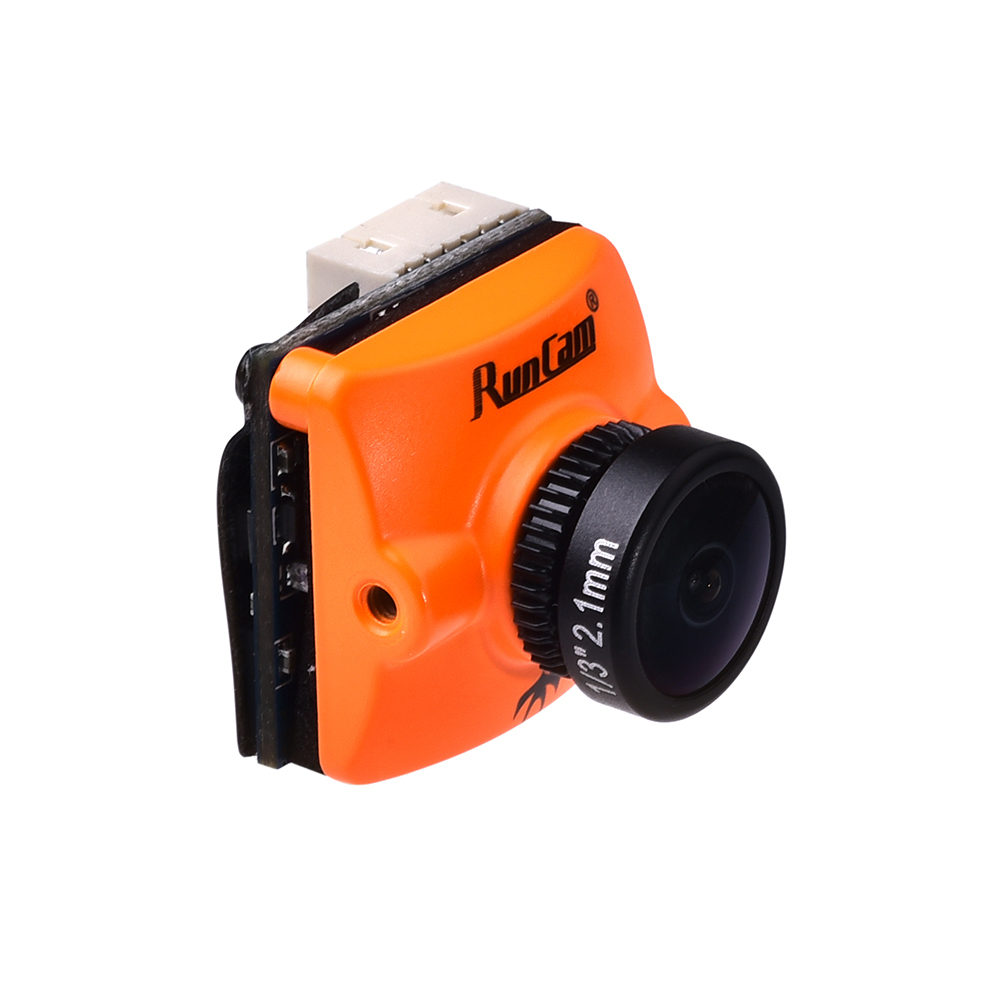

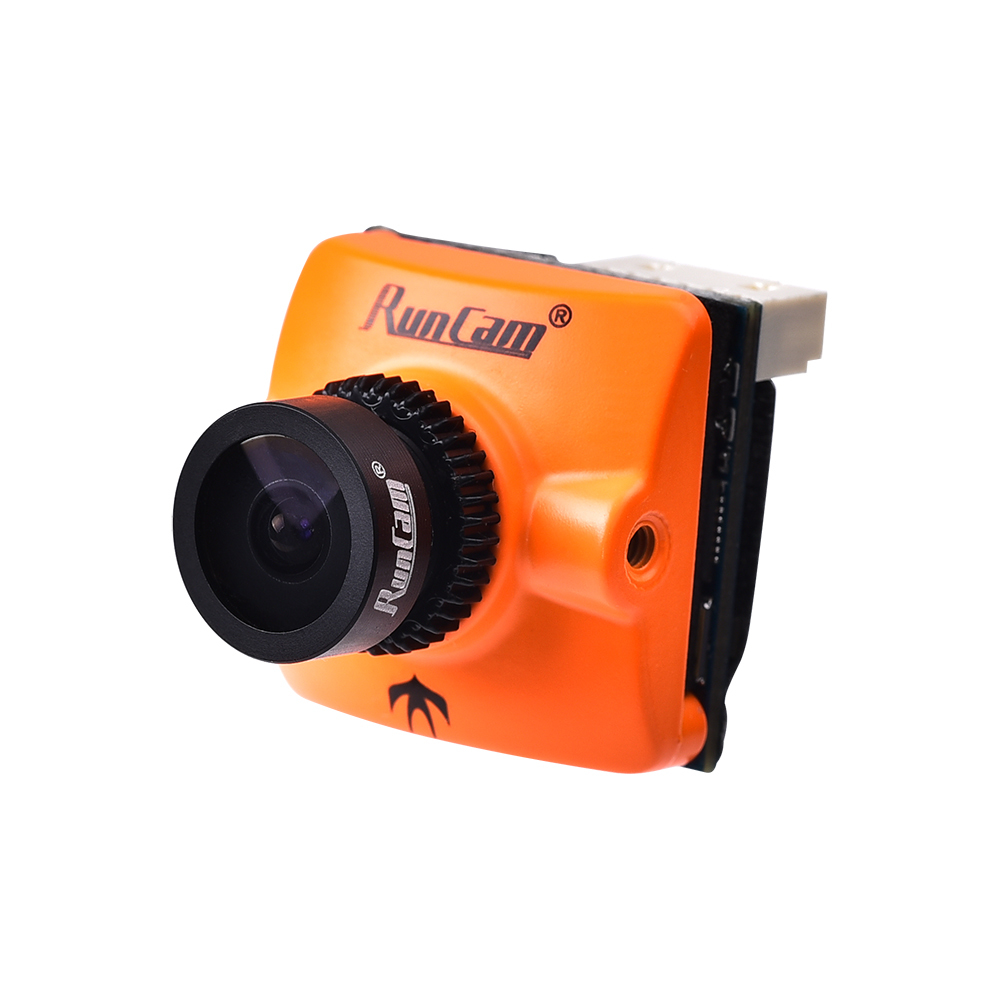

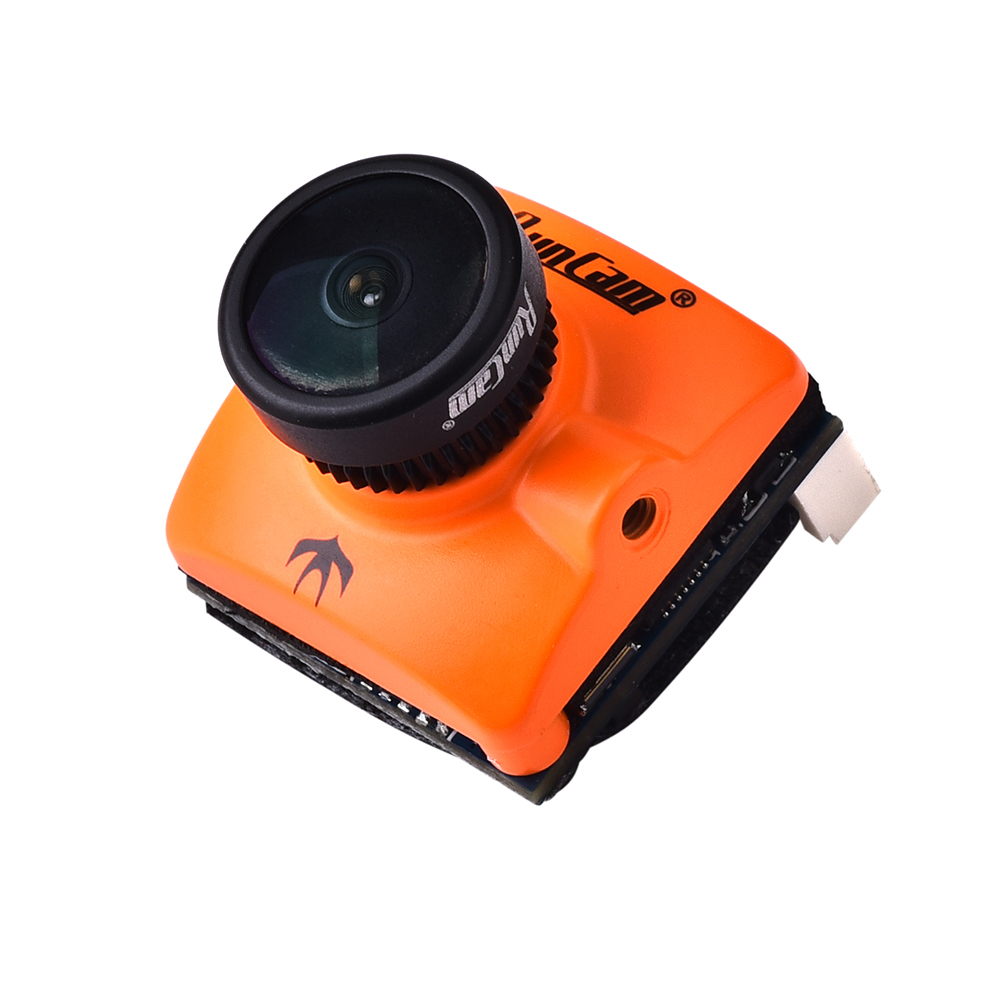

RunCam Micro Swift 3 V2
Classic CCD Camera, New appearance, New Feature
- Vivid Scene Setting
- Joystick Control / UART Control Switchable
How to switch?
The top left corner of the screen will shortly display the current control mode.
The default is Joystick control mode.
Short the two camera control pins
Then power on, camera will auto switch between the two modes
The mode can be saved after power off. After switching to the desired mode, please unplug the short-circuit cable.
UART Control works with Flight Controllers
BetaFlight 3.3 or above / ButterFlight 3.4 or above / CleanFlight 2.2 or above
Global Shutter NO Jello
Dimensions
Package
- 1x Camera
- 1x 1928 ABS bracket
- 1x 6pin FPV silicone cable
- 1x Set of screws
- 1x Manual
Parameters
| Model | RunCam Micro Swift 3 | ||
| Image Sensor | 1/3″ SONY Super HAD II CCD | ||
| Horizontal Resolution | 600TVL | ||

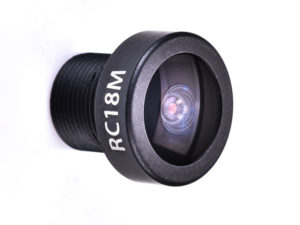

| Lens |
|
||
| Signal System | PAL / NTSC | ||
| Integrated OSD | Yes | ||
| One Touch Scene Setting | Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight | ||
| S/N Ratio | >60dB (AGC OFF) | ||
| Electronic Shutter Speed | PAL: 1/50~100,000; NTSC: 1/60~100,000 | ||
| Auto Gain Control (AGC) | Yes | ||
| Min. Illumination | [email protected] | ||
| WDR | D-WDR | ||
| DNR | 2DNR | ||
| Day/Night | Color/Auto/B&W | ||
| Menu Control | Joystick Control / UART Control Switchable | ||
| Power | DC 5-36V | ||
| Current | 60mA@12V / 120mA@5V | ||
| Net Weight | 6g(M8) | ||
| Dimensions | 19mm*19mm*18mm |
