Description
Super 1000TVL Clear Image with Super 120dB WDR
Joystick Control & UART Control Switchable
The top left corner of the screen will shortly display the current control mode.
The default is Joystick control mode.

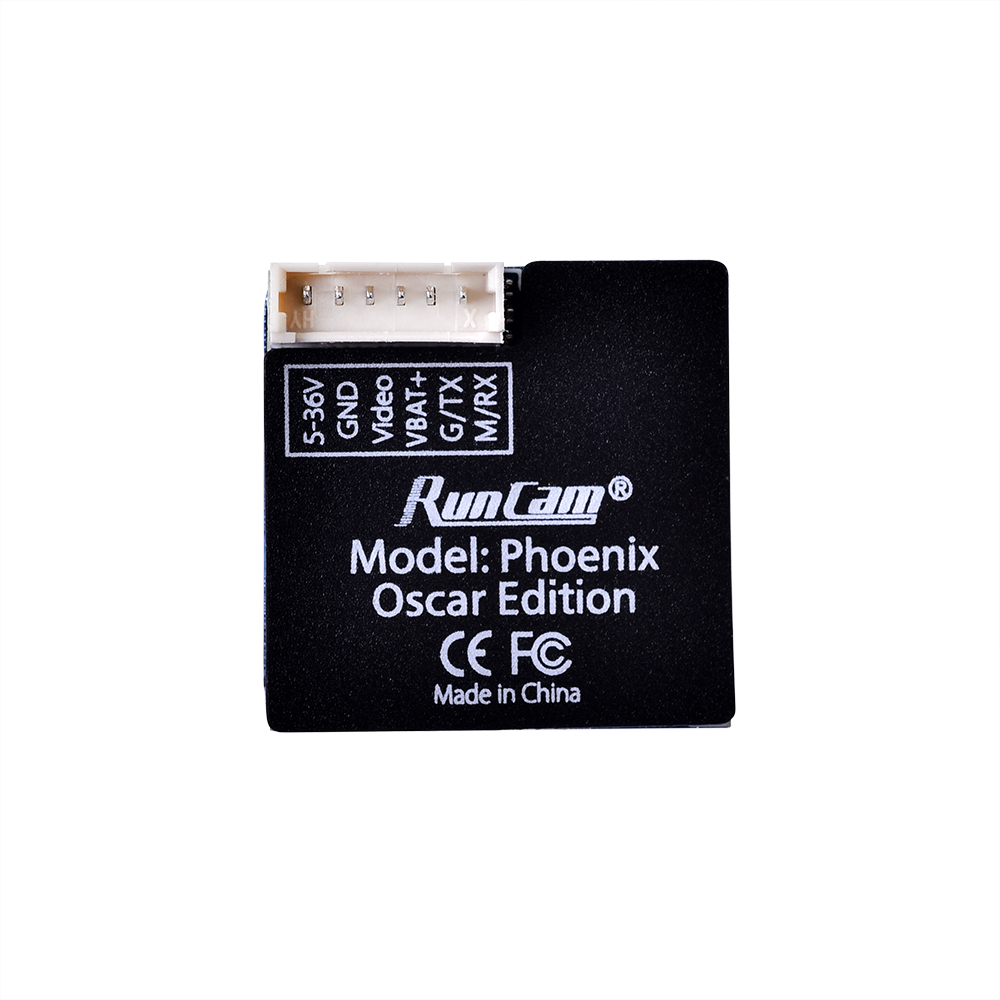

Short the two camera control pins
Then power on, camera will auto switch between the two modes
The mode can be saved after power off. After switching to the desired mode, please unplug the short-circuit cable.
UART Control works with Flight Controllers:
BetaFlight 3.3 or above / ButterFlight 3.4 or above / CleanFlight 2.2 or above
Dimensions
Package
- 1x Camera
- 1x 1928 ABS bracket
- 1x 6pin FPV silicone cable
- 1x Set of screws
- 1x Manual
Parameters

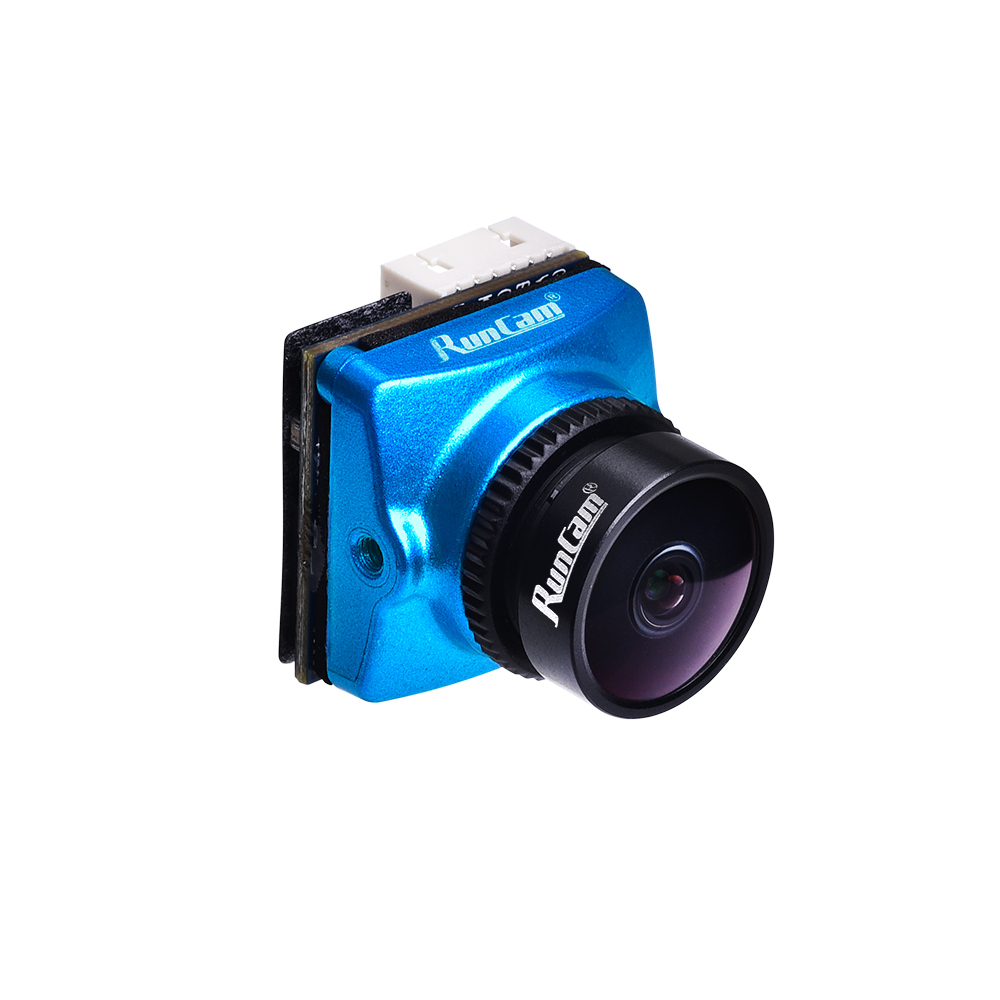

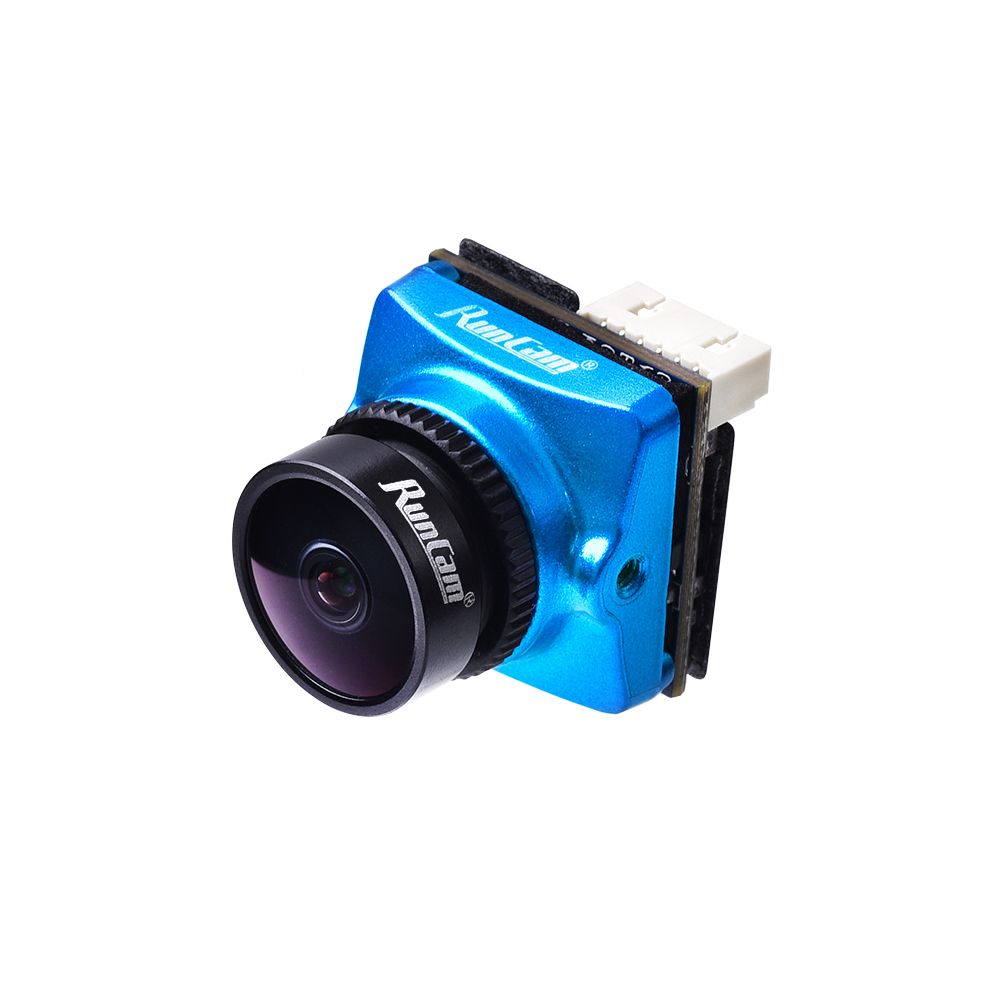

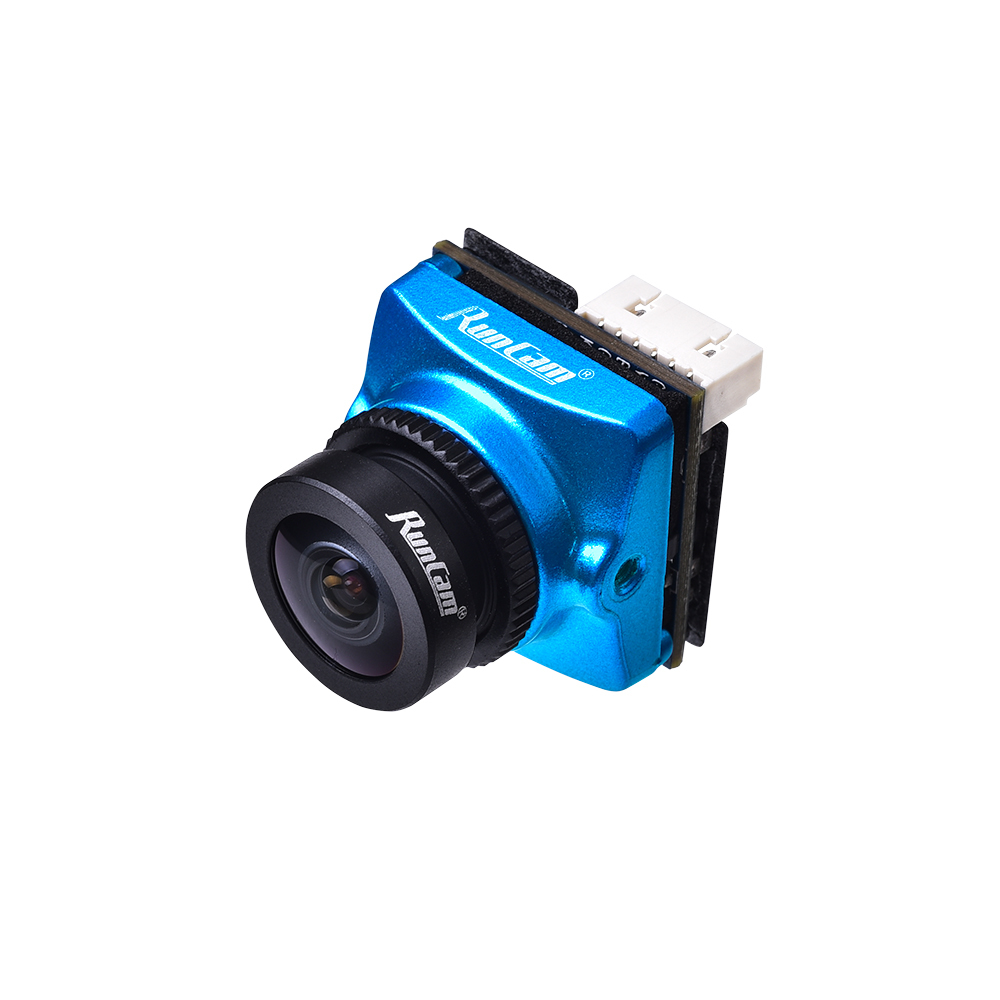

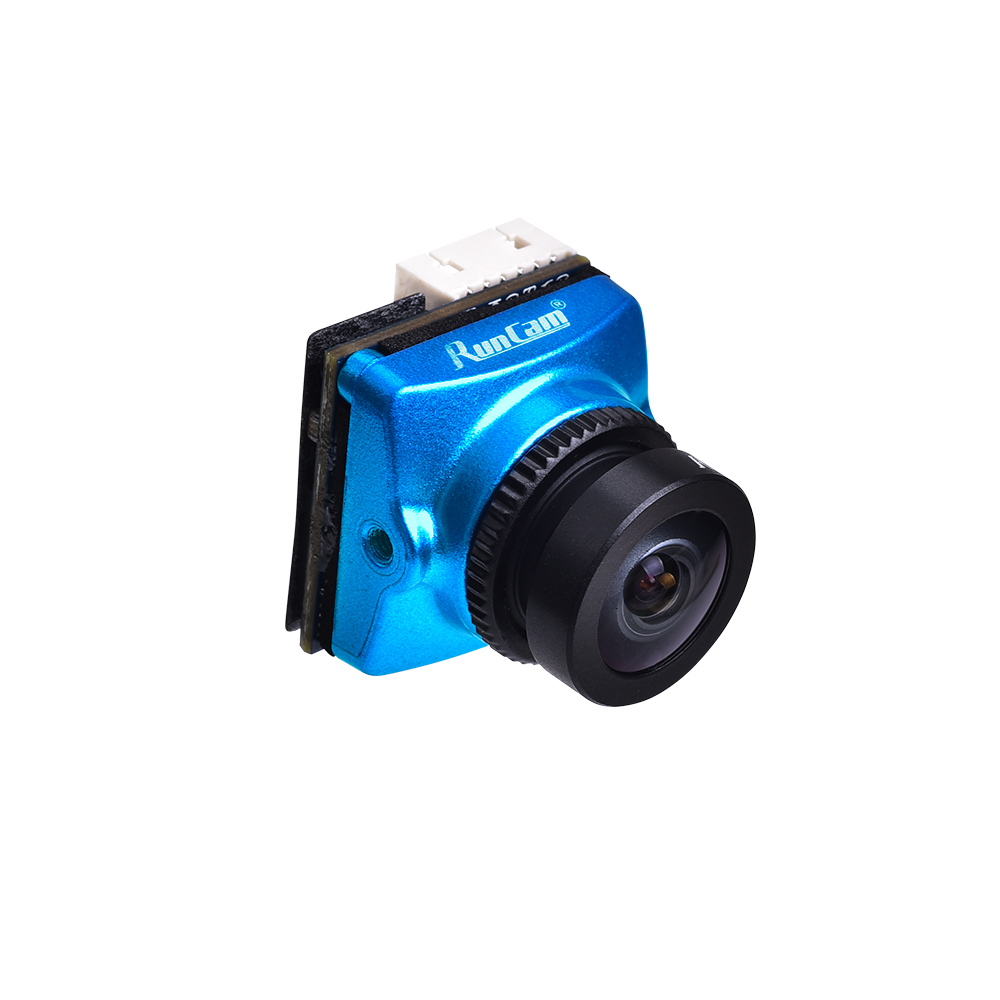

| Model | RunCam Phoenix Oscar Edition | ||
| Image Sensor | 1/3″ 120dB WDR Sensor | ||
| Horizontal Resolution | 1000TVL | ||
| Lens | 2.5mm (M12) FOV140° (4:3) / 1.8mm (M12) FOV160° (4:3) | ||
| Screen Format | 4:3 / 16:9 switchable | ||
| Mirror/Flip | Available | ||
| Signal System | PAL / NTSC Switchable | ||
| Integrated OSD | Yes | ||
| S/N Ratio | >50dB (AGC OFF) | ||
| Electronic Shutter Speed | Auto | ||
| Auto Gain Control (AGC) | Auto | ||
| Min. Illumination | [email protected] | ||
| WDR | D-WDR | ||
| Day/Night | Color/Auto/B&W | ||
| Menu Control | Cable Control / Remote Control Switchable | ||
| Power | DC 5-36V | ||
| Current |
|
||
| Housing Material | ABS | ||
| Net Weight | 9g | ||
| Dimensions | 19mm*19mm*20mm |
