Description

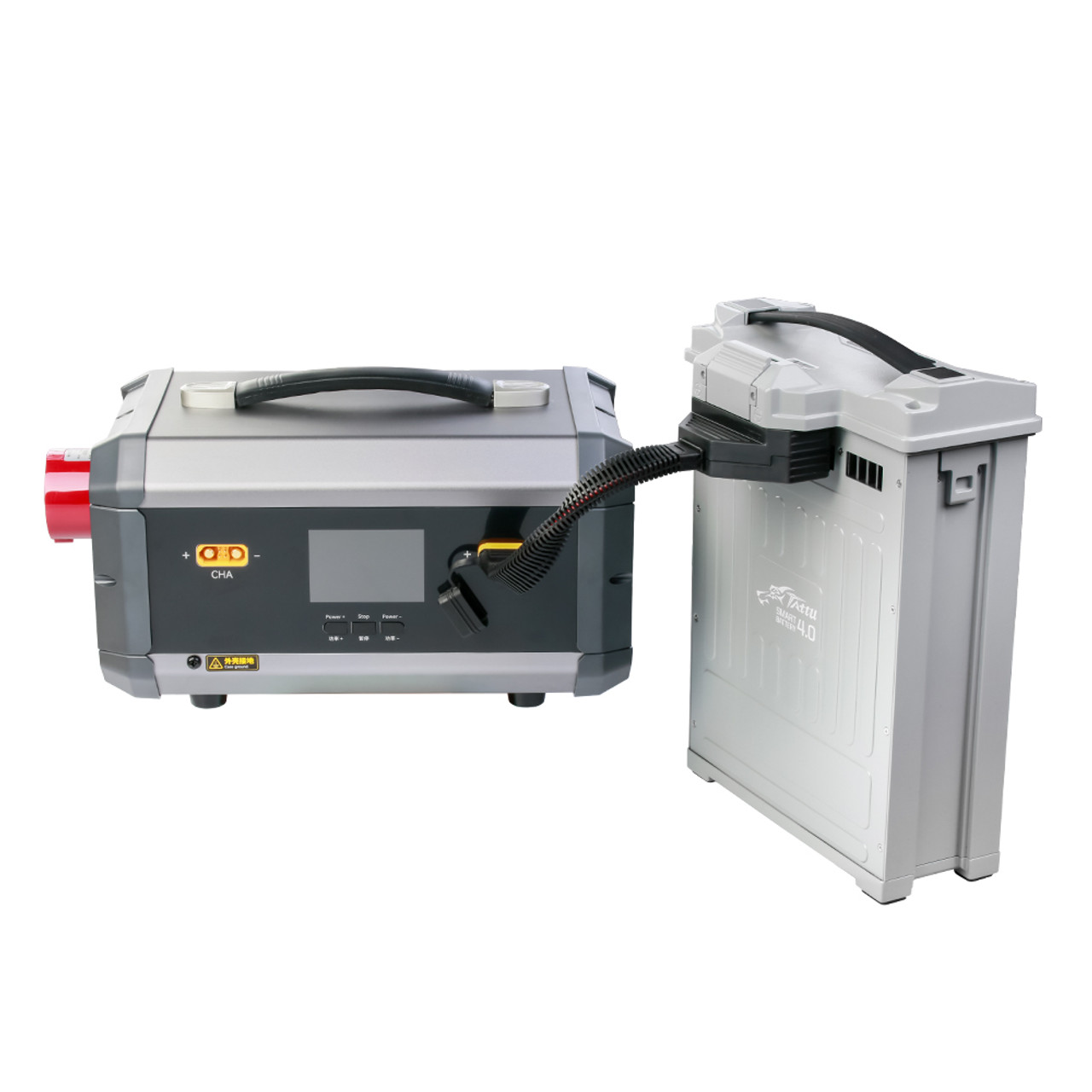

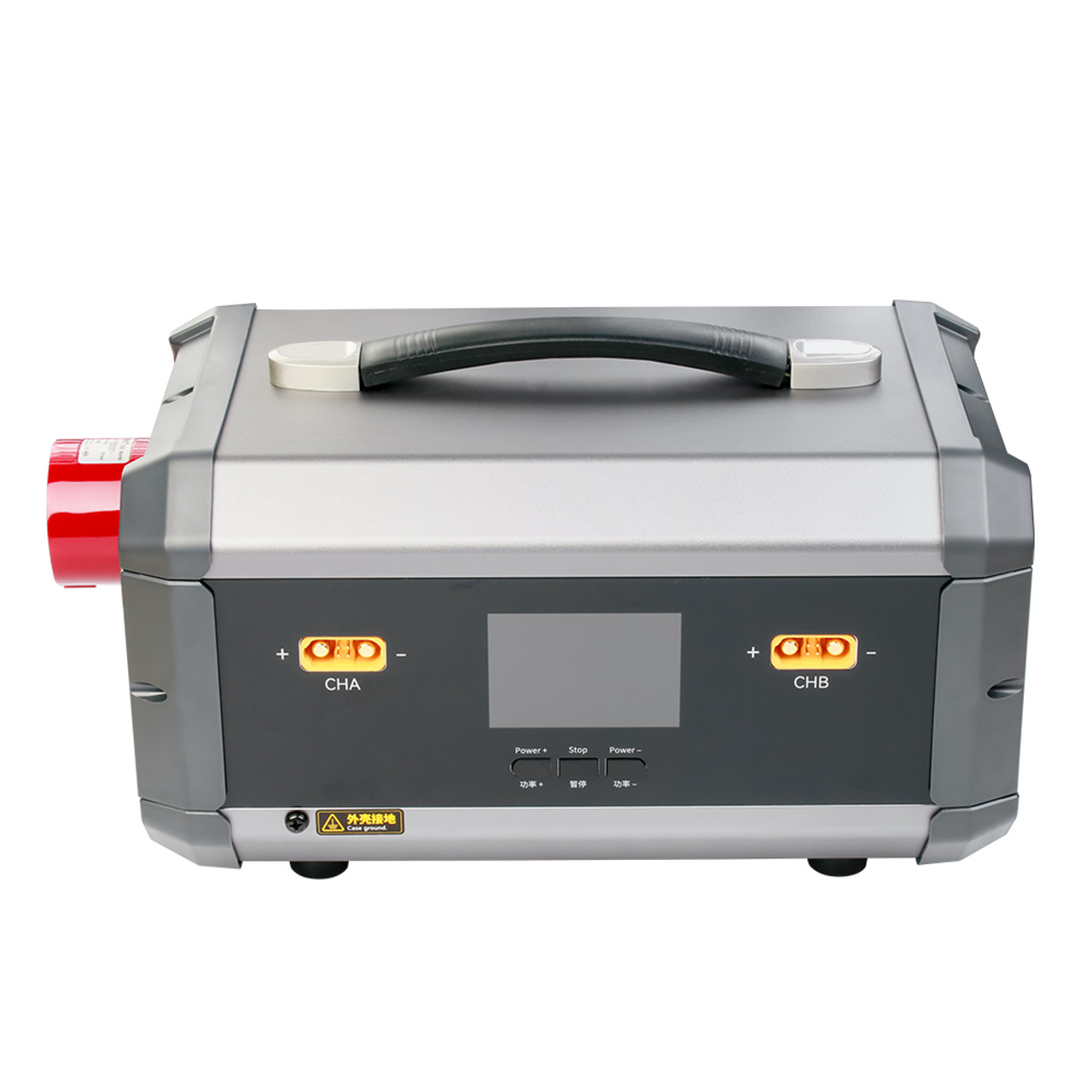

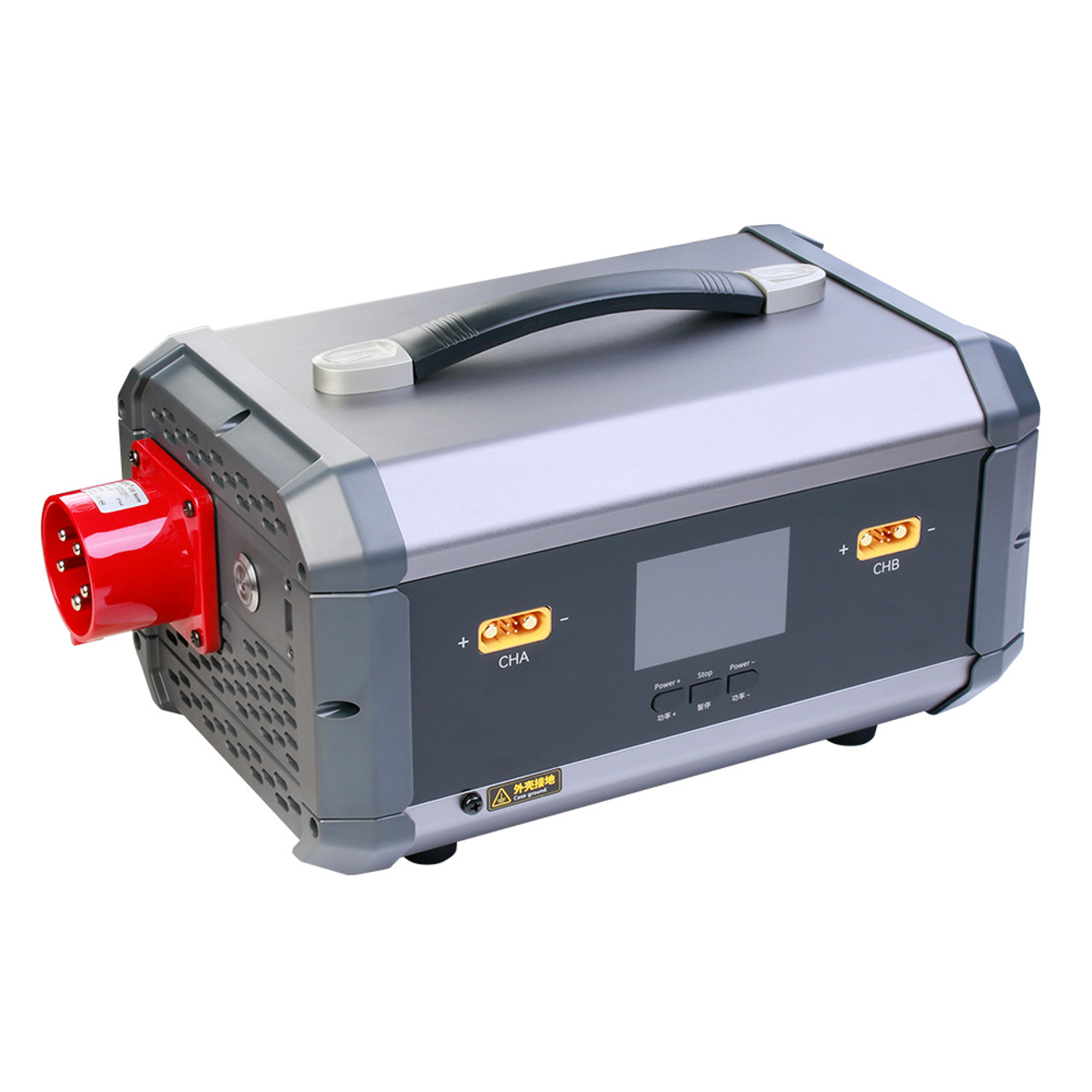

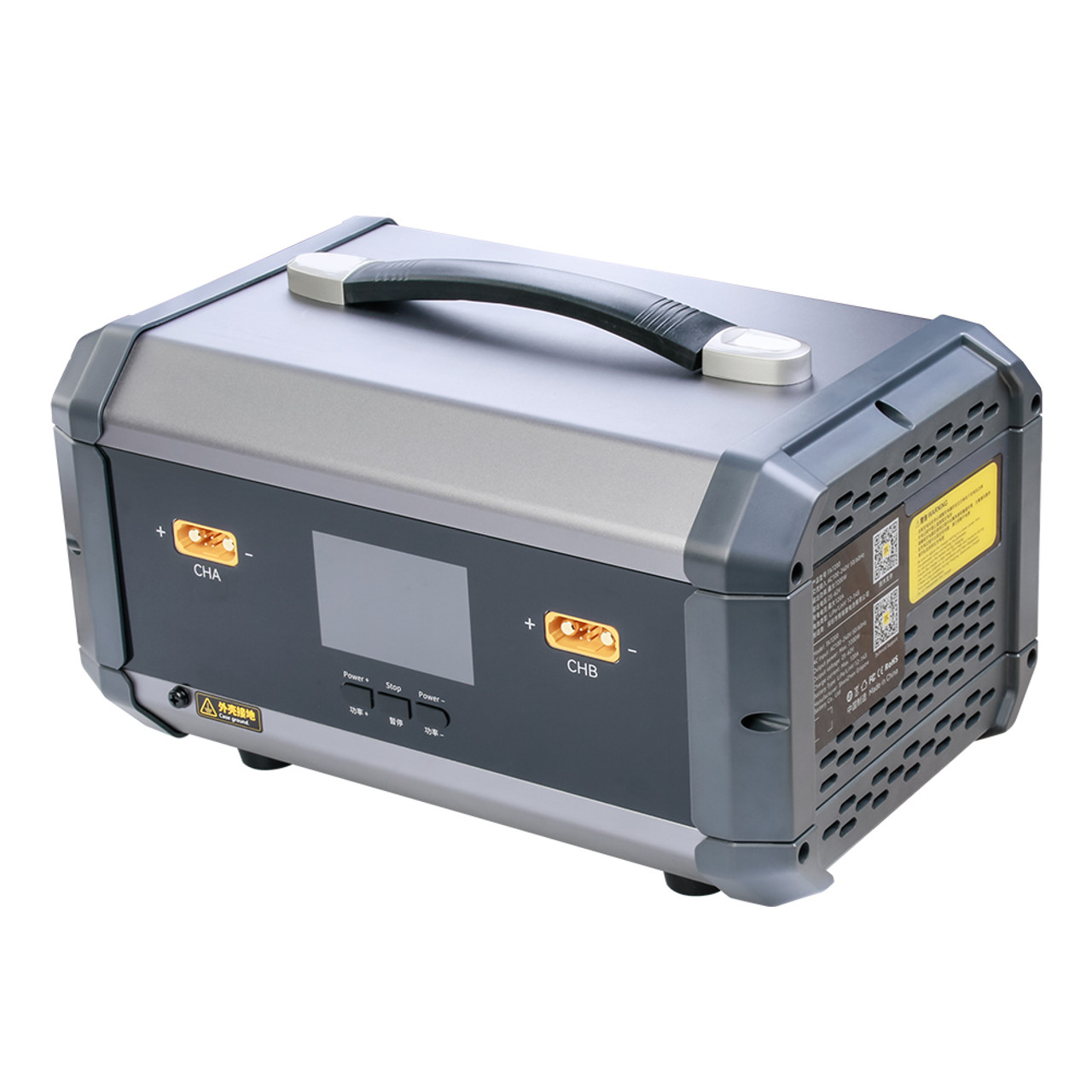

TA7200 Charger is a dual-channel intelligent charger that supports multiple input methods, including generator, with safety protection functions such as over-voltage, voltage limit, overhear, current limit, short-circuit and reverse connection protection etc. Once the Tattu smart battery is successfully inserted into the charger for communication, the charger can automatically read the battery information and enter into intelligent charging without any operation. During the charging process, the charger will adjust the charging current according to the real-time status of the battery to ensure charging safety.
Tattu 7200 charger ensures your safety while charging, specially designed for Tattu 12S-14S smart battery pack, with additional “smart intelligence” features to simplify operation and connectivity between charger and battery. The Tattu Dual Smart Charger 120A/7200W offers therefore all our expertise in one that will meet all your demands for flawless operational functionality like:
1.Simultaneous Charging: 2 batteries can be safely charged simultaneously with max 120A per channel.
2.Smart Battery Detection: Smart battery auto detection setting while connection the battery to the charger
3.LCD Display: Large LCD split channel display showing charge progress of both connected batteries
4.User-Friendly Interface: Simple comfort push button operation
TA7200 SPECIFICATIONS
Output Voltage: AC100-240V 50/60Hz
Channels: Two
Max Charge Power: Max 7200W
Charge Current: Max 120A
Working Temperature: 0℃~45℃
Battery Type: 12S-14S LiHV or Tattu LiPo Smart Batteries
Output Plug: ACES
Size: 398x225x217mm
Weigh: 10Kg
NOTE: TA7200 Charger does not support 380V 3 phase Input
Accessories Included: main Power Cable, AS150U-F to Molex Transferring Cable
Option: AS150U-F to ACES Transferring Cable;
