Description

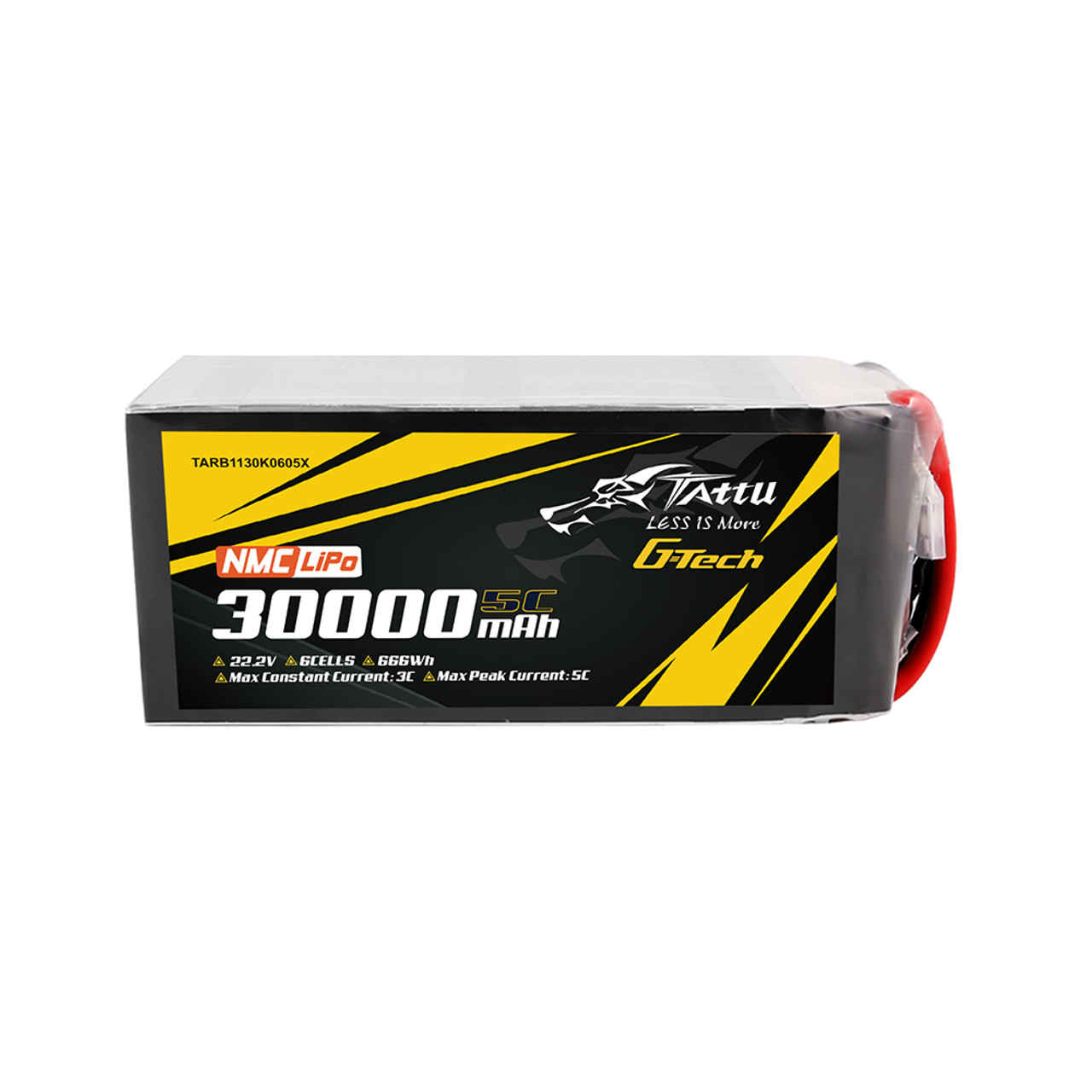

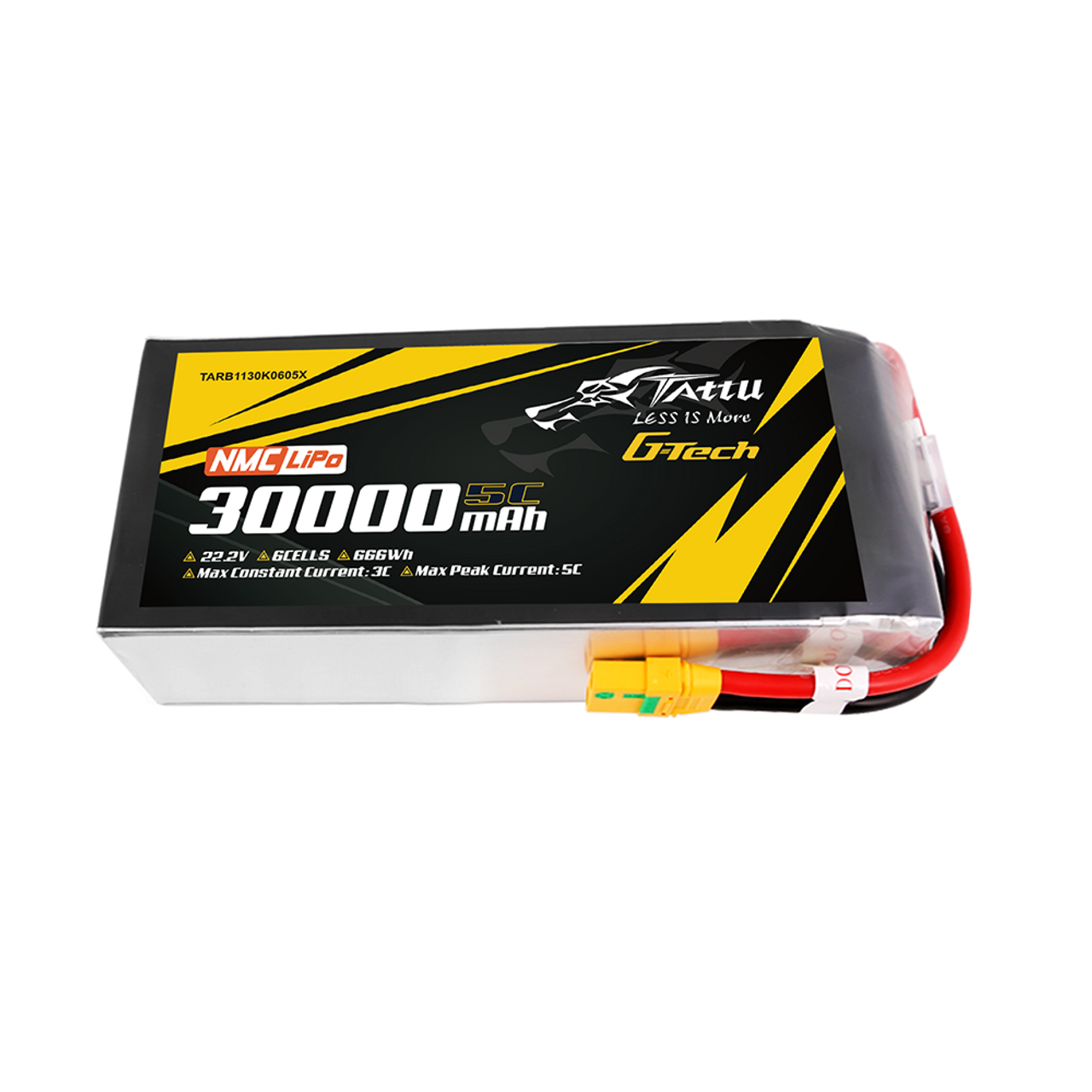

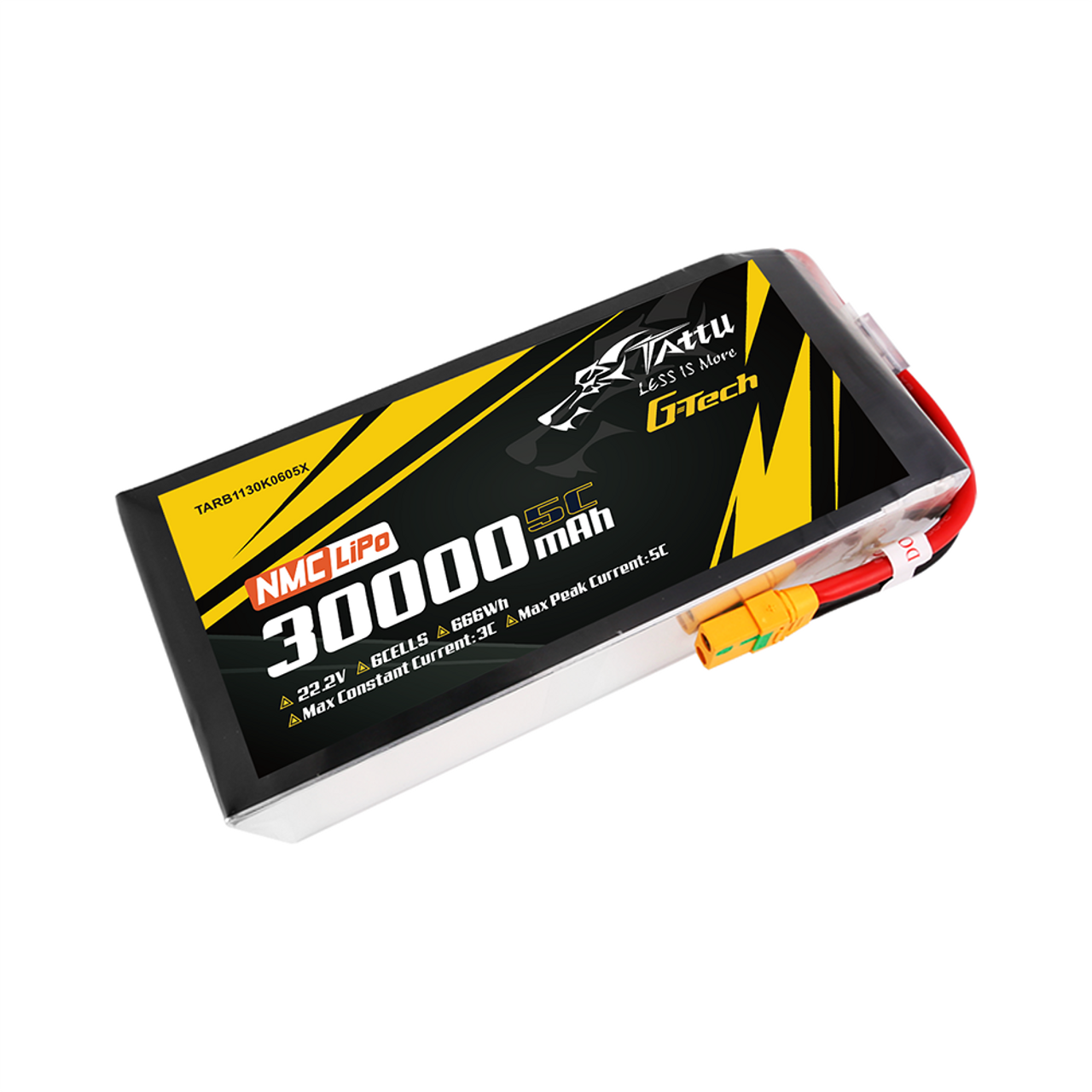

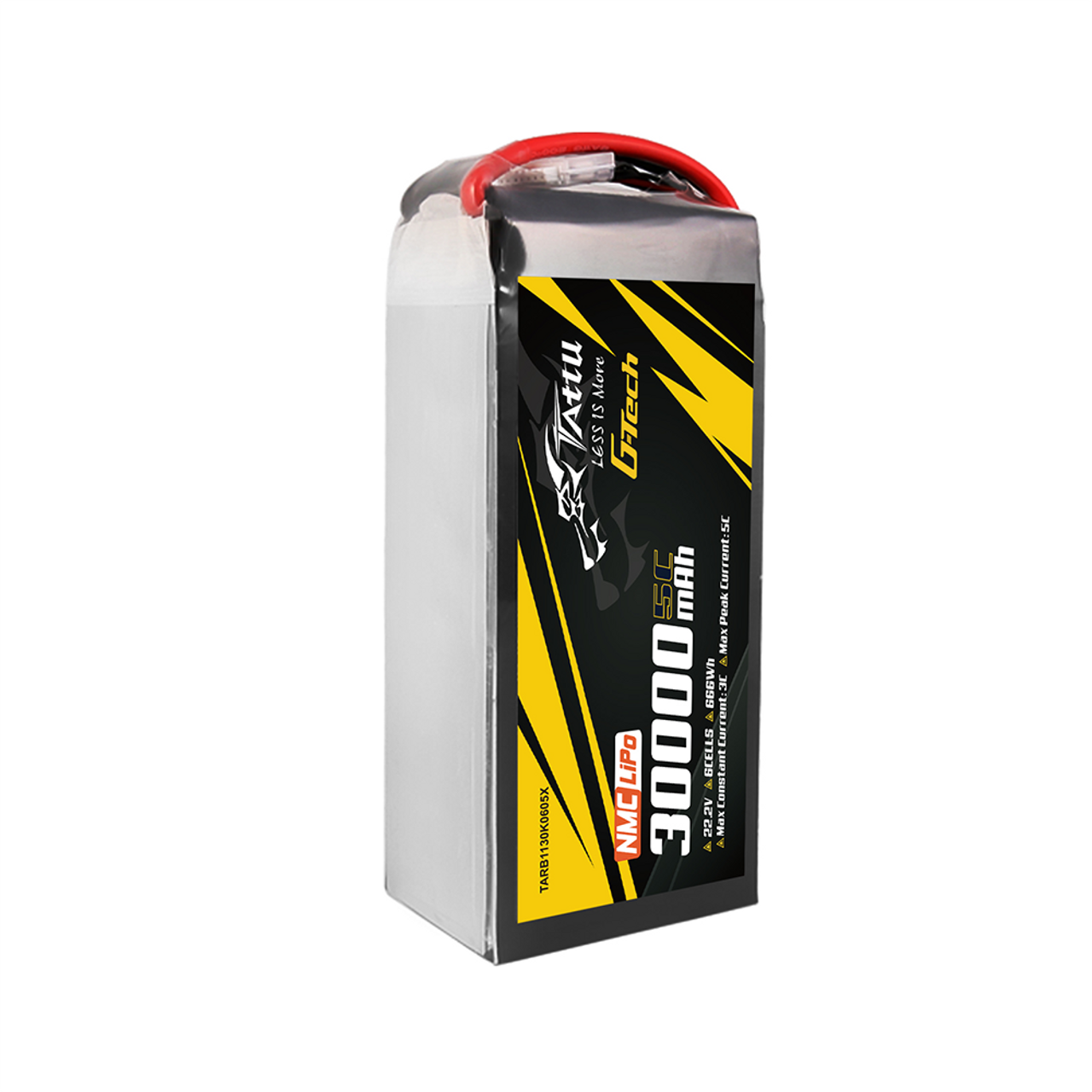

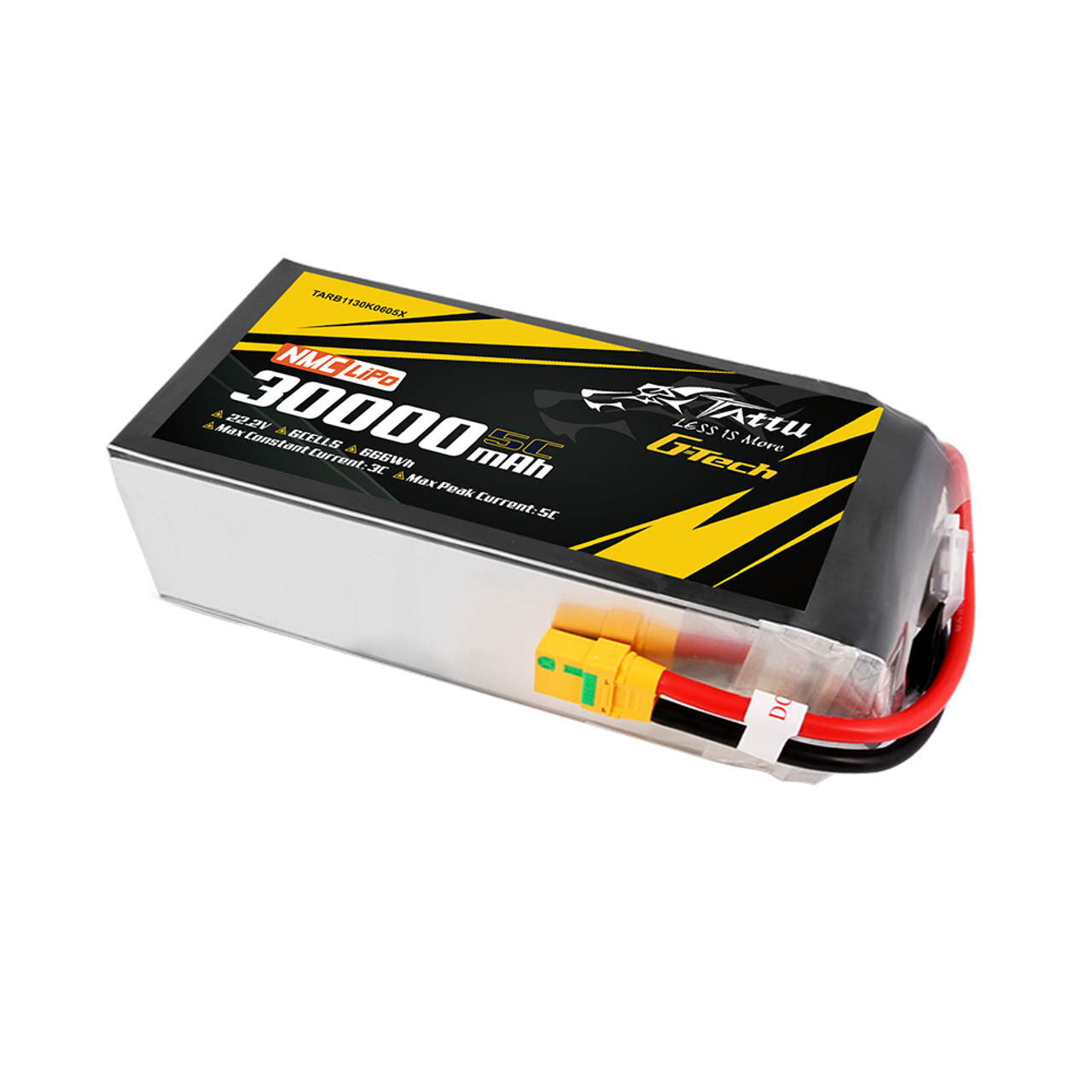

Tattu NMC 30000mAh 22.2V 5C 6S1P Lipo Battery Pack with XT90-S plug is a new kind of Semi-solid lipo battery with high energy density and long service life. It is suitable for a variety of small and medium drones; which always are commonly used for mapping; inspection; surveying; delivery industry; etc. They usually need 1-3C nominal discharge current. The advantages of lighter weight; small volume; and long flight time are fully used.
Specifications:
Capacity: 30000mAh
Voltage: 22.2V/6S
Max Constant Current：3C
Max Peak Current: 5C
NET Weight(±20g): 2525g
Size: 206*90*65mm
Discharge Connector Type: XT90-S
Balancer Connector Type: G-Tech-7P
Features:
- Energy Density:
284.62Wh/kg – This is a high energy density, suitable for applications where weight and energy storage are critical.
- Safety Performance:
Voltage Range: From 4.2V to 2.75V when SOC is from 100% to 0%. This range suggests good safety management within the battery’s operating limits.
- Discharge Rate:
Max Constant Current: 3C
Max Peak Current: 5C < 3 seconds
These rates indicate the battery’s ability to deliver power quickly and efficiently.
- Cycle Life:
Over 300 cycles – The battery maintains its performance over a significant number of charge-discharge cycles.
- G-Tech Functionality:
The battery supports the G-TECH function with the Tattu 1000W charger. It includes automatic current allocation, enhancing charging efficiency and battery management.
Technical Features:
- Ultra-High Nickel Technology:Likely contributes to higher energy density and overall battery performance.
- Silicon Carbon Anode: Enhances the battery’s capacity and cycling stability.
- Coated Diaphragm Technology:Improves safety and performance by enhancing the separator’s strength and stability.
- Solid Electrolyte:Offers improved safety and performance, reducing the risk of leakage and enhancing the battery’s life.
These features suggest a battery designed for high-performance applications, such as drones, electric vehicles, or other advanced electronics. If you have any specific questions or need further details, feel free to ask!
Charger:
Recommended use of the Tattu matching charger: TA1000
Tattu TA1000 G-Tech Dual-Channel Charger 25A*2 1000W For 1S-7S Drone Battery
Check for more Tattu UAV/Drone Chargers.
Download Bluetooth Guide:
Notice:
If you need the similar smart lipo battery, please check the link below.
- Tattu 22000mAh 6S 25C 22.2V Lipo Battery Pack with AS150 +XT150 plug
- Tattu 22000mAh 14.8V 25C 4S1P Lipo Battery Pack with NA plug
- Tattu plus1.0 16000mah 44.4V 12S 15C Smart Battery with AS150U plug
You can also check more other drone lipo batteries, Tattu Chargers.
Our Advantage:
1. Your orders will be dispatched via FedEx from the USA directly.
2. Fast shipping and excellent local after-sale service guaranteed in the USA.
3. Service-priority in the online shop, like the long warranty period and the lower price. We do offer a 90-day-warranty after your order date.
4. Energy Density: Specially adapted to each UAV type and RC car/boat/helicopter type. Very High according to capacity/weight. In fact, we are specialists in High Power Lipo Batteries. It is our unique technology, the highest power of our battery is 100C. Another technology is our batteries are able to be stably discharged simultaneously.
5. Low IR: Provides stable voltage until the end of your mission.
6. Safety: Gens Ace and its’ partners fulfill the ISO9001, ISO14001, standards.
7. See the battery instruction to the link: Lipo Battery Guide.
WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Not Find You Need? Try Our Customized Service; Professional Customized of UAV Drone Batteries and Battery Solutions.
