Description

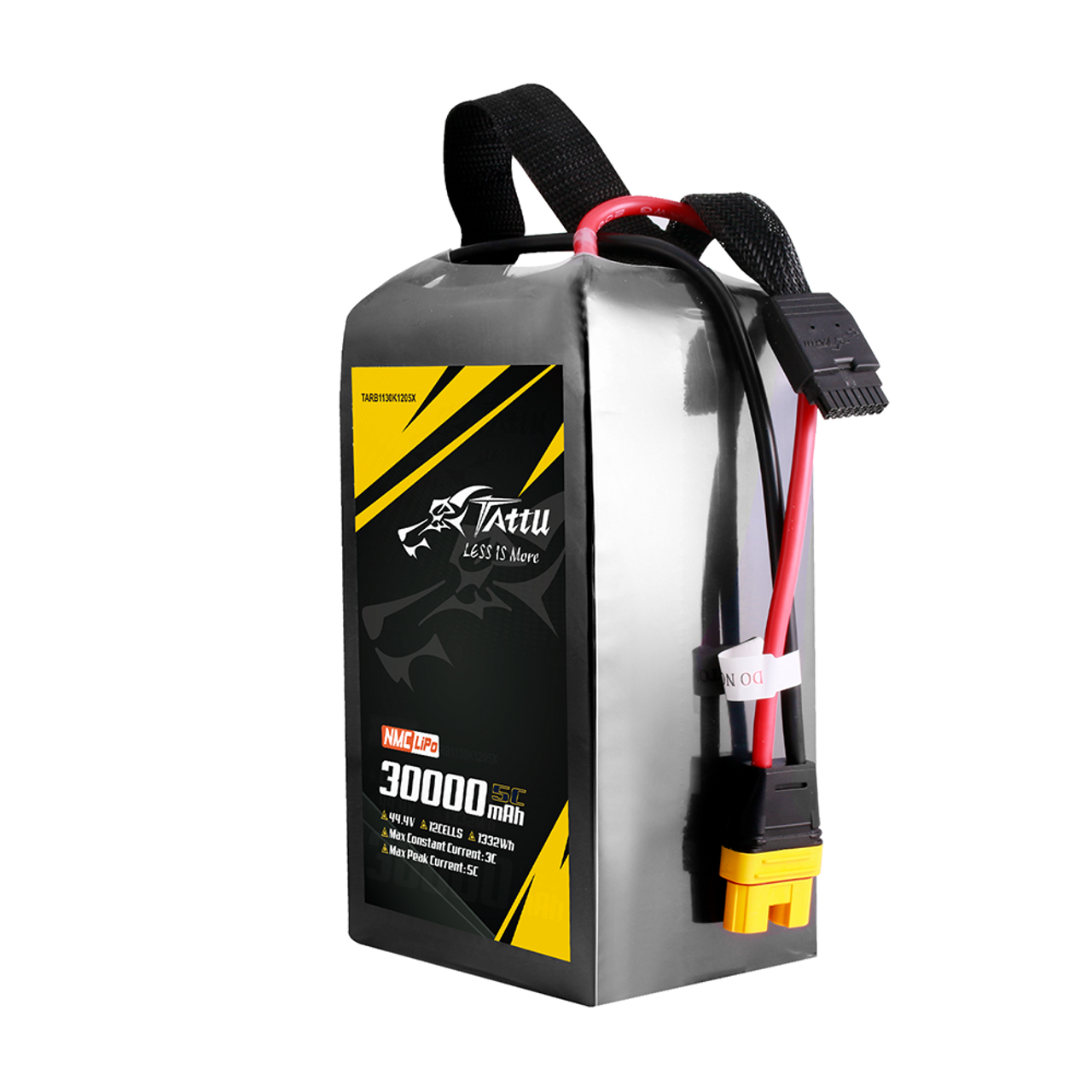

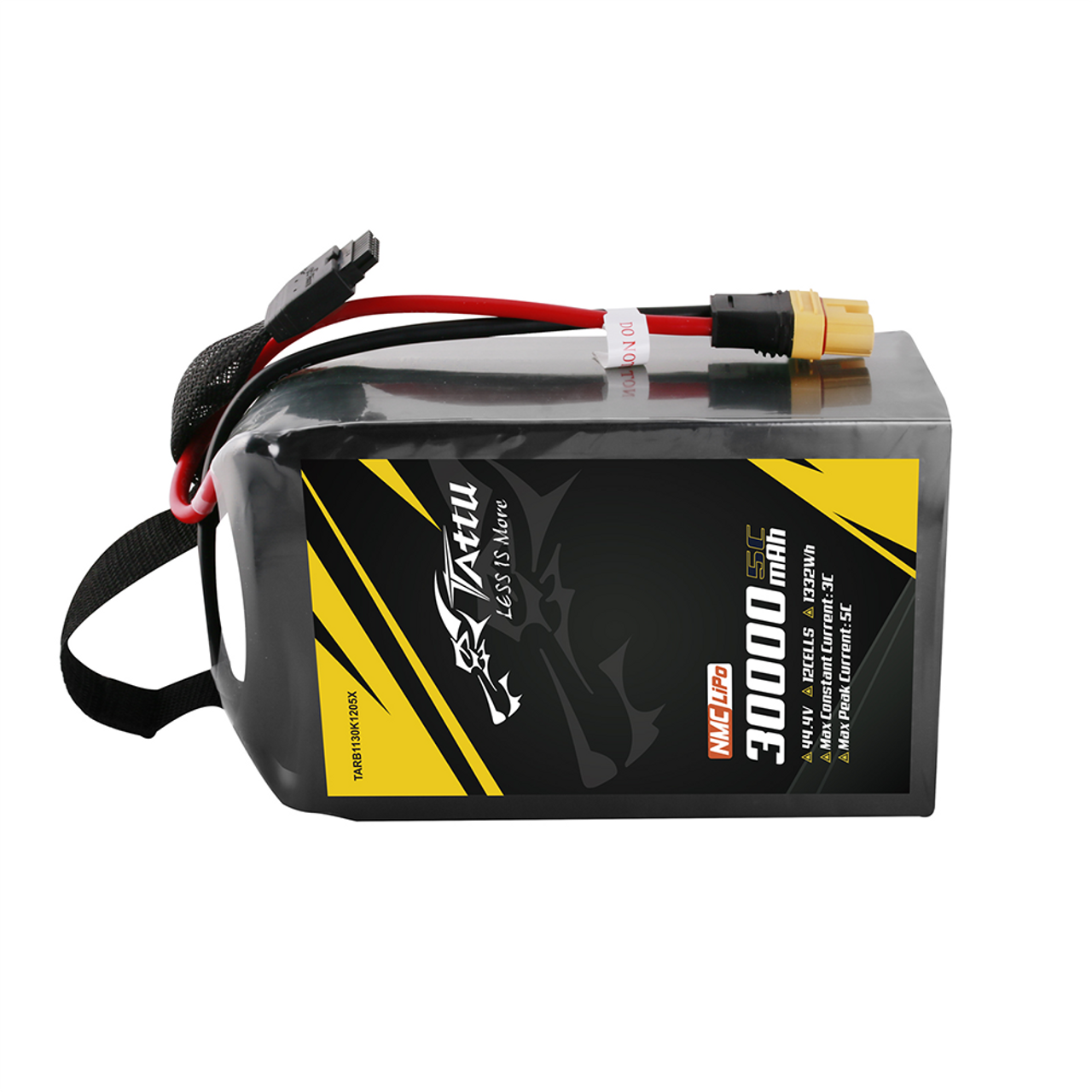

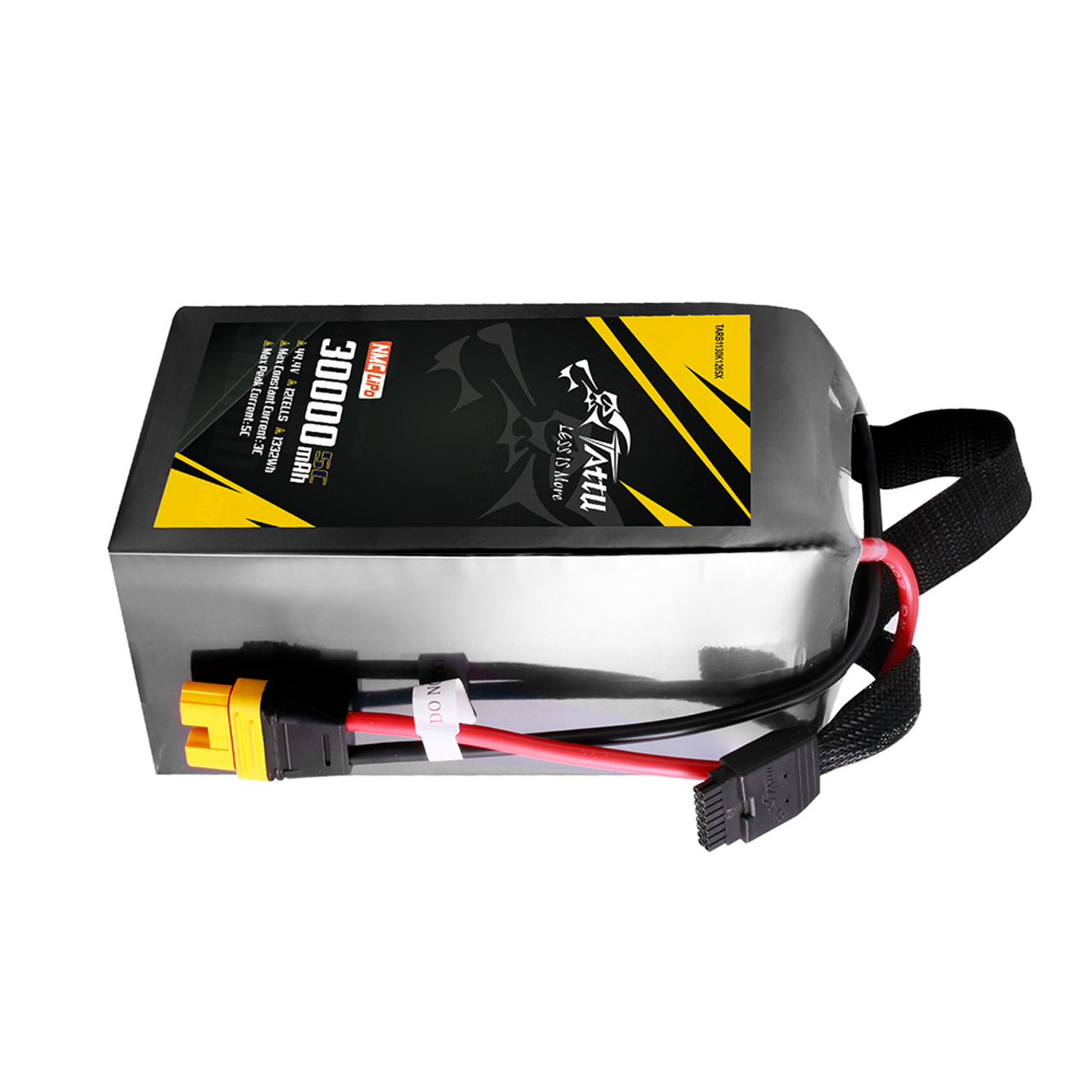

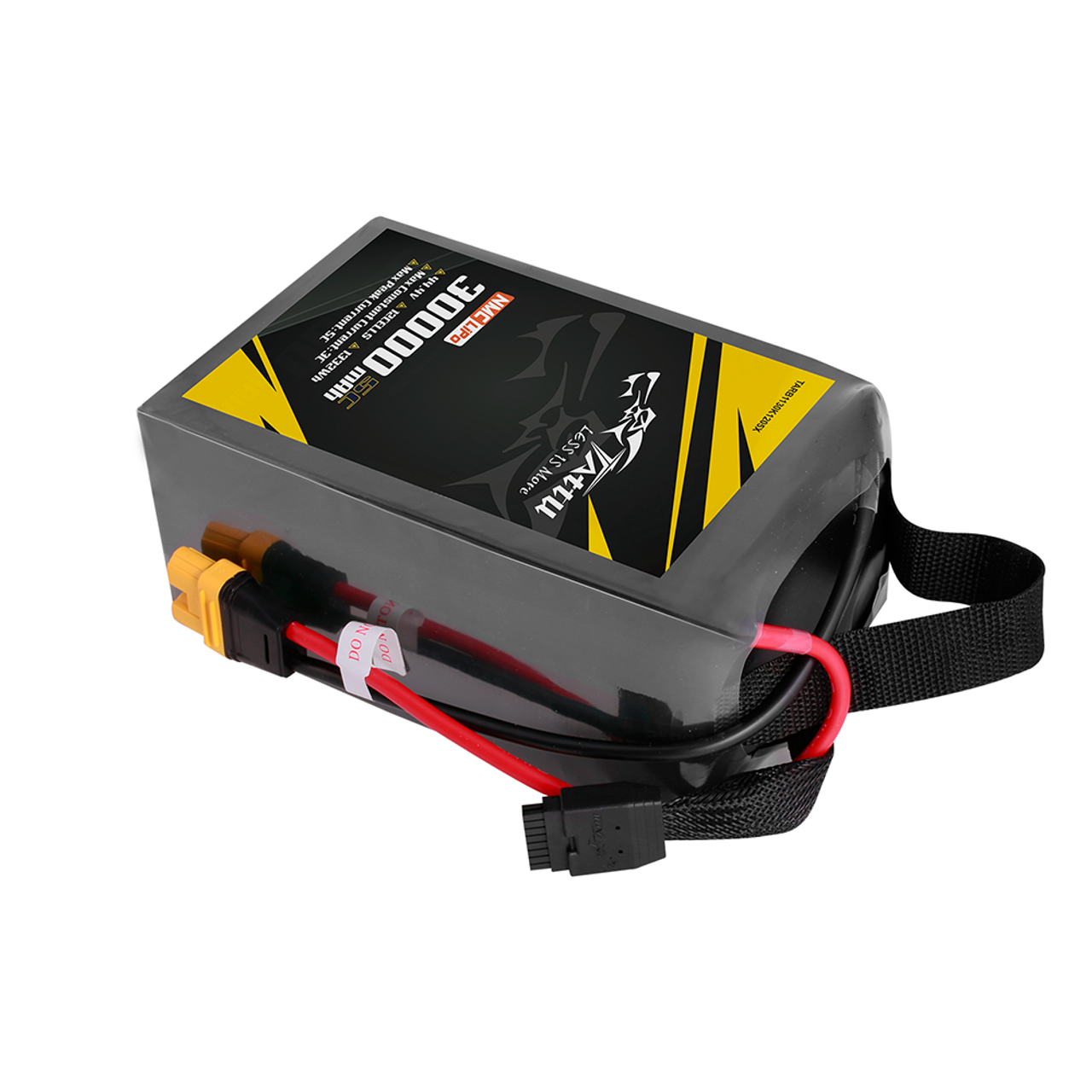

TATTU NMC811 Semi-solid 30000mAh 5C 44.4V 12S1P AS150U-F Lipo Battery is a new kind of Semi-solid lipo battery with high energy density and long service life. It is suitable for a variety of small and medium drones; which always are commonly used for mapping; inspection; surveying; delivery industry; etc. They usually need 1-3C nominal discharge current. The advantages of lighter weight; small volume; and long flight time are fully used.
Battery Specifications:
Capacity: 30000mAh
Voltage: 44.4V/12S
Max Constant Current：3C
Max Peak Current: 5C
NET Weight(±20g): 4900g
Size: 212*90.5*132mm
Discharge Connector Type: AS150U-F
Balancer Connector Type: Molex-430251600
Features
- Energy Density:
284.62Wh/kg – This is a high energy density, suitable for applications where weight and energy storage are critical.
- Safety Performance:
Voltage Range: From 4.2V to 2.75V when SOC is from 100% to 0%. This range suggests good safety management within the battery’s operating limits.
- Discharge Rate:
Max Constant Current: 3C
Max Peak Current: 5C < 3 seconds
These rates indicate the battery’s ability to deliver power quickly and efficiently.
- Cycle Life:
Over 300 cycles – The battery maintains its performance over a significant number of charge-discharge cycles.
Technical Features:
- Ultra-High Nickel Technology:Likely contributes to higher energy density and overall battery performance.
- Silicon Carbon Anode: Enhances the battery’s capacity and cycling stability.
- Coated Diaphragm Technology:Improves safety and performance by enhancing the separator’s strength and stability.
- Solid Electrolyte:Offers improved safety and performance, reducing the risk of leakage and enhancing the battery’s life.
These features suggest a battery designed for high-performance applications, such as drones, electric vehicles, or other advanced electronics. If you have any specific questions or need further details, feel free to ask!
Charger:
Recommended use of the Tattu matching charger: TA1000
Tattu TA1000 G-Tech Dual-Channel Charger 25A*2 1000W For 1S-7S Drone Battery
Check for more Tattu UAV/Drone Chargers.
Download Bluetooth Guide:
