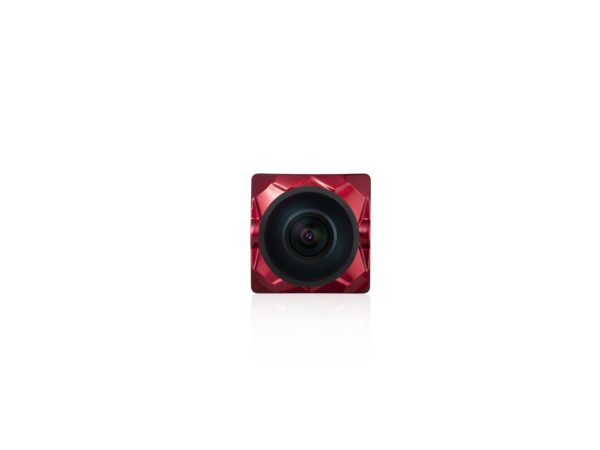

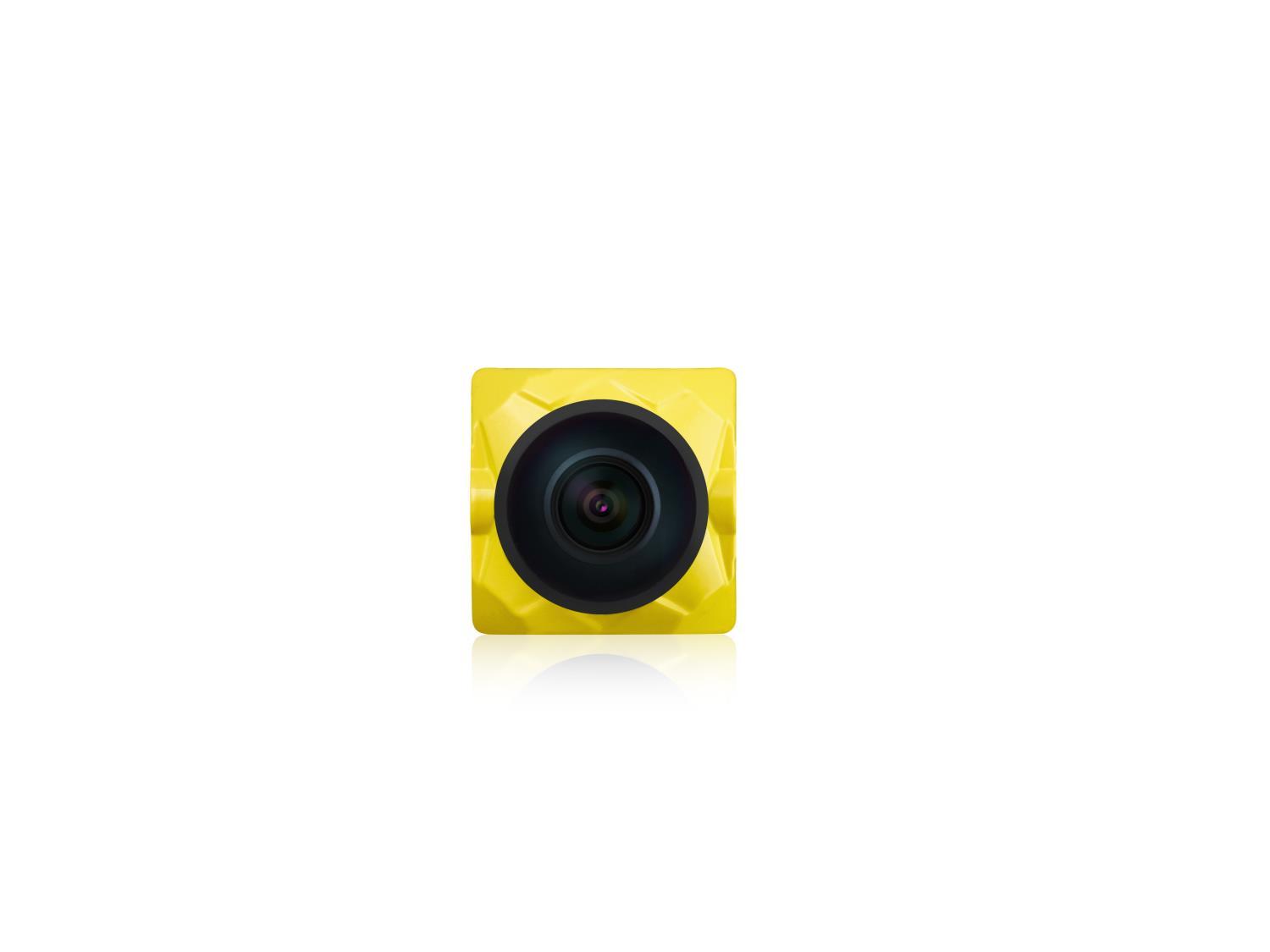

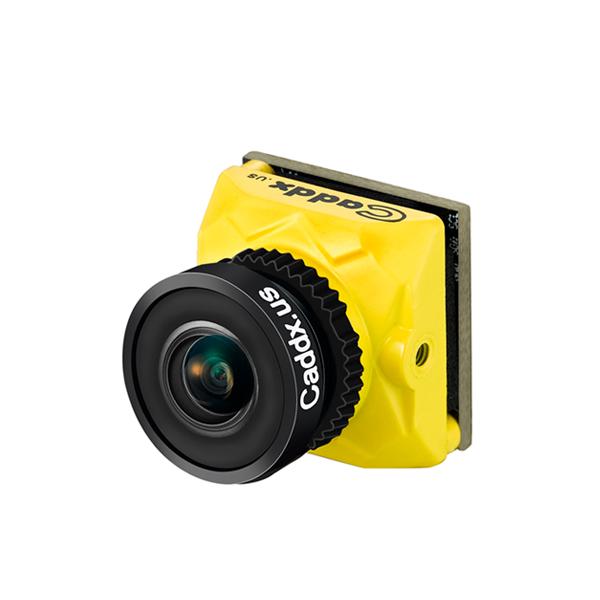

Caddx Ratel

USD $30.99USD $36.99

Earn up to 36 Points.

Caddx Ratel is an excellent choice for night FPV flying and offers superb FPV feed even under faint light.

Clear

StumbleUpon

Earn 100 points for reviewing this product

SKU: N/A Category: Tag:

Description

Lenses

Night Vision 2.1mm Lens

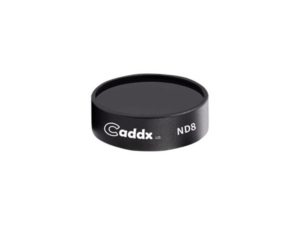

Remove JELLO 2.1mm lens +ND8
180° Large angle 1.66mm lens

Specification

Model Caddx Ratel
Image Sensor 1/1.8″ Inch starlight HDR sensor
Horizontal Resolution 1200TVL
TV System NTSC & PAL  (changeable)
IMAGE 16:9 & 4:3   (changeable)
WDR Super WDR (HDR)
Min. Illumination Starlight
Lens 1.66mm,2.1mm
Synchronization Internal
Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio  >60dB (AGC OFF)
Video Output CVBS
Camera OSD Spearte OSD
DNR 3-DNR
LANGUAGE ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
Day/Night Auto/Color/B&W/EXT
Dimensions 19mm*19mm*19mm
Wide Power Input DC 5-40V
Work Temperature -20~+60
Work Humidity 20%~80%
Weight 8g (N.W.)/ 40.5g (G.W.)

Package Includes

  • 1 x Camera
  • 1 x Aluminum bracket
  • 1 x 5D-OSD menu board
  • 1 x 4pin FPV silicone cable A x1 (extend into a 2pin joint for OSD board and a 3pin joint for FPV)
  • 1 x FPV silicone cable B (2-pin port for both side)
  • 1 x Internal hexagonal wrench
  • 1 x Set of screws
  • 1 x Warranty card
