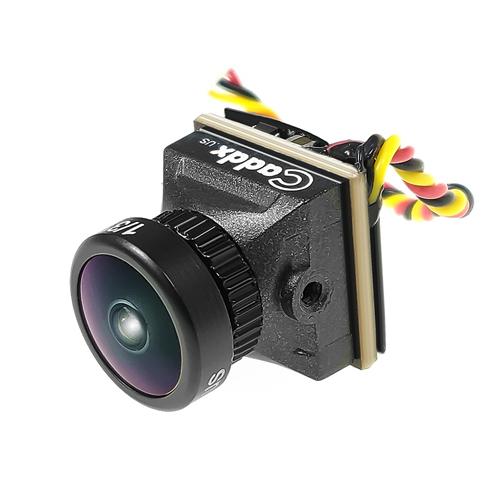

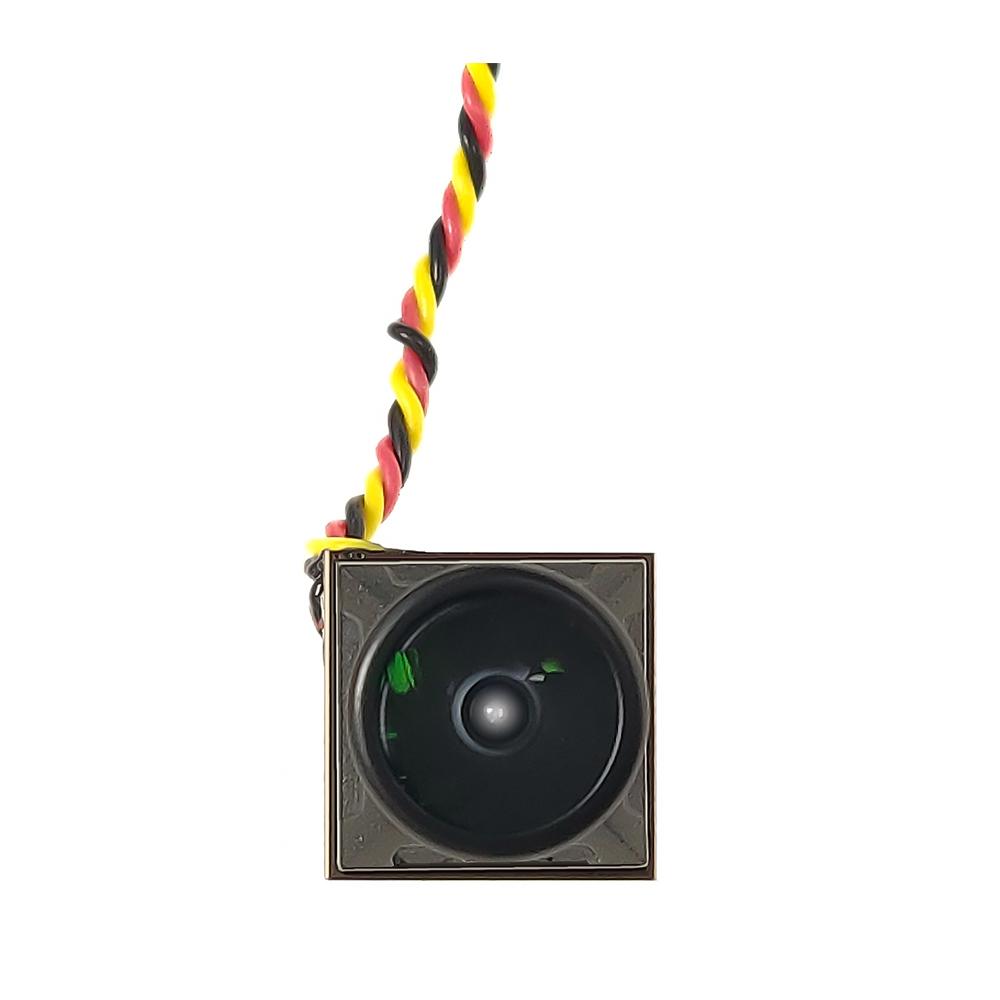

Caddx Turbo EOS 2 1200TVL Micro FPV Camera

USD $14.99

Earn up to 14 Points.

Excellent mini FPV EOS2 camera that offers 1200TVL resolution and WDR, equipped with 1/3 CMOS sensor and 2.1mm lens with a 4:3 or 16:9 projection ratio.

This camera will be an excellent choice for micro/nano FPV drones where low weight is extremely important.

Clear

Earn 100 points for reviewing this product

SKU: N/A Category: Tag:

Description

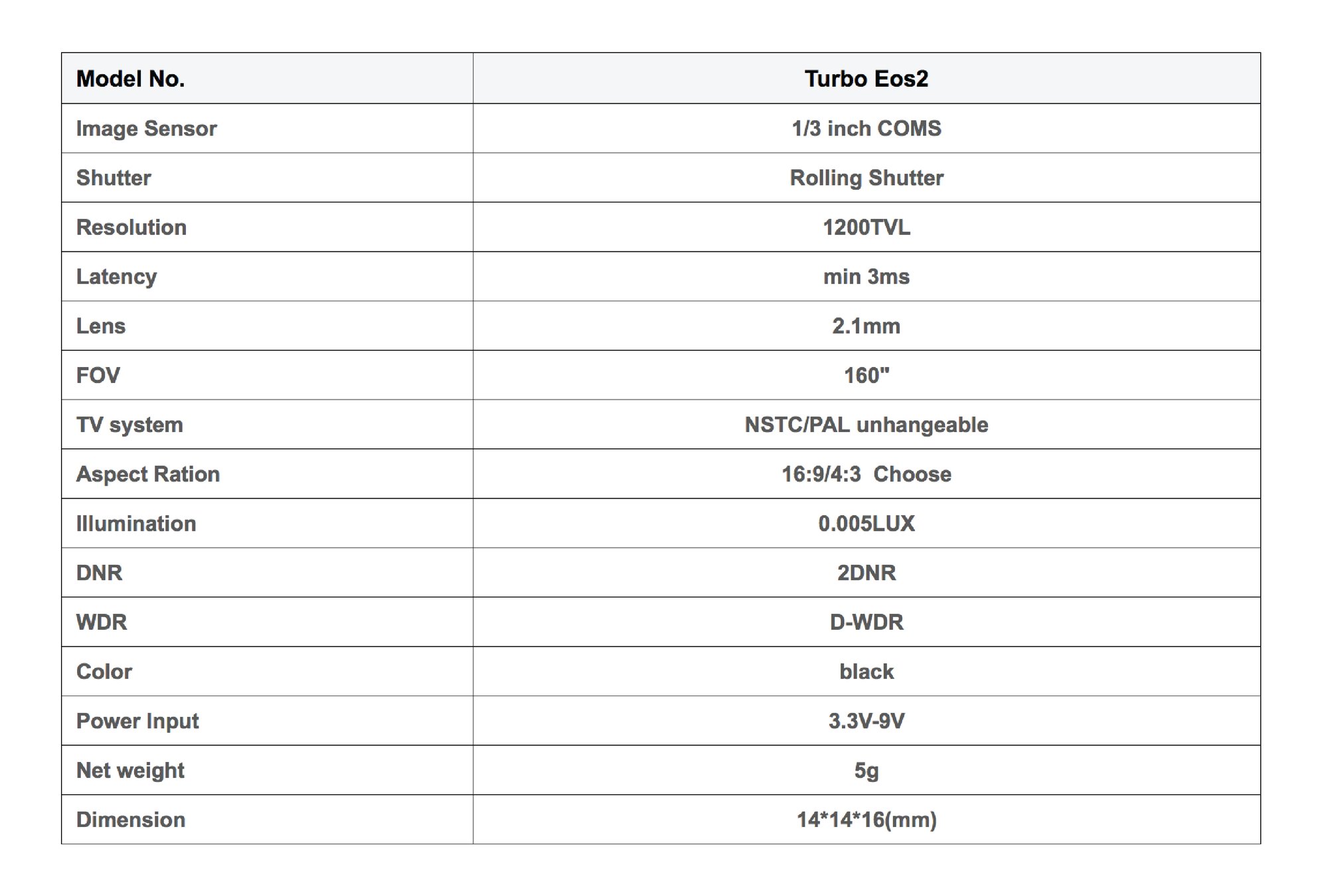

Specification

ModelTurbo EOS12
Image Sensor1/3″ CMOS sensor
Horizontal resolution1200 TVL
Television  systemNTSC / PAL option
My MAGE16:9
SynchronizeInternal
Electronic shutterPAL: 1 / 50~100,000; NTSC: 1 / 60~100,000
Signal to noise ratio> 52dB (AGC OFF)
Video outputCVBS
Lens2.1 mm
Hey. illumination[email protected]
Automatic gain controlYes
BLCYes
WDRGlobal WDR
DNR2 DNR

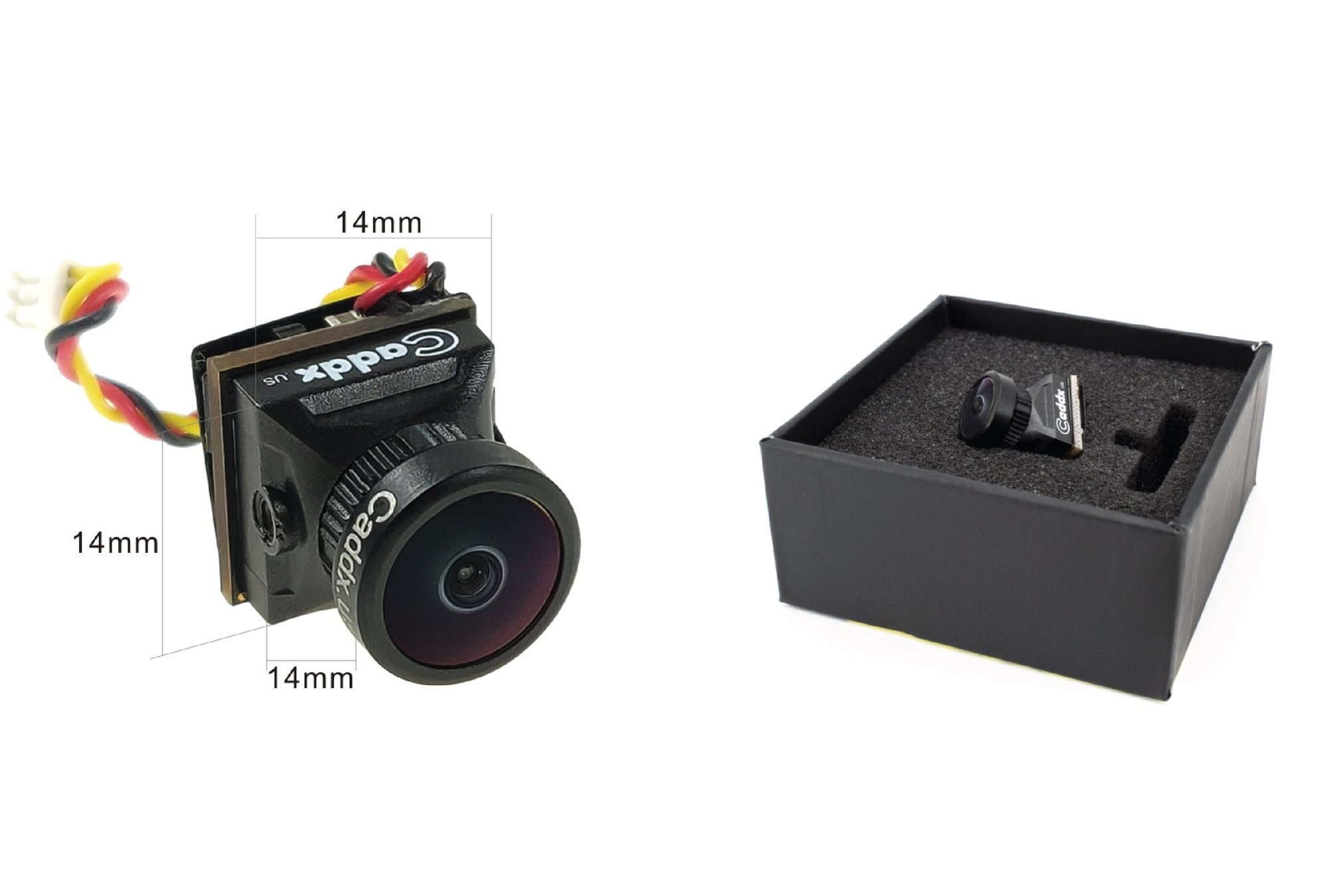

Dimensions14 mm * 14 mm * 16 mm
Wide power inputDC 3.3-6V
Operating temperature-20°C~+ 60°C
Working humidity20%~80%
Weight3.5 grams (net)

Package Includes

1 x camera
1 x Molex Picoblade 1.25mm 3pin FPV silicone cable
1 x screw set
