EMAX Magnum Mini F4 V2 – BLHELI 32 – SmartAudio – 35AMP 6S

Purchase this product now and earn 99 Points!

USD $99.99

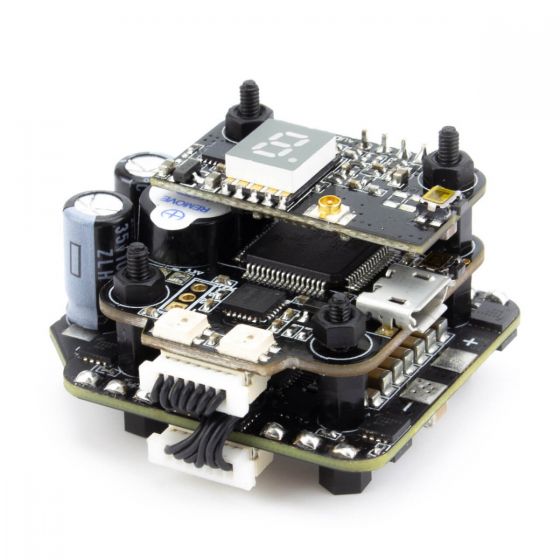

EMAX Magnum Mini F4 is the next generation AIO stack featuring a 35amp BLHELI32 capable ESC, current sensor, built-in buzzer, on-board capacitors and it is capable of running 2-6S batteries.

Magnum Mini F4 is suitable for FPV drone frames of any size, supports changing VTX channels via OSD and comes with everything you need to start using it.

Out of stock

Earn 100 points for reviewing this product

Category: Tags: , , ,

Description

Specifications

Flight Controller

  • MCU: STM32F405
  • MPU: MPU6000 accelerometer / gyro (connected via SPI)
  • On-board OSD
  • On-board Buzzer
  • Integrated 5V/3A BEC
  • Dedicated PPM/SBUS receiver input
  • 30x27mm board with 20×20 mounting holes

Speed Controller

  • Continuous current 35A (max burst 40A)
  • Supports 2-6S batteries (1700kv LIMIT for 6S)
  • STM32F051K6U6 MCU
  • BLHELI_32 with support for DHSHOT, MULTISHOT, ONESHOT125
  • Top quality MOSFET
  • 3oz hight TG PCB board
  • 32x37mm board with 20mm mounting holes

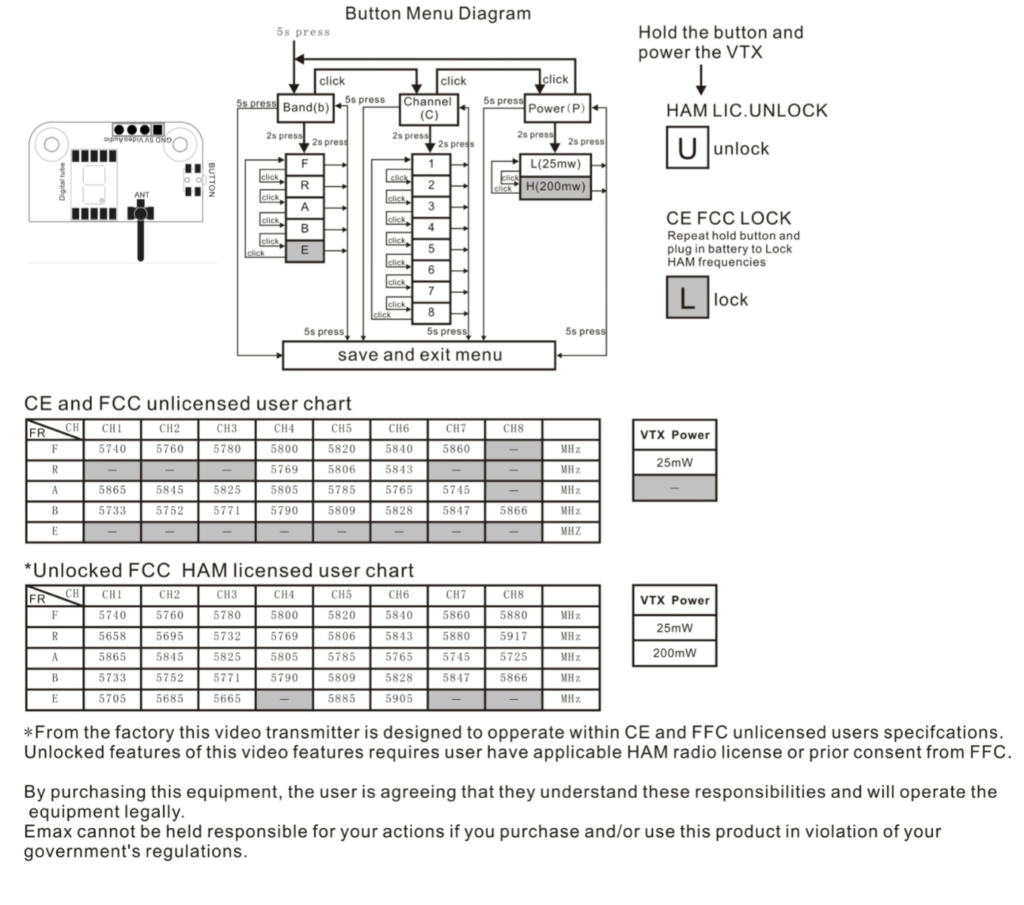

VTX

  • Frequency band 5658-5945MHz FCC Compliant Channels with HAM unlock
  • TBS Audio Control
  • Channel: 37
  • Transmit power: 25mW/200mW
  • Supply voltage: 4.5-5.5V
