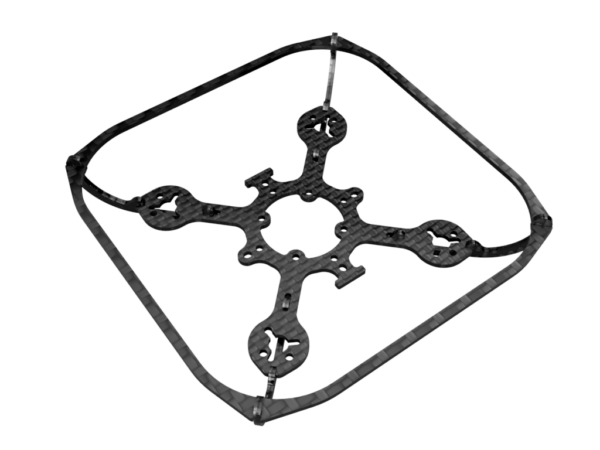

Nano X 75mm – Universal – FPV Drone Frame with Propeller Guard

Purchase this product now and earn 20 Points!
(0 customer reviews)

USD $20.00

It is a prototype frame that we are currently testing, it performs well, but we need more tests before we can remove this notice

Nano X 75mm is very tiny and light modular FPV racing drone frame that supports a wide variety of flight/esc mounting patterns such as 16×16, 20×20, 25.5×25.5 (tinywhoop size of the flight controller) and can accommodate up to 40.5mm propellers with an optional hardware-less propeller protection.

It can also be used as a transplant frame for the drones like BetaFPV 75X, Happymodel Mobula7 and other similar sized drones, but if you are looking for pure transplant frame then please check Nano X 75mm – Conversion

You can fly it with or without propeller guard.

Made for order (Lead time is 1 – 3 business days)

Earn 100 points for reviewing this product

Categories: , , Tags: ,



  • 75mm motor to motor distance
  • Durable 1.5mm all around carbon fiber
  • Hardware-less propeller guard installation
  • Expandable / Extendable modular design
  • Support for 16×16, 20×20 and 25.5×25.5 electronics
  • Unobstructed easy access to Flight Controller USB
  • Support for up to 40.5mm propellers
  • Possibility to use Caddx Turtle, RunCam Split Mini 2

Buy more and save

from 5 pcs.from 10 pcs.
USD $20.00 USD $19.00USD $20.00 USD $18.60

Package Includes

  • Nano X main plate – 1pc
  • Propeller guard – 1pc
  • Propeller guard mounts – 4pcs


  1. kstewartjr77 (verified owner)

    AWESOME is all I can say … took a TBS VIVA FPV whoop and pair it with a set of flexrc 1102 on 2s this thing is a pocket rocket. very nice and stable 600mah 2s stacked crazy pony packs work wonderful with this frame to keep the weight in check and still give you some decent flight times
