Description

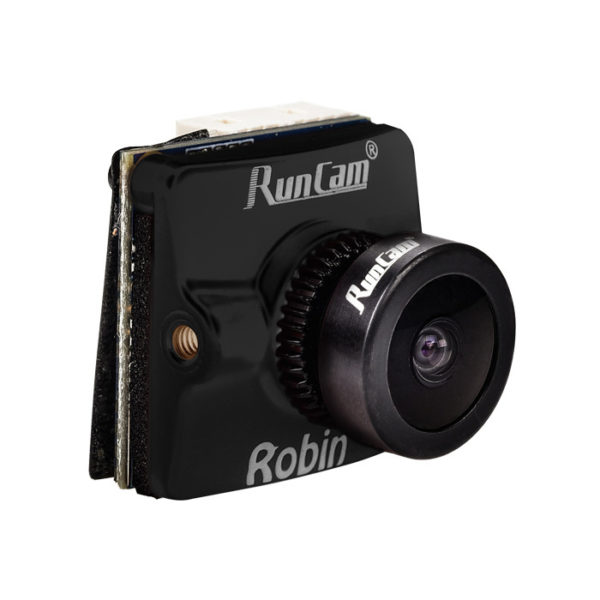

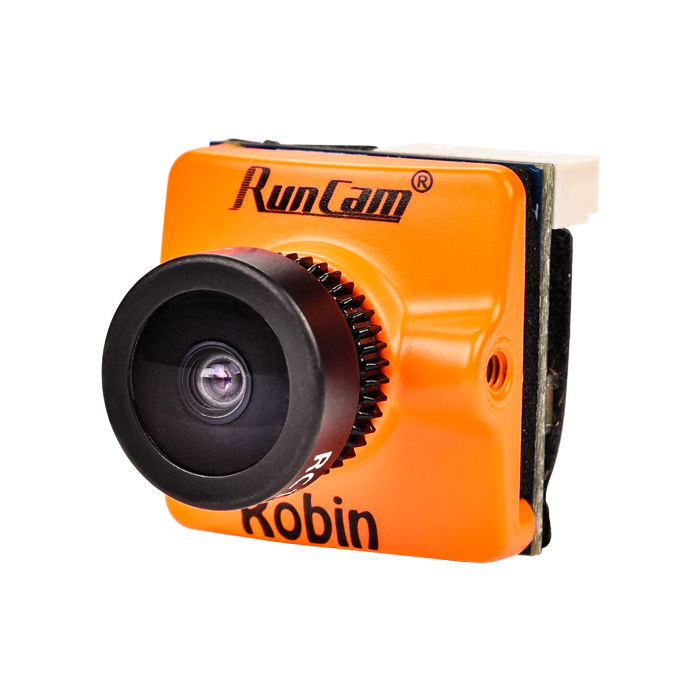

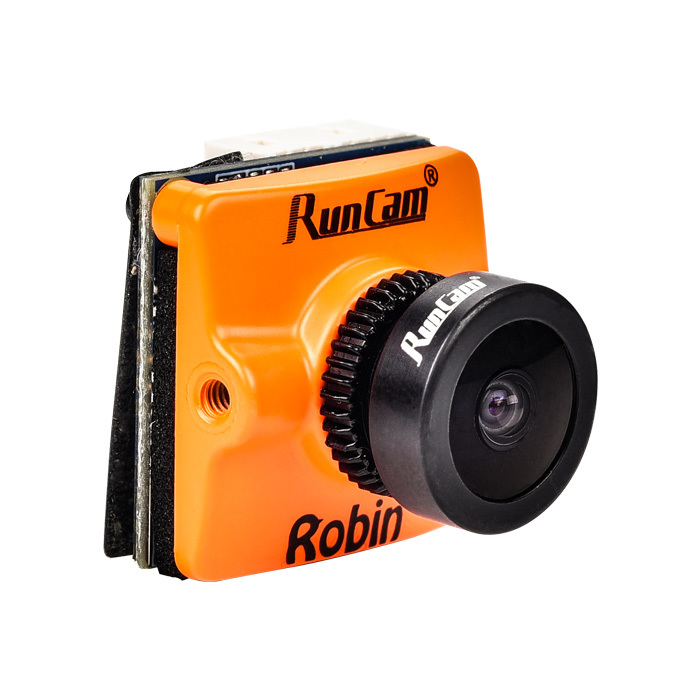

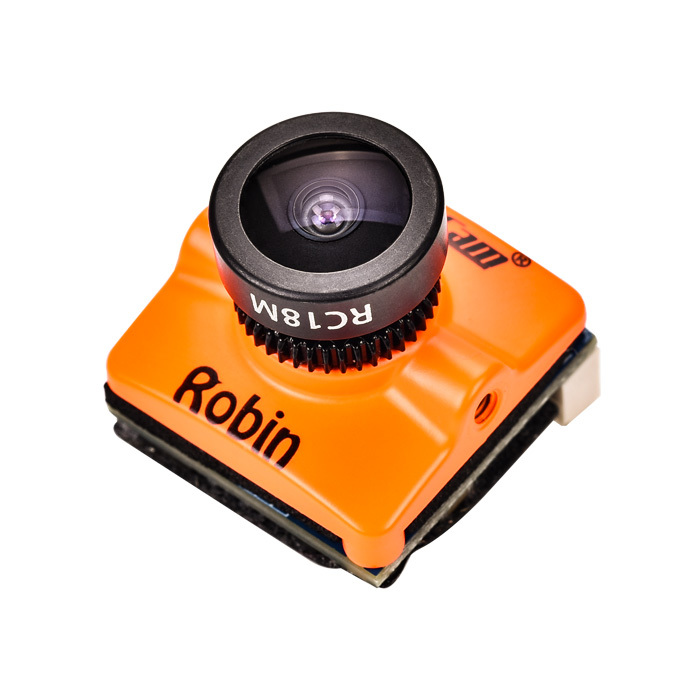

RunCam Robin
700TVL 4:3 CMOS FPV camera
Higher WDR / 120dB
WDR is better than the Eagle
Lower 6ms latency
Latency is better than Swift
NTSC & PAL System Switchable
The default is NTSC system. If you want to change to PAL system, please:

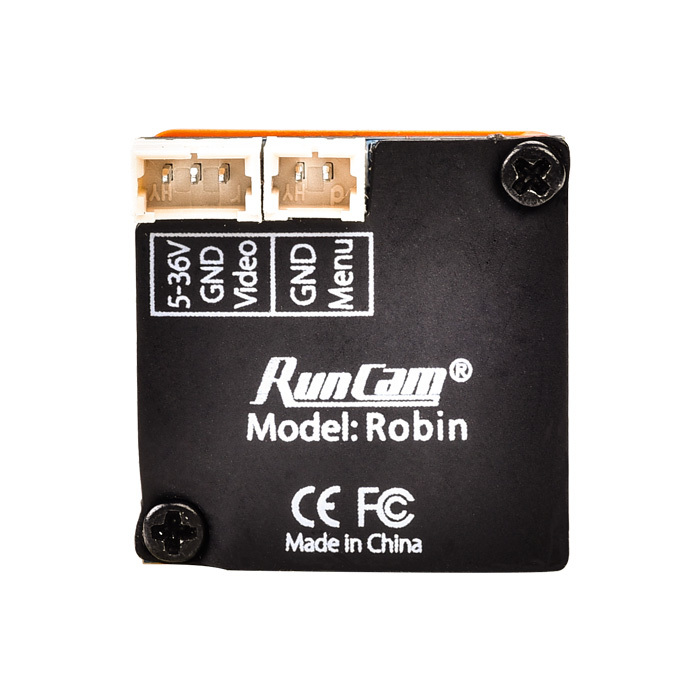

Short-circuit the two camera control pins
Then power on, camera will restart in PAL system in about 2 seconds.
The system can be saved after power off. After switching to the desired system, please unplug the short-circuit cable.
Dimensions
Package
- 1x Camera
- 1x 1928 ABS bracket
- 1x 3pin FPV silicone cable
- 1x Set of screws
- 1x Manual
Parameters
| Model | Robin | ||
| Image Sensor | 1/3″ 120dB WDR CMOS | ||
| Horizontal Resolution | 700TVL | ||
| Latency | 6ms(Min) | ||
| Lens |
| ||
| Mirror/Flip | Available | ||
| Signal System | NTSC / PAL Switchable | ||
| S/N Ratio | >50dB | ||
| Electronic Shutter Speed | Auto | ||
| Auto Gain Control (AGC) | Auto | ||
| Min. Illumination | [email protected] | ||
| WDR | 120dB | ||
| DNR | 2DNR | ||
| Day/Night | Color/B&W | ||
| Menu Control | JOYSTICK | ||
| Power | DC 5-36V | ||
| Current |
| ||
| Housing Material | ABS | ||
| Net Weight | 5.5g | ||
| Dimensions | L19mm*W19mm*H18mm |
