Description

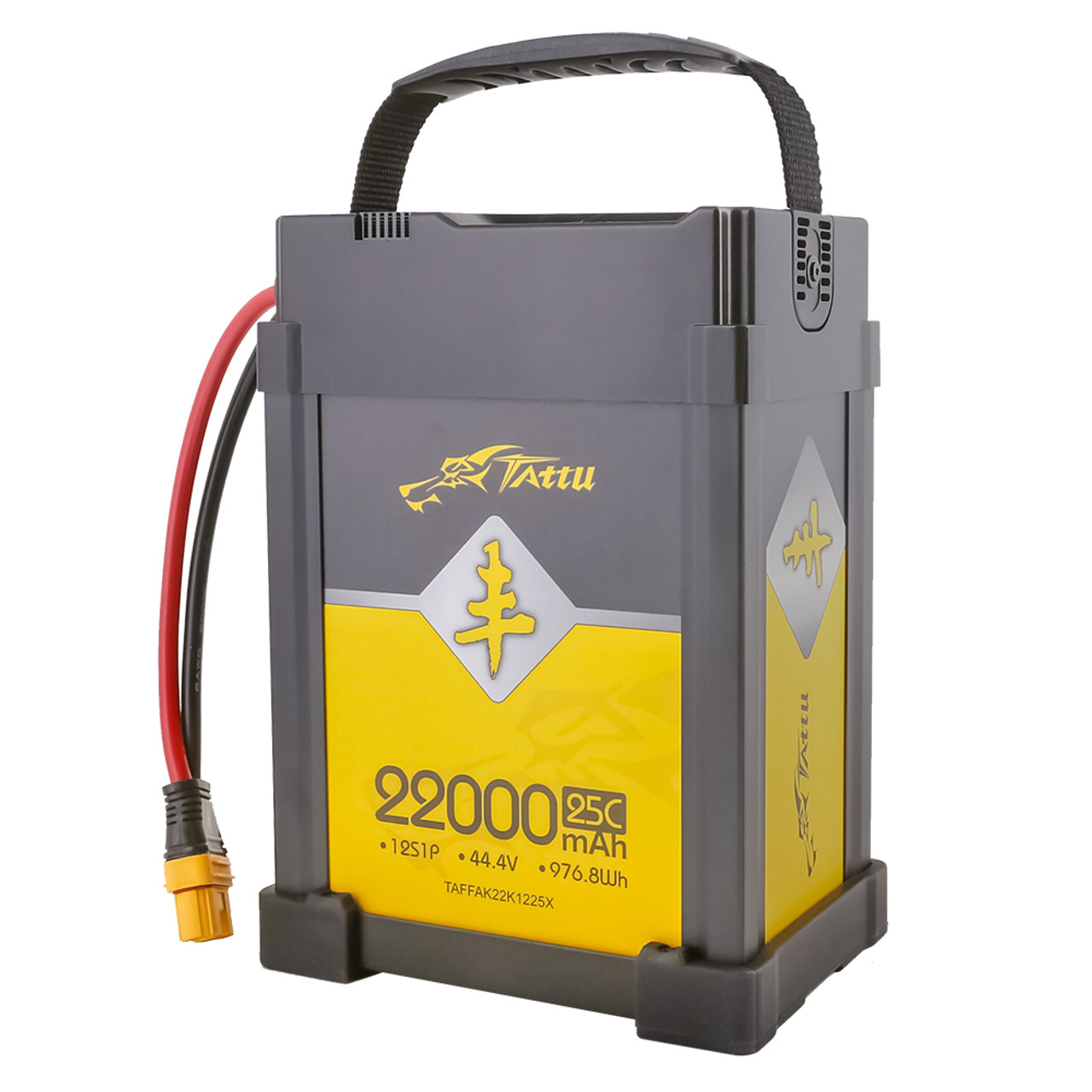

Tattu AGRI 25C 22000 12S1P is specially designed for heavy-lifting drones, including agriculture, delivery, etc., and also applicable for some UGV and Robotics.
Externally Aluminum hard case protects inside cells from corrosion and hit. Internally, the cells design with standard high discharge rate cell, and 1C charging with TA3200 smart charger, the perfect match ensure the smooth progress of your tasks.
Integrates with a PCM, and provides SOC indication and storage functions, when the battery voltage is up to 3.95V per cell, the battery will start to discharge under 10mA to avoid long time storage causing the battery to swell. Drone CAN protocol and Bluetooth are not available in this version, if you want more intelligent functions, please check Tattu Plus 1.0 and Tattu Pro series.
Specifications:
-Minimum Capacity: 22000mAh
– Configuration: 12S1P
-Nominal Voltage: 44.4V
-Power: 976.8Wh
– Net Weight(±100g): 5850g
– Dimensions: 235.5 mm Length x 172mm Width x 116mm Height
– Discharge Plug: AS150U-F
– Operation Temperature: -20 – 60℃
– Charge Temperature: 10-20℃≤0.5C, 20-30℃≤2C; 30-60℃≤5C
– Discharge Temperature: -20-0℃≤0.2C; 0-10℃≤0.5C; 10-60℃≤5C
Download Bluetooth Guide:
Notice:
If you need the similar smart lipo battery, please check the link below.
- Tattu 22000mAh 6S 25C 22.2V Lipo Battery Pack with AS150 +XT150 plug
- Tattu 22000mAh 14.8V 25C 4S1P Lipo Battery Pack with NA plug
- Tattu plus1.0 16000mah 44.4V 12S 15C Smart Battery with AS150U plug
You can also check more other drone lipo batteries, Tattu Chargers.
Our Advantage:
1. Your orders will be dispatched via FedEx from the USA directly.
2. Fast shipping and excellent local after-sale service guaranteed in the USA.
3. Service-priority in the online shop, like the long warranty period and the lower price. We do offer a 90-day-warranty after your order date.
4. Energy Density: Specially adapted to each UAV type and RC car/boat/helicopter type. Very High according to capacity/weight. In fact, we are specialists in High Power Lipo Batteries. It is our unique technology, the highest power of our battery is 100C. Another technology is our batteries are able to be stably discharged simultaneously.
5. Low IR: Provides stable voltage until the end of your mission.
6. Safety: Gens Ace and its’ partners fulfill the ISO9001, ISO14001, standards.
7. See the battery instruction to the link: Lipo Battery Guide.
WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Not Find You Need? Try Our Customized Service; Professional Customized of UAV Drone Batteries and Battery Solutions.
