Description

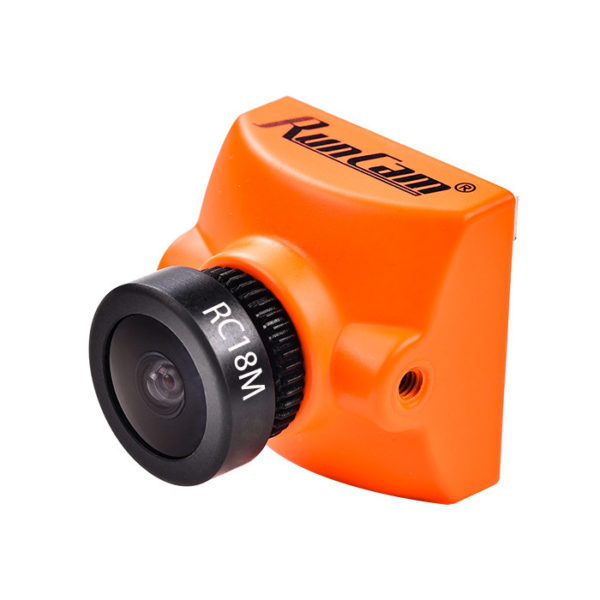

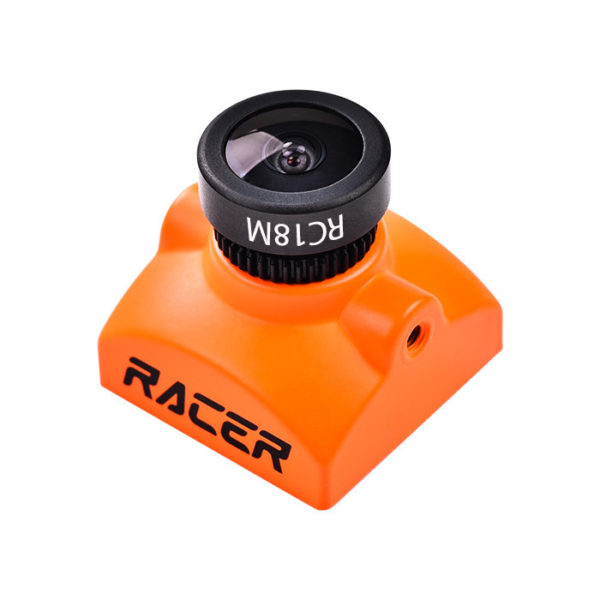

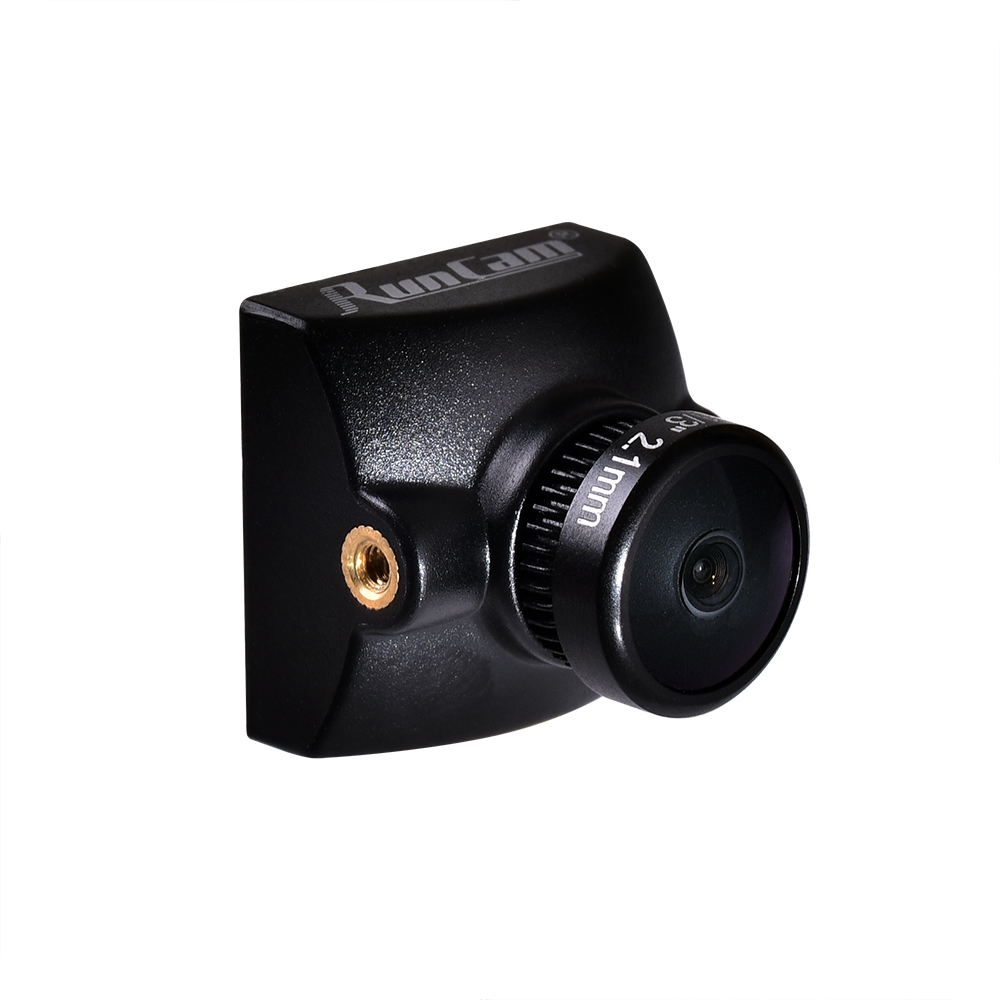

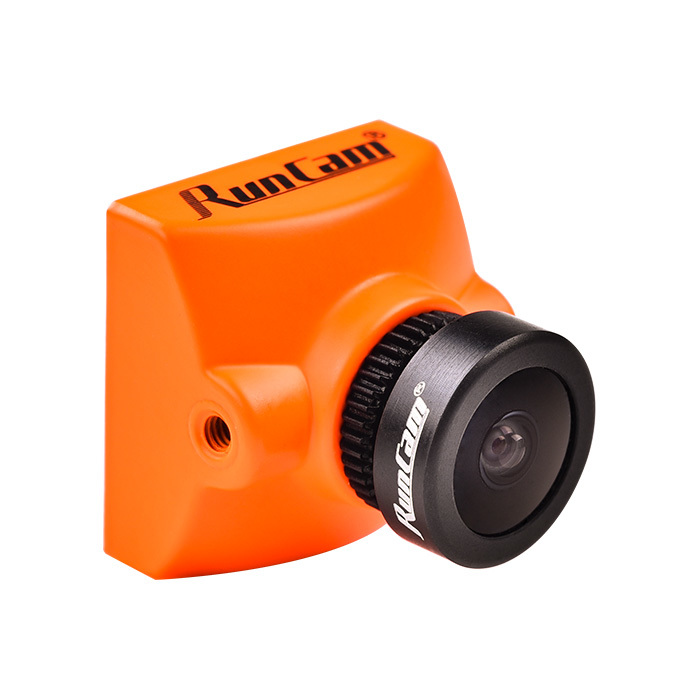

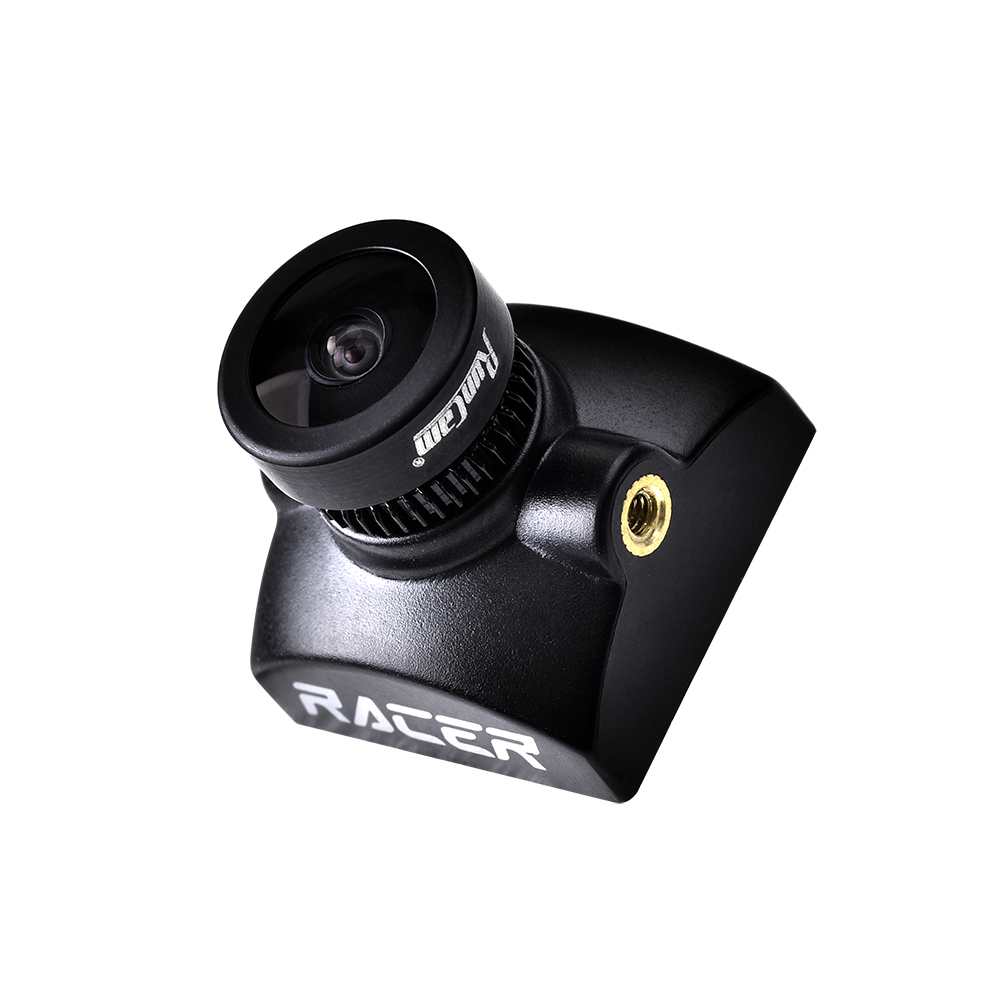

RunCam Racer 2
Evolution For Racing Drone
Features
- 6MS Ultra Low Latency
- Super-WDR
- Micro Size
- FOV 160 (1.8mm lens) or FOV 145 (2.1mm lens)
AIO Switchable
- 4:3
- Widescreen
- NTSC
- PAL
- Joystick Control
- UART Control
Joystick Control & UART Control Switchable
The top left corner of the screen will shortly display the current control mode.
The default is Joystick control mode.

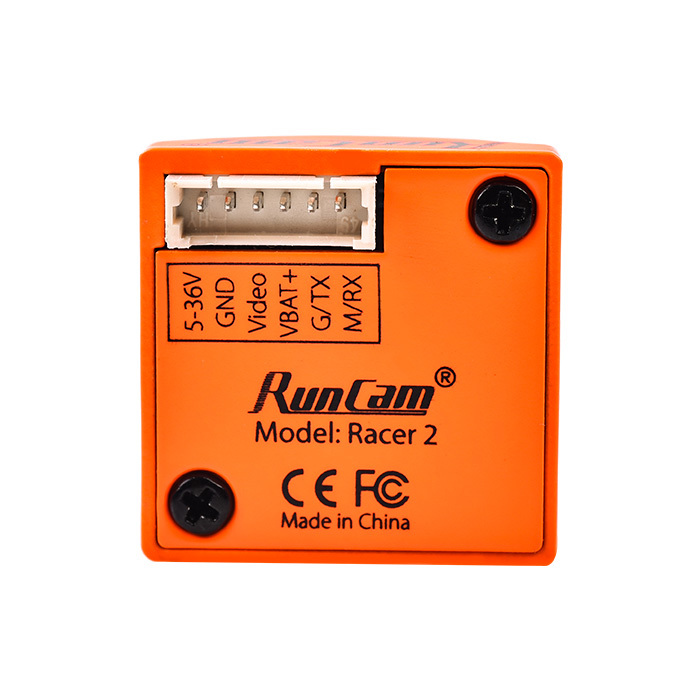

Short the two camera control pins
Then power on, camera will auto switch between the two modes
The mode can be saved after power off. After switching to the desired mode, please unplug the short-circuit cable.
UART Control works with Flight Controllers
BetaFlight 3.3 or above / ButterFlight 3.4 or above / CleanFlight 2.2 or above
Dimensions
Package
- 1x Camera
- 1x 1928 ABS bracket
- 1x 6pin FPV silicone cable
- 1x Set of screws
- 1x SELECTOR
- 1x Manual
Parameters
| Model | RunCam Racer 2 | ||
| Image Sensor | Super WDR CMOS Sensor | ||
| Horizontal Resolution | 700TVL | ||
| Lens |
| ||
| Screen Format | 4:3 / Widescreen Switchable | ||
| Signal System | NTSC / PAL Switchable | ||
| Mirror/Flip | Available | ||
| Integrated OSD | Yes | ||
| One Touch Scene Setting | Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight | ||
| S/N Ratio | >50dB | ||
| Electronic Shutter Speed | Auto | ||
| Min. Illumination | [email protected] | ||
| WDR | Super WDR | ||
| Day/Night | Auto | ||
| Menu Control | Joystick Control / UART Control Switchable | ||
| Power | DC 5-36V | ||
| Current | [email protected] / [email protected] | ||
| Housing Material | ABS | ||
| Net Weight | 5.5g | ||
| Dimensions | L19mm*W19mm*H18mm |
