Description

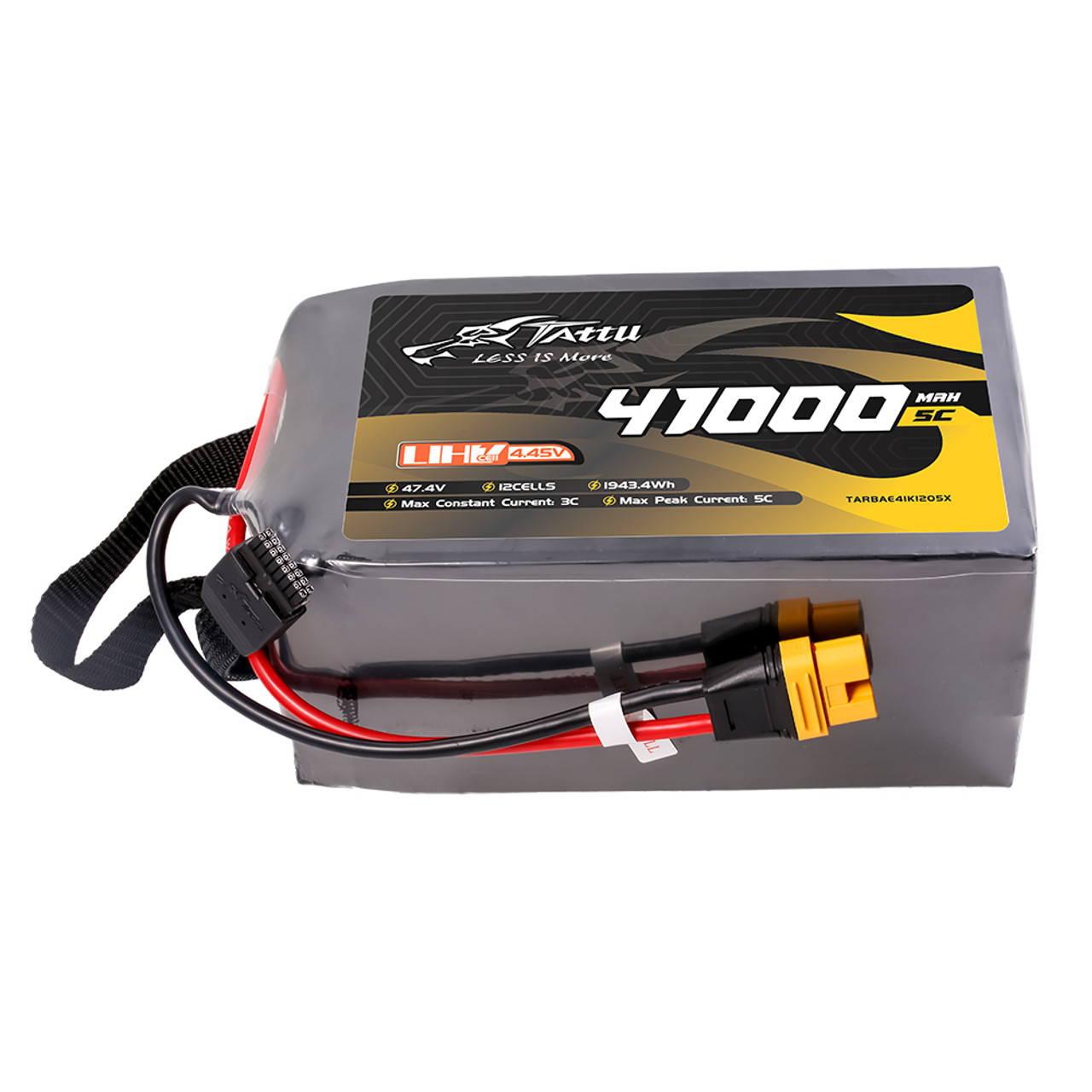

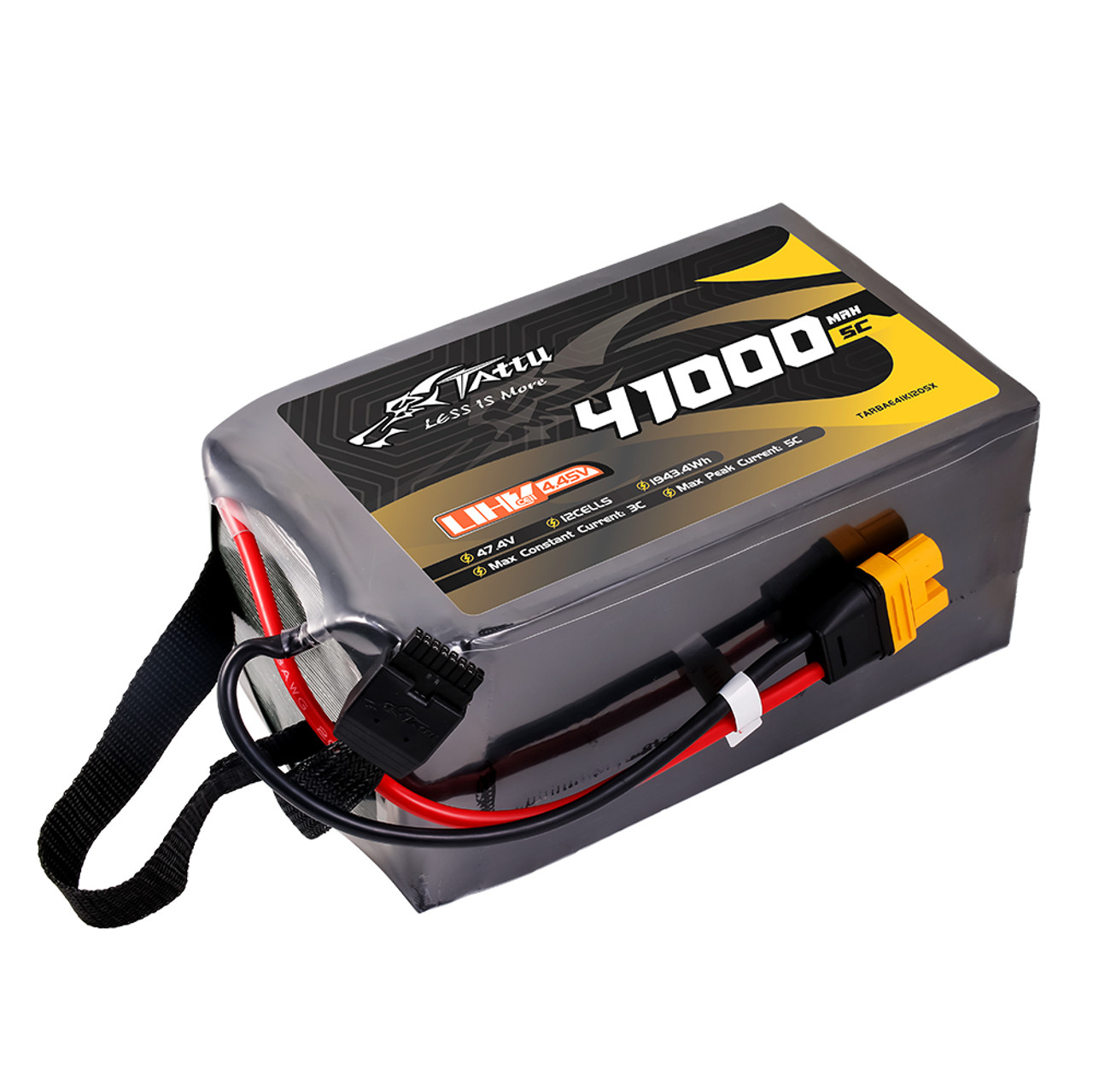

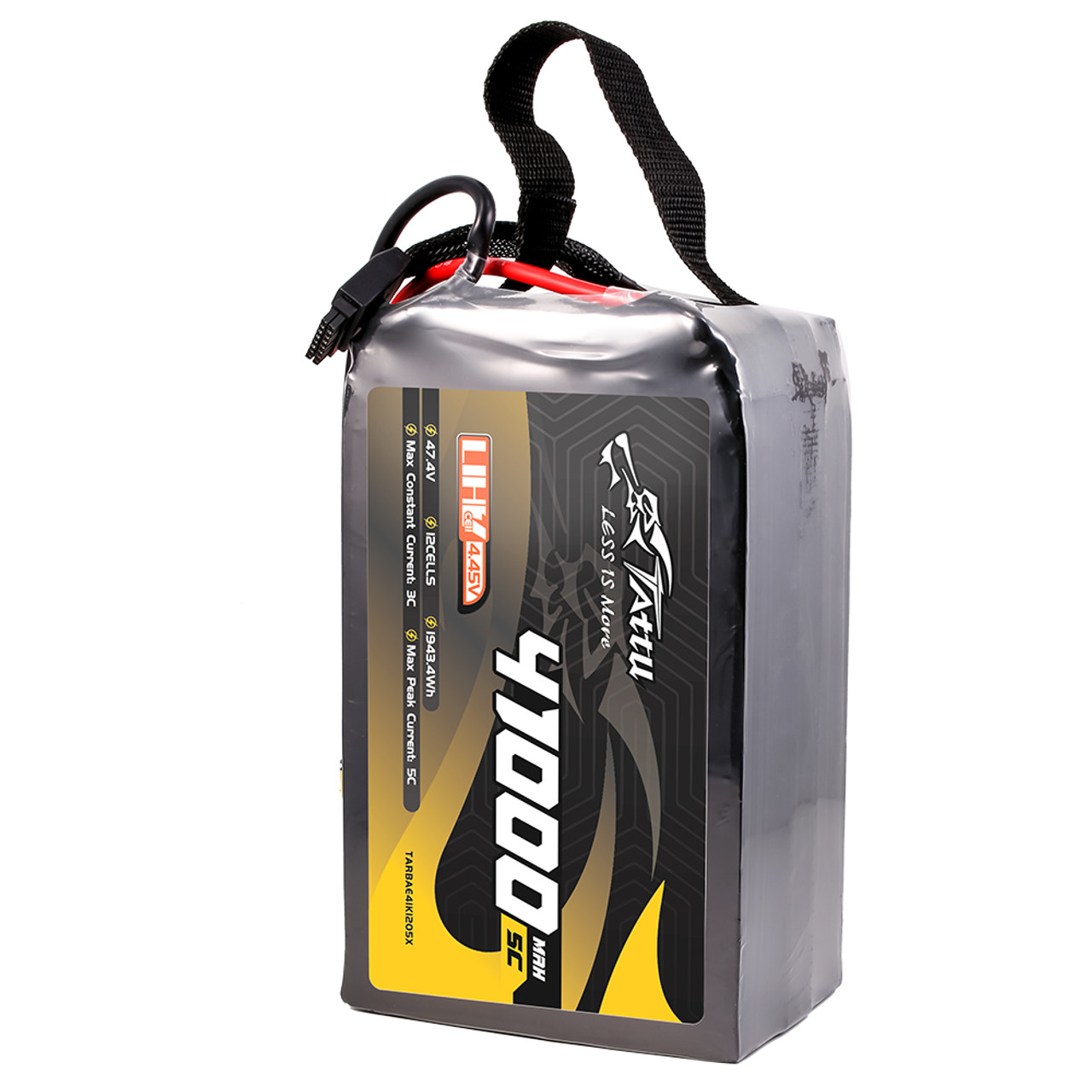

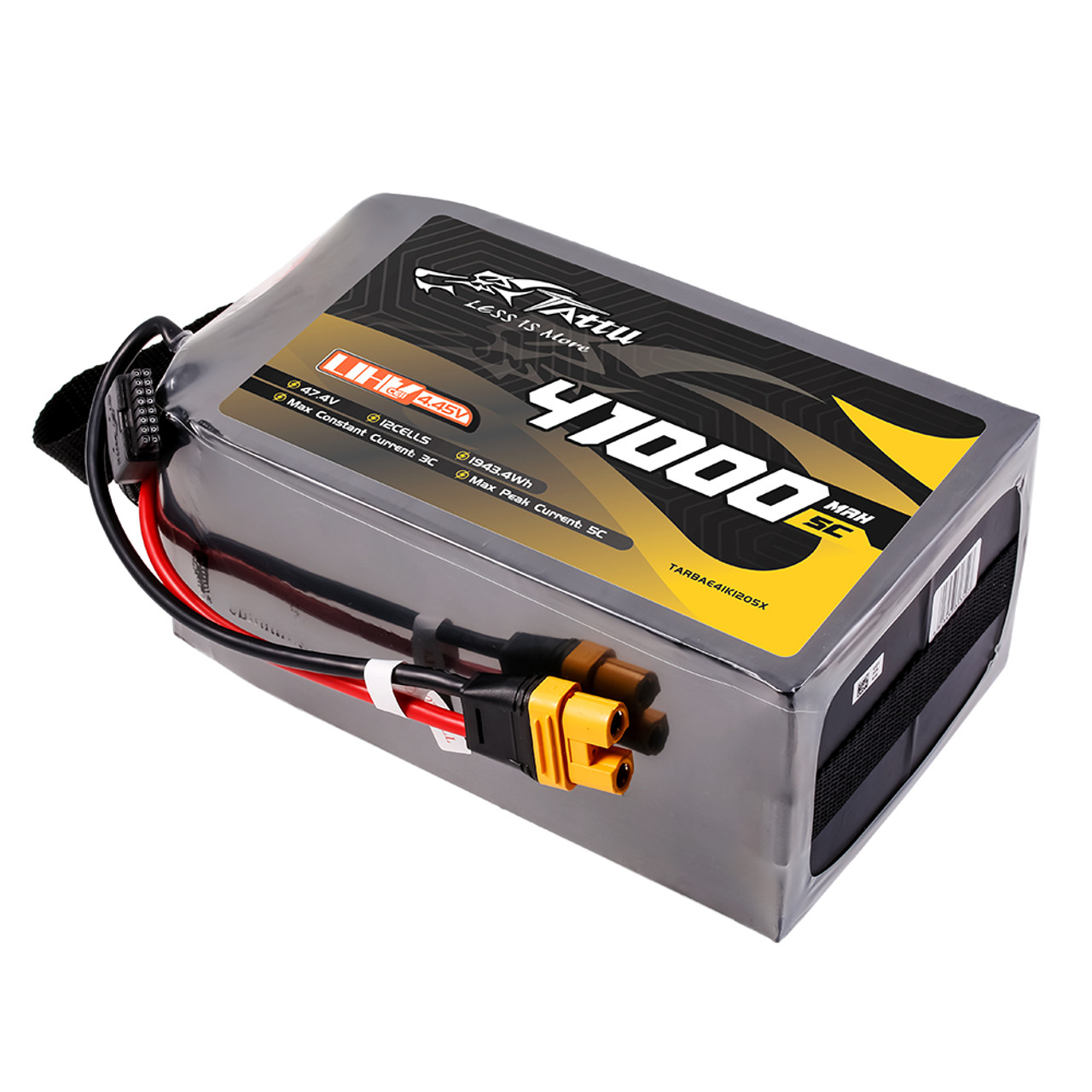

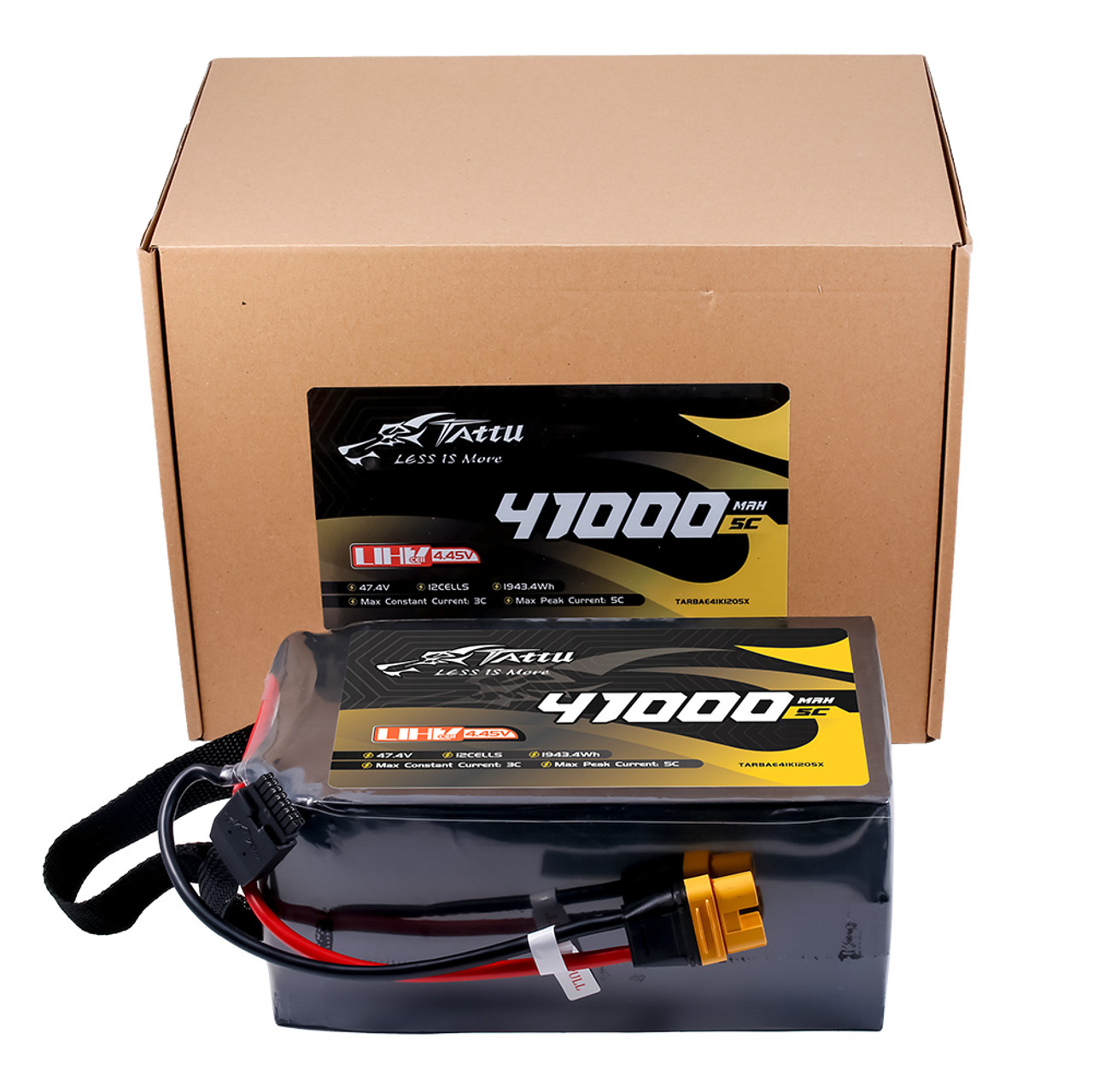

TATTU G-Tech Ultra High Voltage Battery is an advanced ultra-high-voltage LiPo battery featuring high energy density. With a full charge voltage of 4.45V per cell, it utilizes advanced graphite anode technology to deliver exceptional performance. This battery is perfect for applications that require both high capacity and power output, such as industrial drones used in surveying, delivery, and inspection etc.
Battery Specifications:
- Capacity: 41000mAh
- Voltage: 47.4V/12S
- Standard Constant Current: 100A
- Max Constant Current：150A (≤3S)
- Net Weight(±20g): 7250g
- Size: 234x104x140mm
- Discharge Connector Type: AS150U-F
- Balancer Connector Type: Molex-430251600
- Discharge Wire: 8# 250mm
- Charge Wire: 22# 85mm
Technical Features:
- High Energy Density: 280Wh/kg
- High Voltage: 4.45V/cell
- Safety Performance: Voltage range of 4.45V to 3.0V per cell when the State of Charge (SOC) is from 100% to 0%.
- Cycle Life of Pack: 300+ cycles, with 80% of the initial capacity retained after those cycles.
These features suggest a battery designed for high-performance applications, such as drones, electric vehicles, or other advanced electronics. If you have any specific questions or need further details, feel free to ask!
Recommended Charger:
Tattu matching charger: TA1000 / TA7200PRO
Check for more Tattu UAV/Drone Chargers.
Download Bluetooth Guide:
Our Advantage:
1. Your orders will be dispatched via FedEx from the USA directly.
2. Fast shipping and excellent local after-sale service guaranteed in the USA.
3. Service-priority in the online shop, like the long warranty period and the lower price. We do offer a 90-day-warranty after your order date.
4. Energy Density: Specially adapted to each UAV type and RC car/boat/helicopter type. Very High according to capacity/weight. In fact, we are specialists in High Power Lipo Batteries. It is our unique technology, the highest power of our battery is 100C. Another technology is our batteries are able to be stably discharged simultaneously.
5. Low IR: Provides stable voltage until the end of your mission.
6. Safety: Gens Ace and its’ partners fulfill the ISO9001, ISO14001, standards.
7. See the battery instruction to the link: Lipo Battery Guide.
