Description
Features
Only 57mm motor to motor and easy access to USB
Incredibly tiny
Supports 0703 and 11xx motors
Latest version supports 4x M2 8.5-9mm mounting pattern as well as up to 3x m1.6 6.5mm mounting pattern.
Supports 20×20 and 16×16 electronics
- 57mm motor to motor distance
- Durable 1.5mm all around carbon fiber
- Light weight:
- 3.8g base plate with extension plate
- 7.59g full setup with propeller guard
- Hardware-less propeller guard installation
- Expandable / Extendable modular design
- Support for 20×20 electronics
- Support for 16×16 electronics
- Unobstructed easy access to Flight Controller USB
- Support for up to 40.5mm propellers
Recommended parts
Flight Controller
- TinyPepper 1S Cube – FC + ESC combo solution

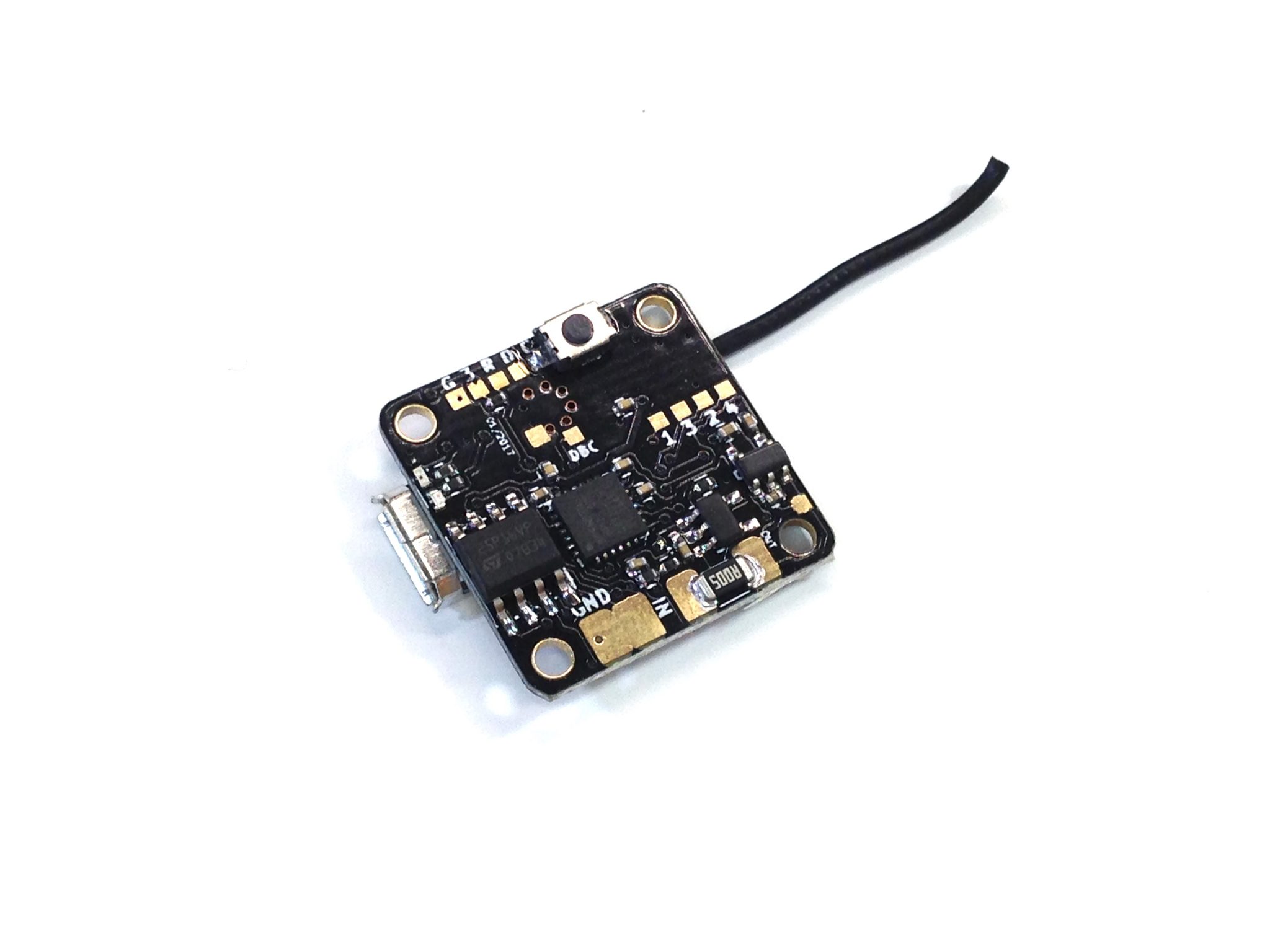

- TinyFish Flight Controller with FrSky receiver
- Furious FPV Racewhoop Flight Controller
Speed Controller
Motors
- FlexRC FX1102 15000kv – excellent for 1-2s high performance
- FlexRC FX1102 12500kv – perfect for 2s with longer flight times
- SunnySky 0703 15000kv – great for smaller 1s batteries, but can be used with 2s as well
Propellers
- 535 38mm Propellers – 4 blade – For 1102 motors
- 40mm 3-Blade Propellers – For 0703 motors
FPV
Accessories
Betaflight and Blheli settings
Flight Controller
- TinyPepper 1S Cube – FC + ESC combo solution
- TinyFish Flight Controller with FrSky receiver
- Furious FPV Racewhoop Flight Controller
Speed Controller
Motors
- FlexRC FX1102 15000kv – excellent for 1-2s high performance
- FlexRC FX1102 12500kv – perfect for 2s with longer flight times
- SunnySky 0703 15000kv – great for smaller 1s batteries, but can be used with 2s as well
Propellers
- 535 38mm Propellers – 4 blade – For 1102 motors
- 40mm 3-Blade Propellers – For 0703 motors
FPV
Accessories
Betaflight and Blheli settings

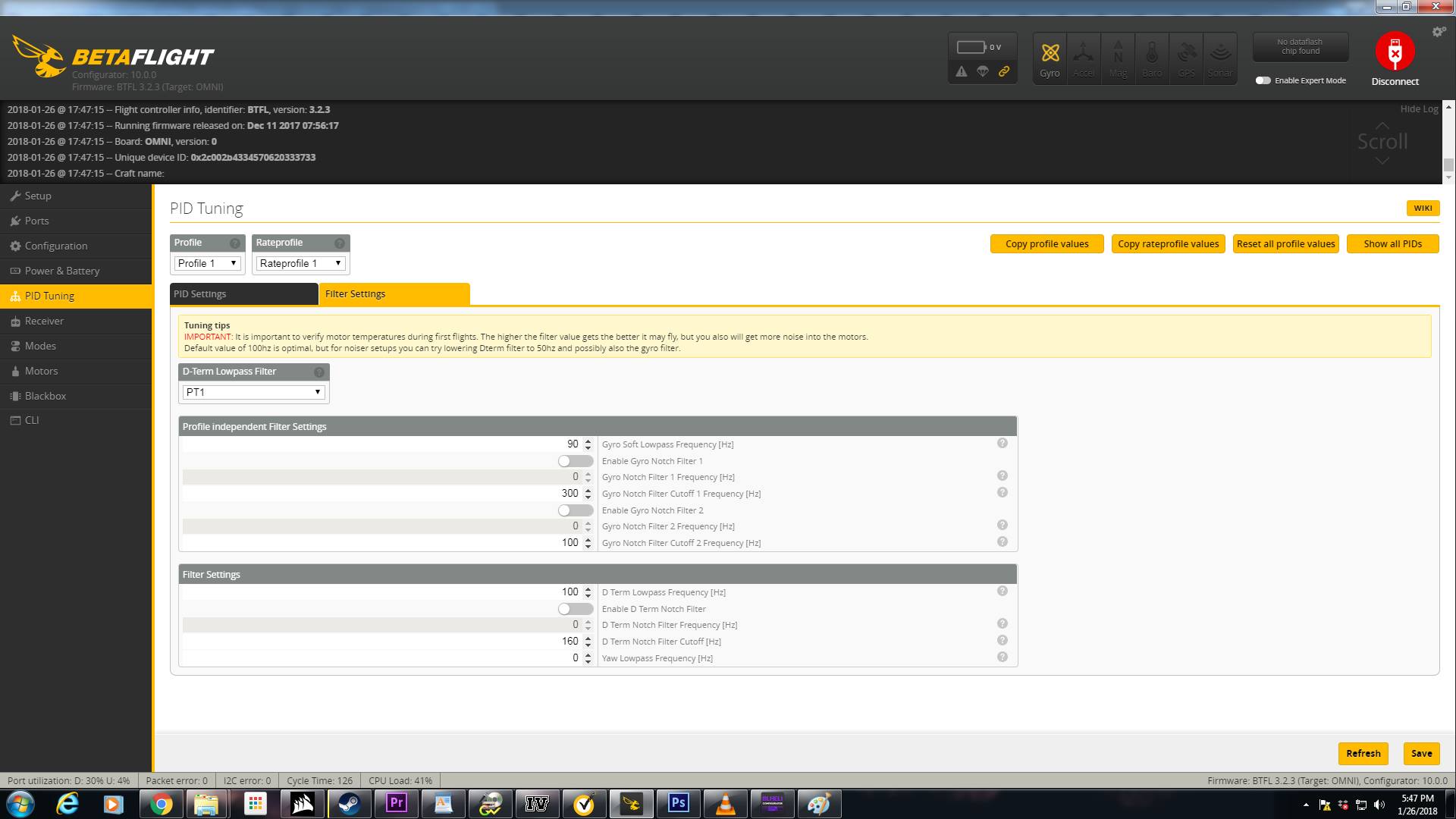

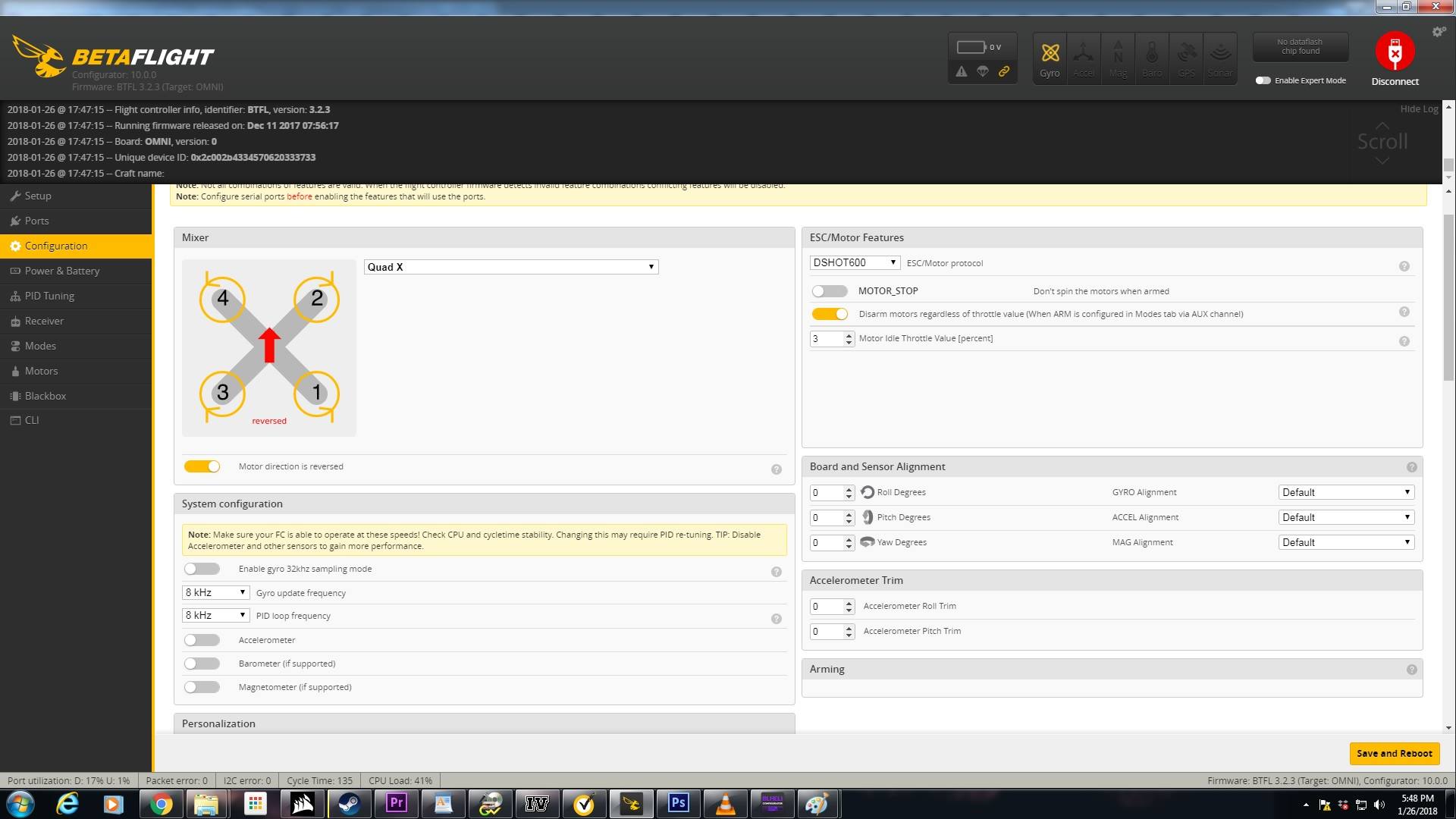

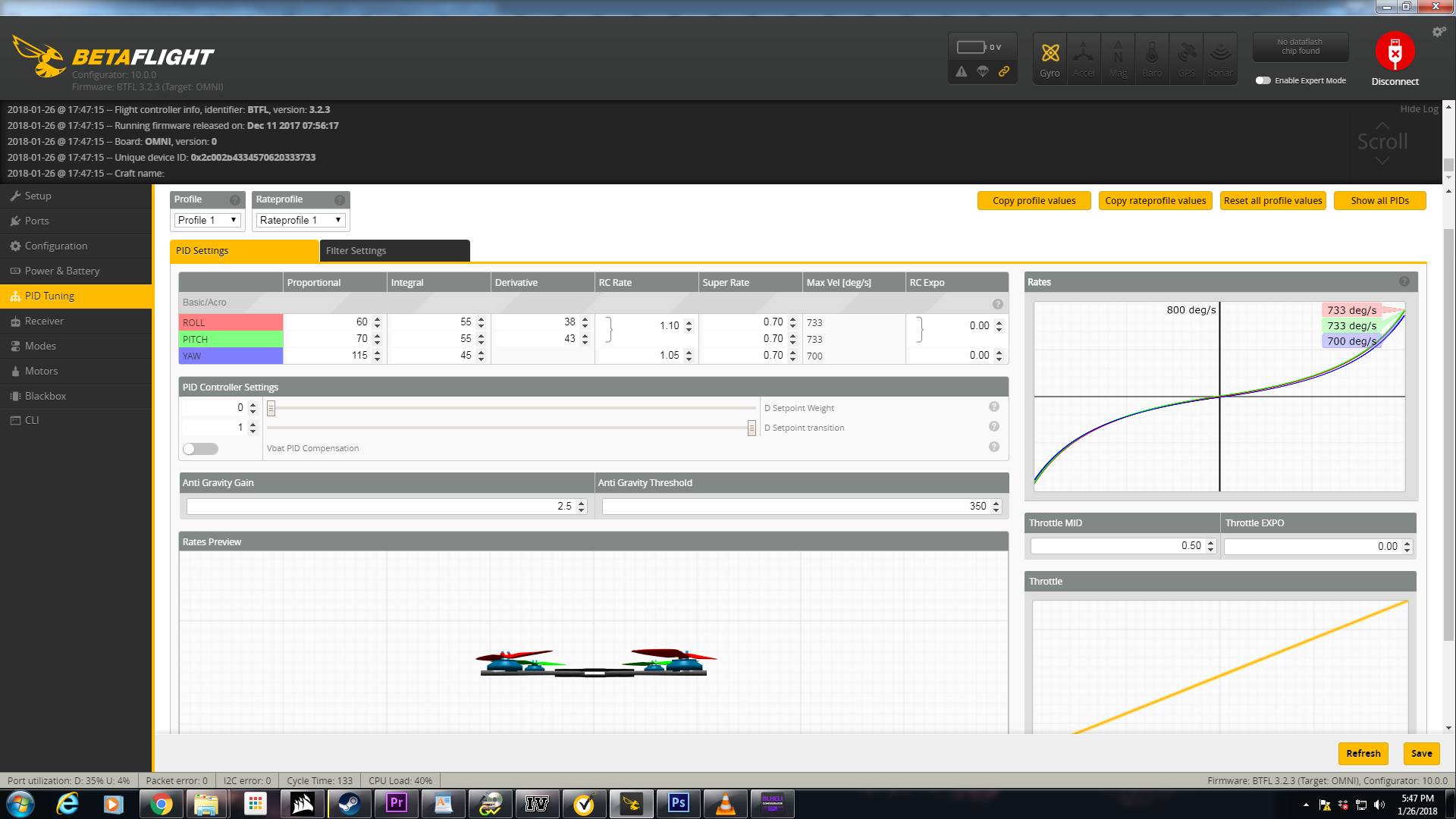

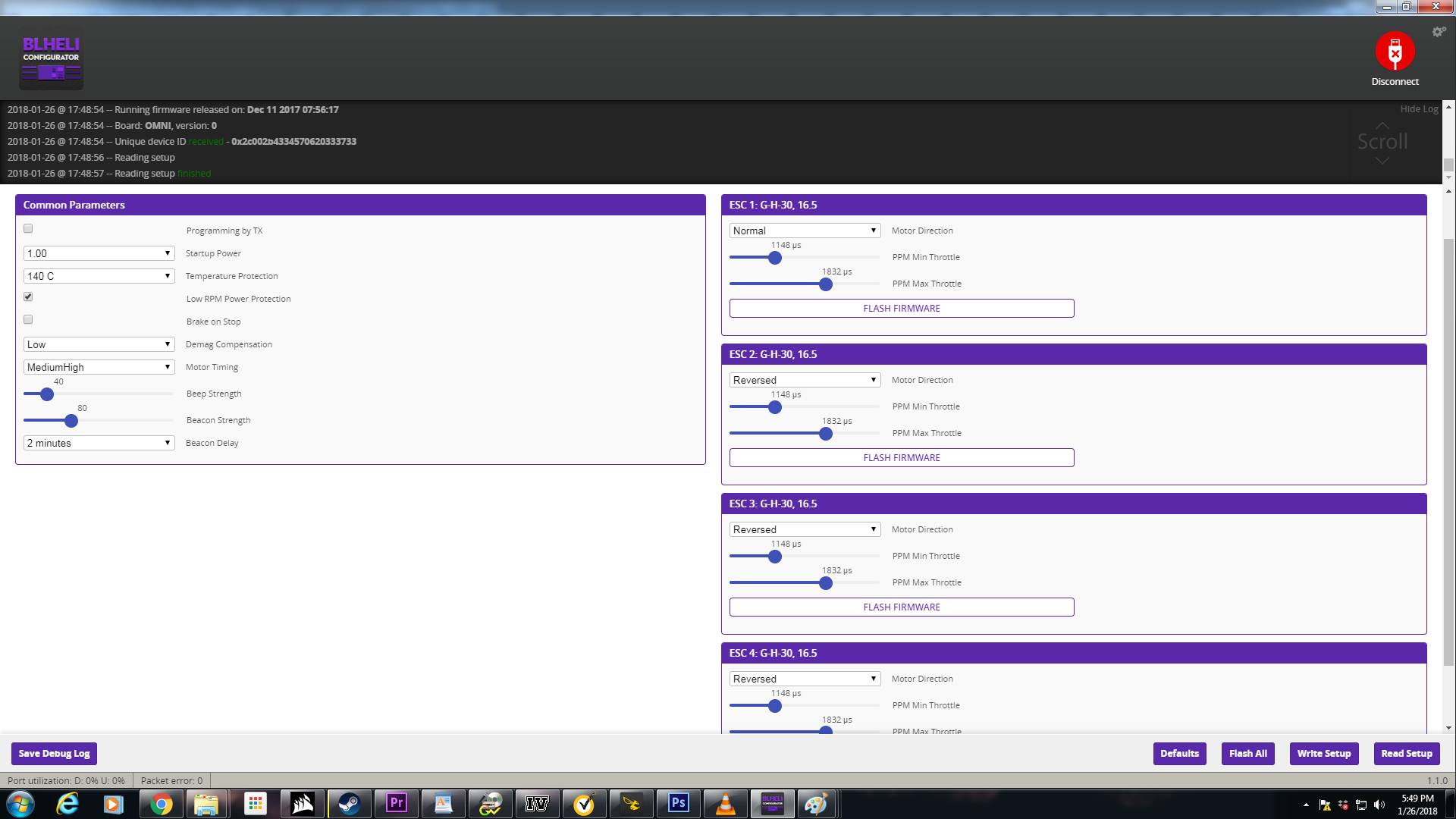

Please check the following betaflight and blheli configurations which worked well for us:
VIDEOS
Buy more and save
from 5 pcs. | from 10 pcs. |
---|---|
Package Includes
- Nano X main plate (silver color) – 1pc
- Nano X extension plate (silver color) – 1pc
- Propeller guard (silver color) – 1pc
- Propeller guard mounts (silver color) – 4pcs
Do you have more questions?
We are constantly working on improving Nano X racing drone and your participation in the community of users can greatly help everybody, especially you!
Please check out FlexRC Pico X RCGroups thread
matthew (verified owner) –
great little frame that can fit multiple size motors as well as both 16×16 and 20×20 fc and esc combo
Michael (verified owner) –
Such a clean frame, and the way the carbon fiber prop guards snap on with no screws is genius. Great design. Built this for 1s with the TinyPepper cube and it’s my favorite indoor flyer.
