FlexRC Pico Core motors wiring diagram


The following FlexRC Pico Core motors wiring diagram is good for Pico X, any version of Pico Owl, Mini Owl and other racing drone which uses FlexRC Pico Core.

1. Please refer to how to assemble FlexRC Pico Core.

2. If you are using DYS 1104 motors, then refer to How to solder DYS 1104 motor wires for more information about steps you need to take.

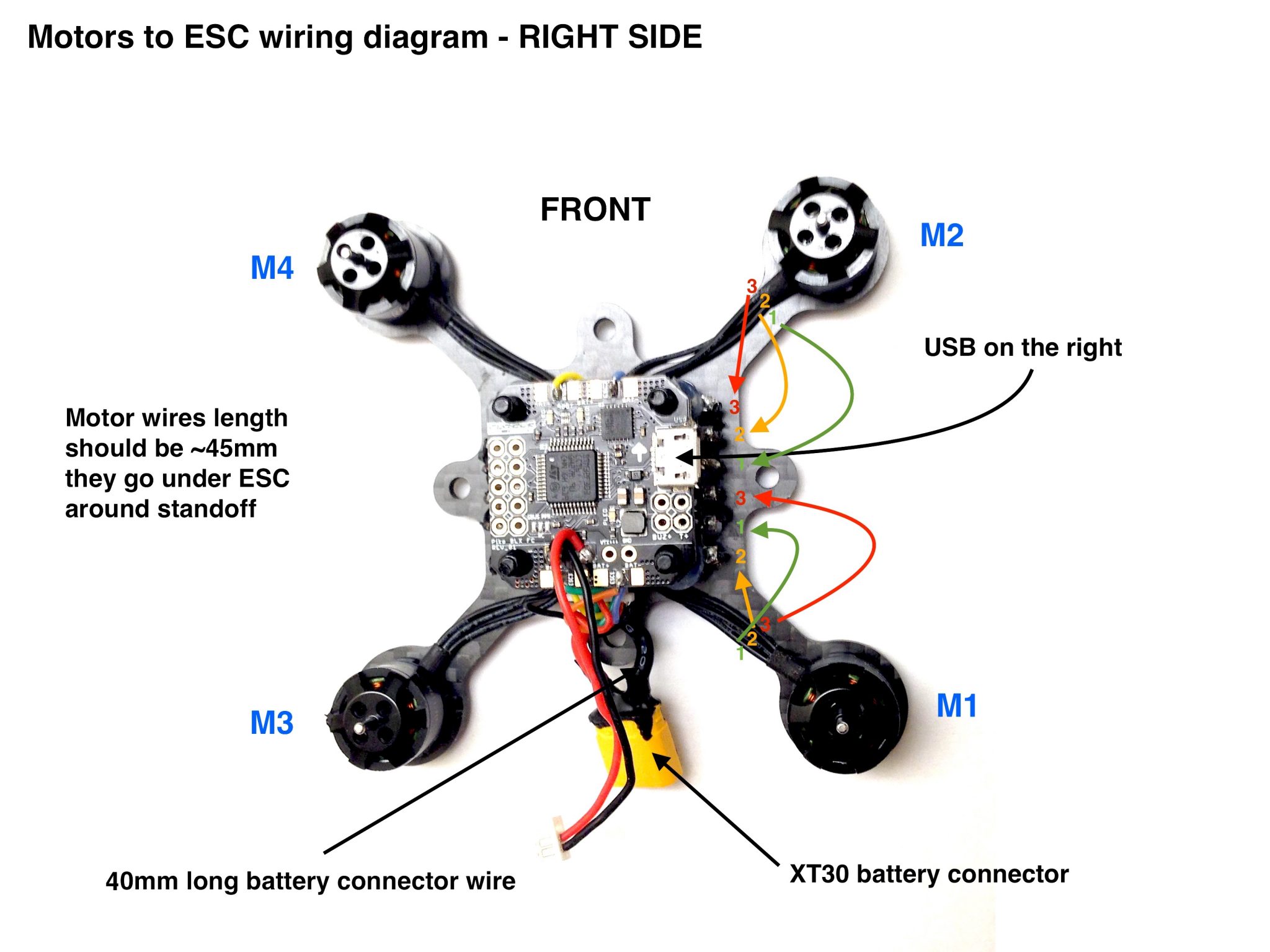

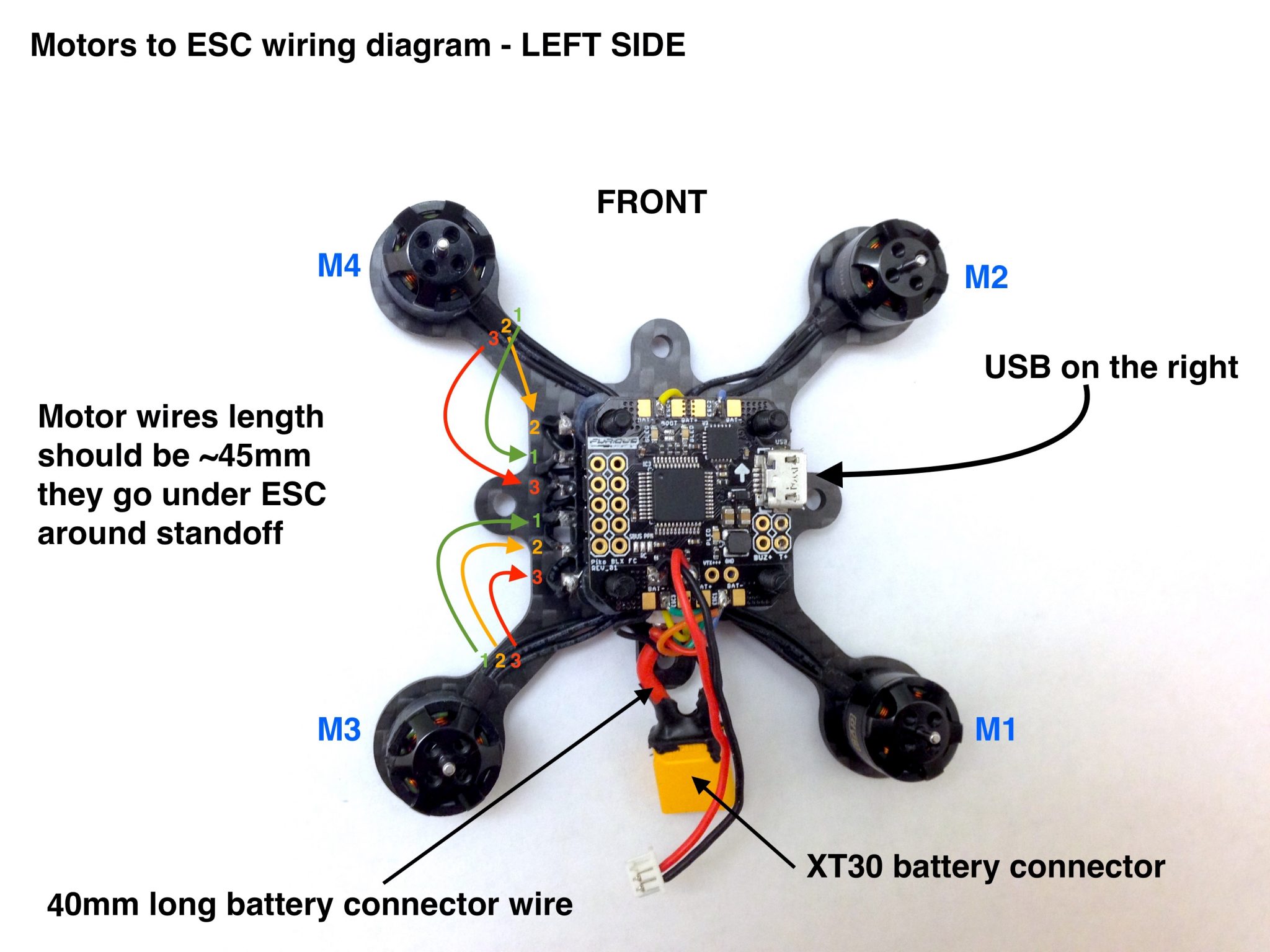

3. The following diagrams show order in which you should solder motor wires in order to get correct motor rotation for “puller” configuration.

* Please double check length of motor wires you need to keep in order to be able to successfully assemble your quadcopter

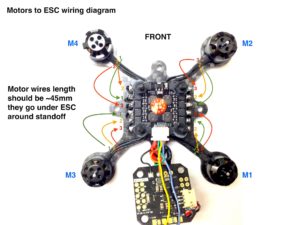

motors-to-esc-connection-diagram
