How to assemble FlexRC Pico Core DIY Kit


FlexRC Pico Core is very easy to assemble, just follow the steps before and your racing drone will be ready in just a few minutes.


flexrc-pico-core-contents

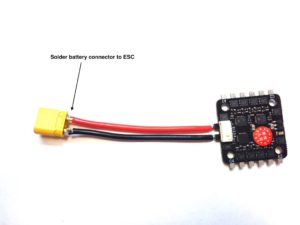

Solder battery connector to ESC


step-1-solder-battery-connector

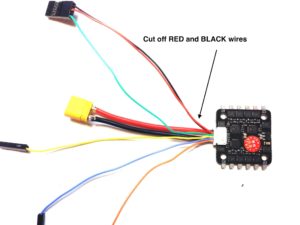

Cut off red and black wires


step-2-cut-off-red-and-bacl-wires

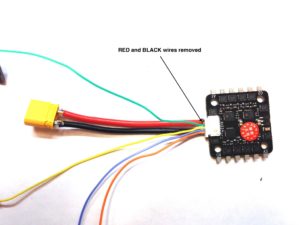

Result will look like this:

step-2-result

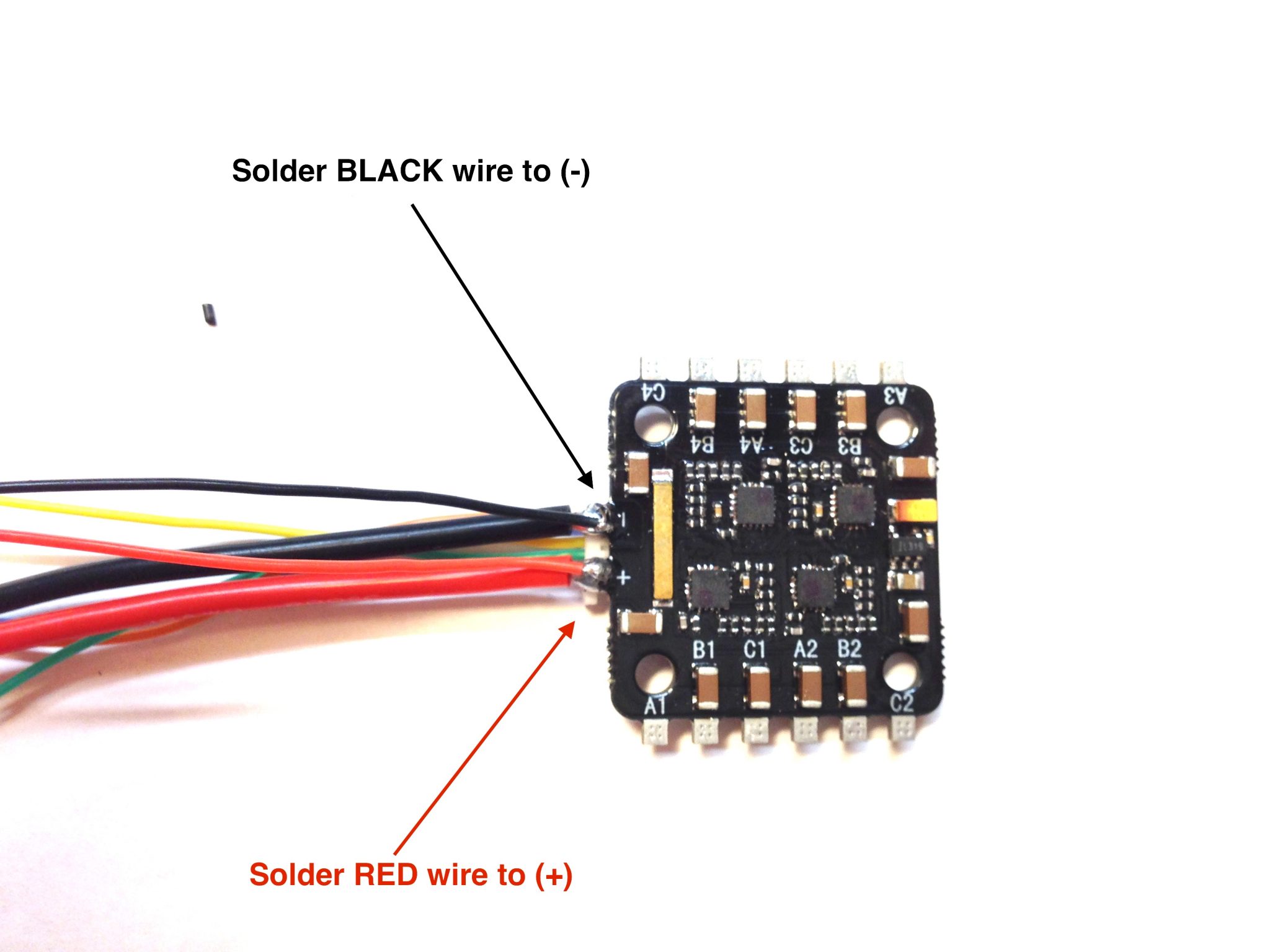

Solder black and red wires to power pads


step-3-solder-black-and-red-wires-to-power-pads-on-esc

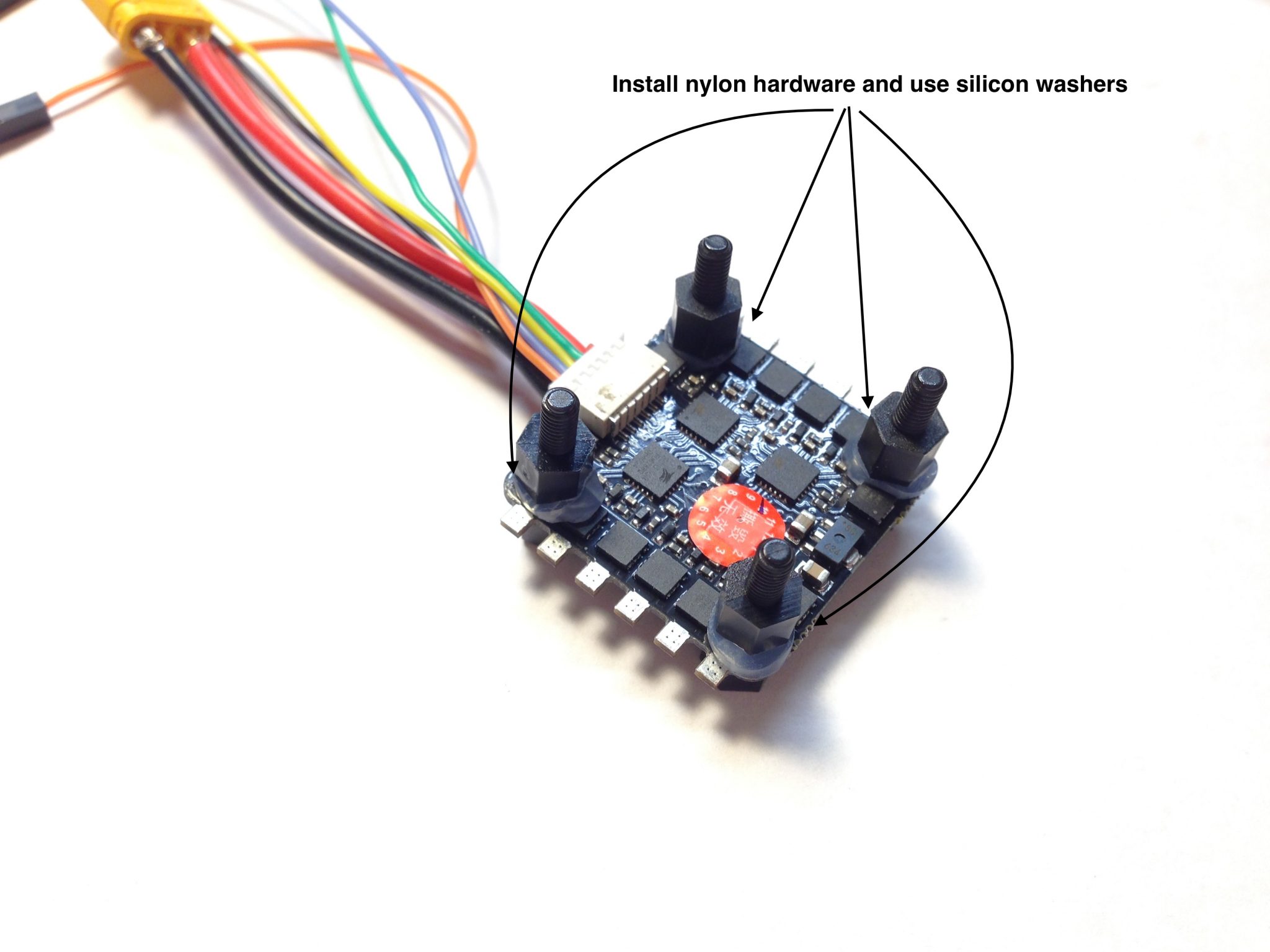

Install nylon hardware

If hardware does not fit well, then use silicone washers to prevent damage to components. You can also slightly shave off excessive material from nylon standoffs which prevents them from fitting well.


step-4-install-nylon-hardware

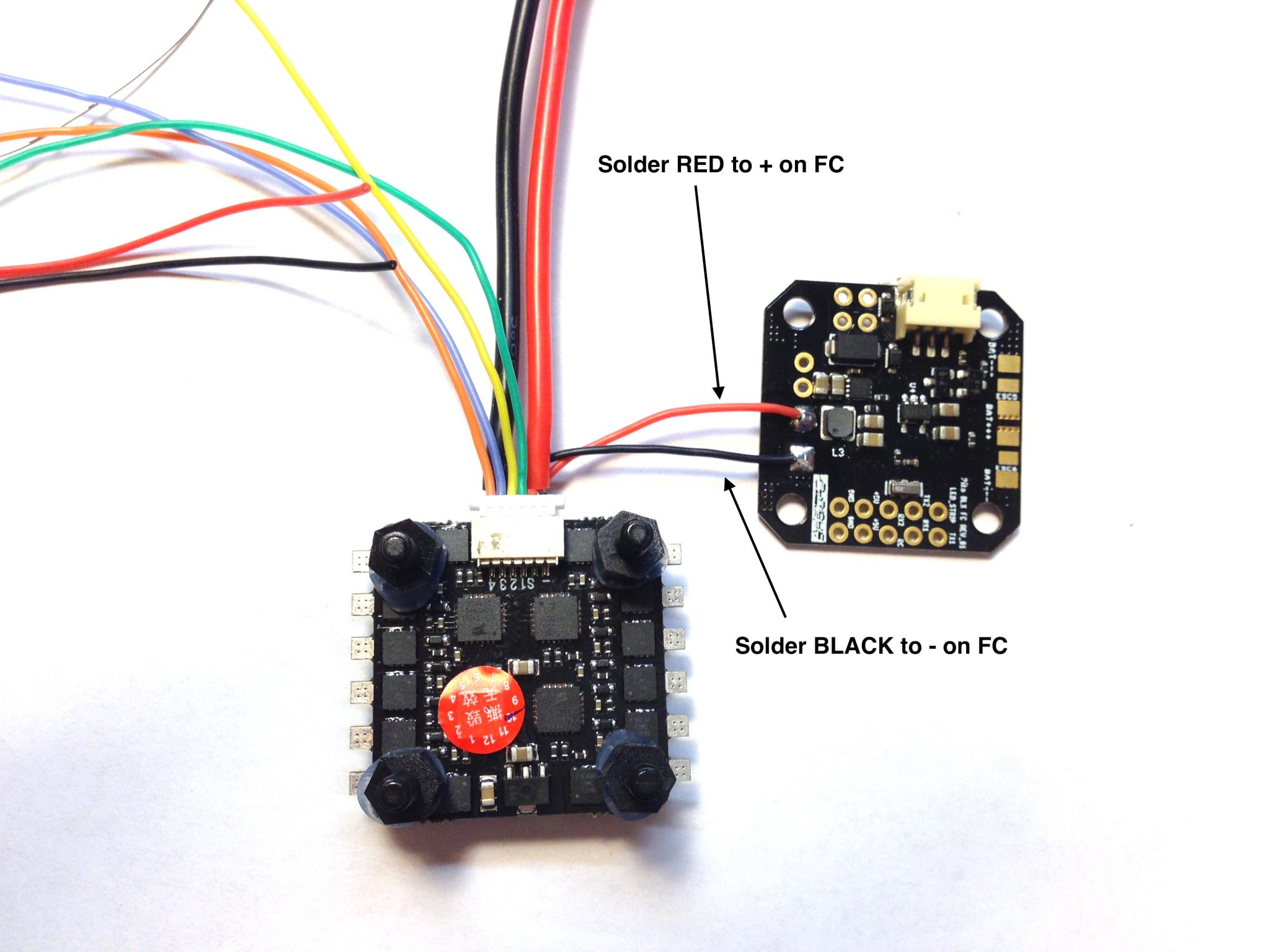

Solder power wires (+) and (-) to Fliught Controler


step-5-solder-power-from-esc-to-flight-controller

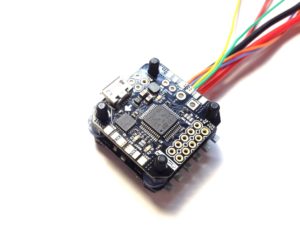

Install Flight Controller on Nylon Standoffs


step-6-install-fc-on-nylon-standoffs

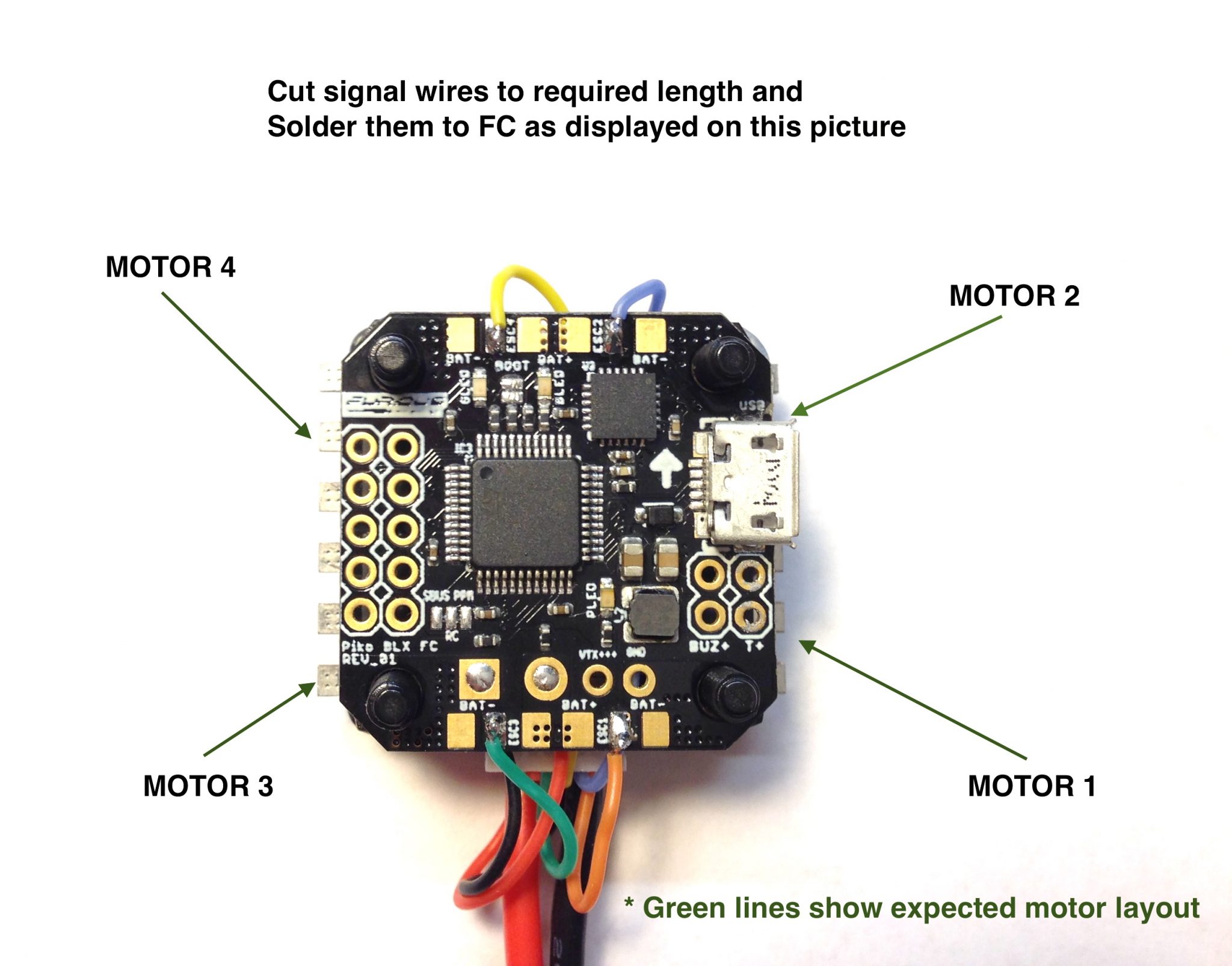

Solder signal wires to Flight Controller


step-7-solder-signal-wires
