How to build FlexRC Owl DIY Kit with FlexRC Core

Building FlexRC Owl DIY Kit is extremely easy and it is even easier with FlexRC Core.

* In order to reduce possibility of mistake, it is recommended to test everything after each step rather than after everything is complete!

Assemble FlexRC Core

Please refer to FlexRC Core Assembly guide to prepare the main part (core) of your Owl racing quadcopter.

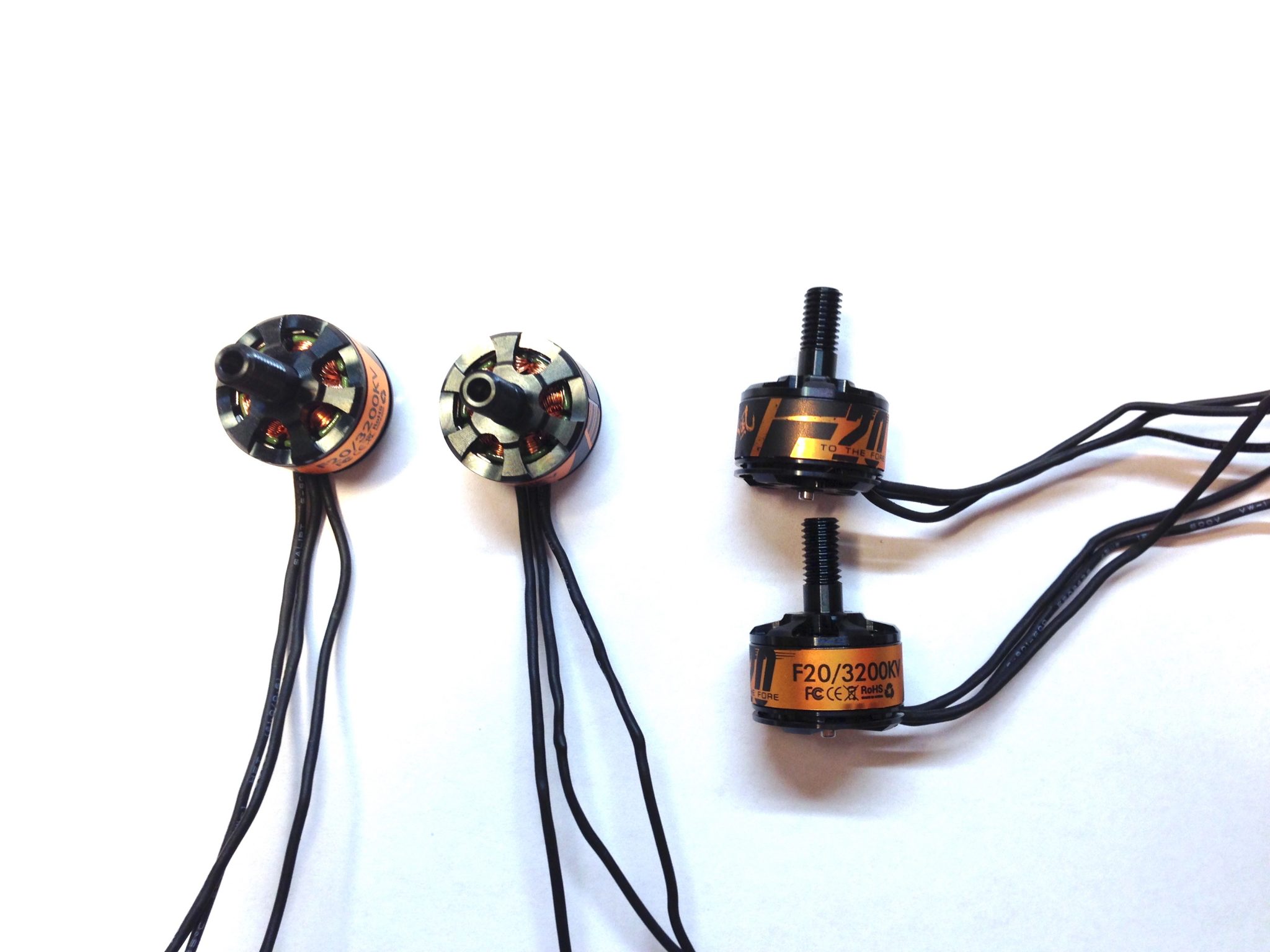

Take motors out of the box


f20-motors-in-the-box


f20-motors-out-of-the-box

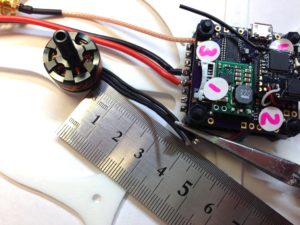

Install motor #1 and shorten its wires


shorten-wires-of-motor-1

Solder motor #1

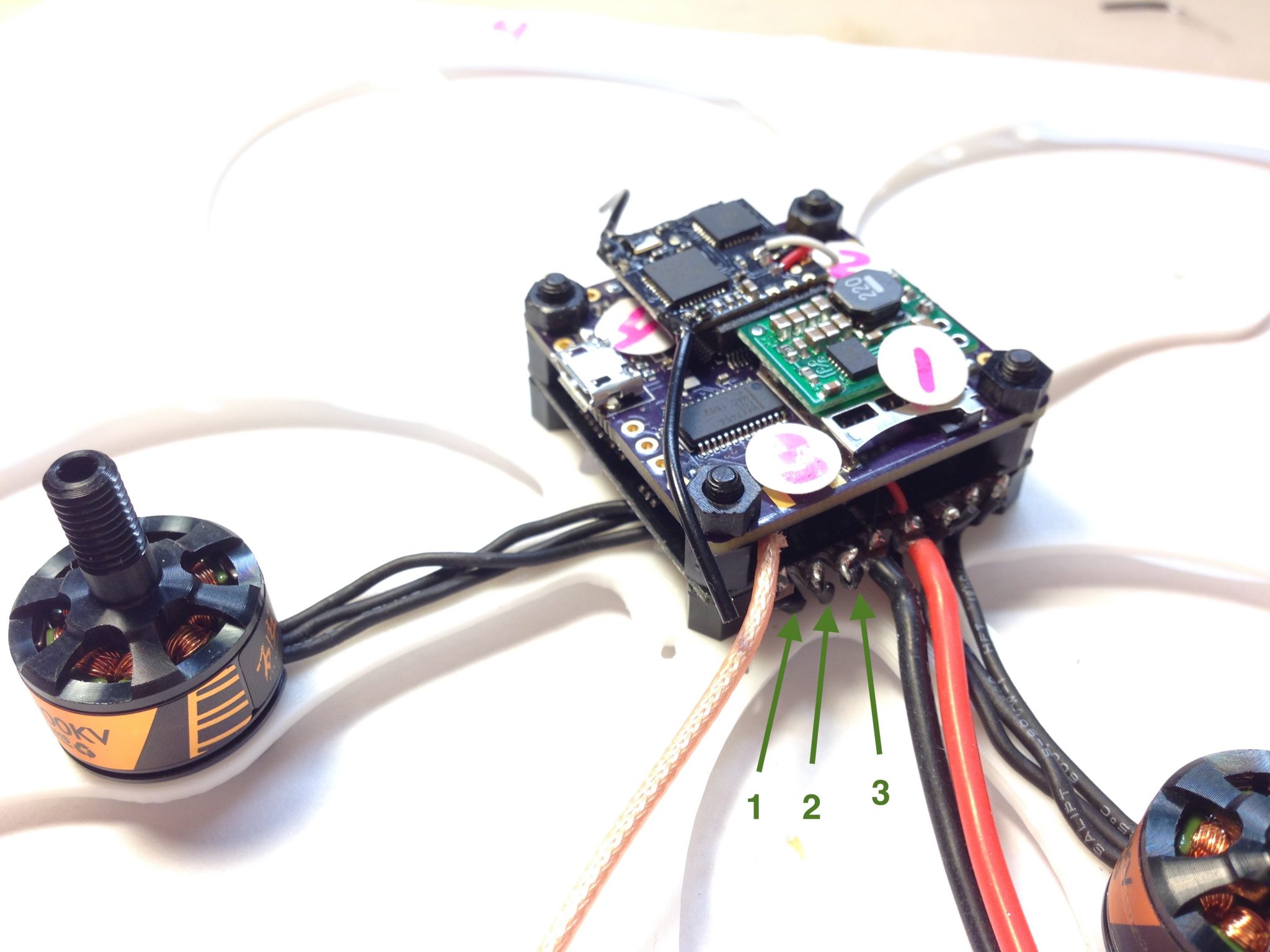

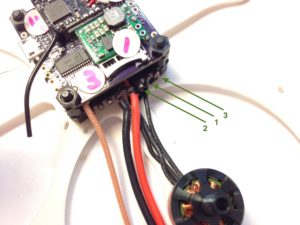

Solder motor to ESC #1 as displayed on the picture. First and second wires are crossed.
solder-motor-1

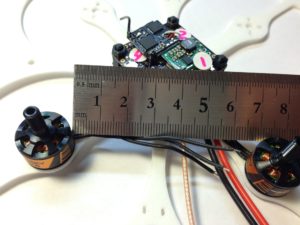

Install motor #3 and shorten its wires


shorten-wires-of-motor-3

Solder motor #3

Solder motor to ESC #3 as displayed on the picture. All wires are straight 1->1, 2->2, 3->3

solder-motor-3

Install and solder motor #2

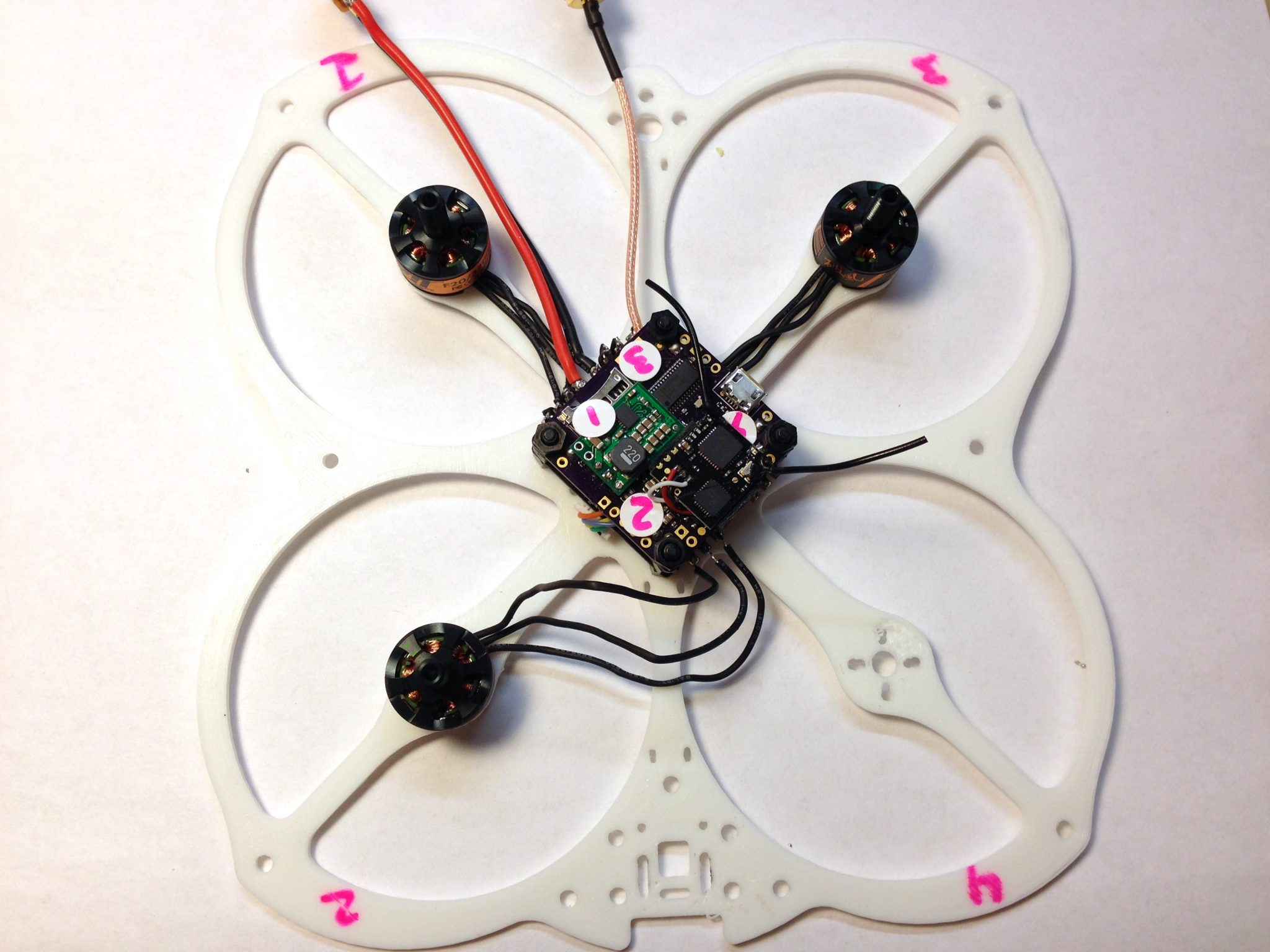

Motor #2 is installed exactly as motor #3 with wire shortened to the same length and wires connected to ESC as 1->1, 2->2, 3->3.


install-motor-2

Install motor #4

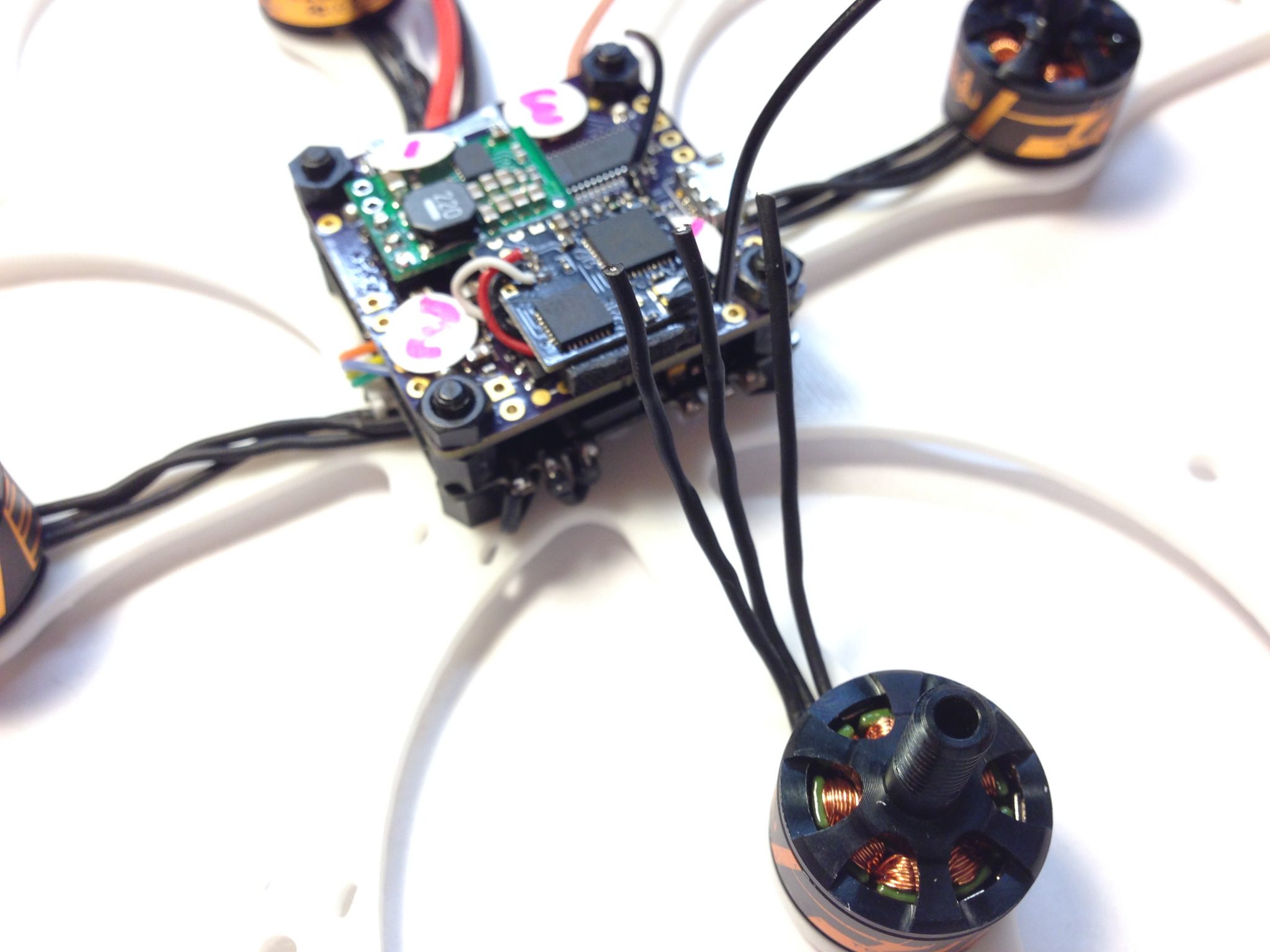

Screw motor #4 and shorten wires to the same length as motor #1.


install-motor-4

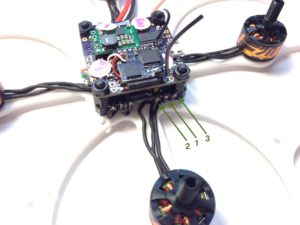

Solder motor #4


solder-motor-4

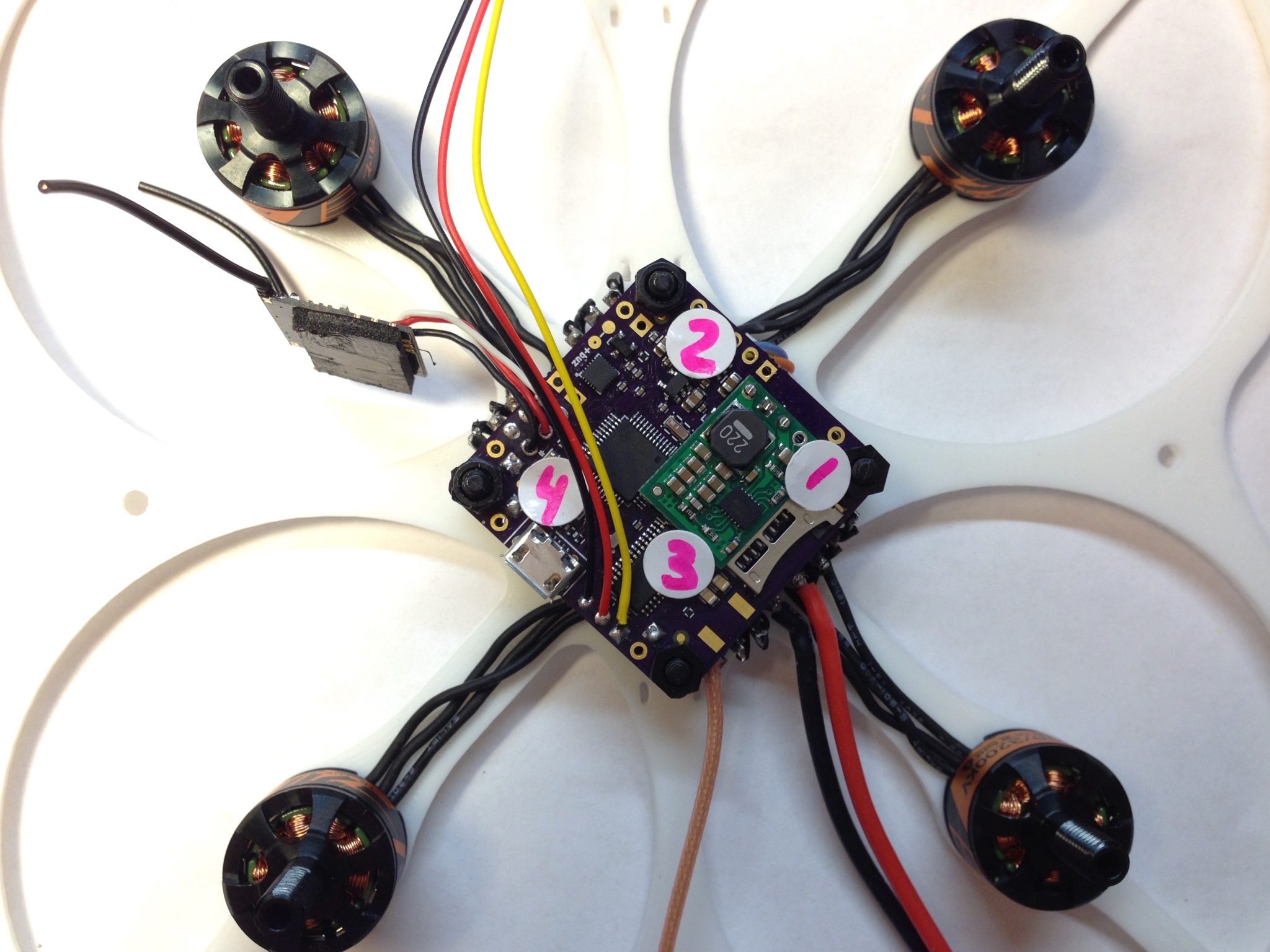

Solder camera


solder-camera

Your are pretty much done…

Next step will be to screw frame together and configure betaflight.
