How to assemble FlexRC Core DIY Kit


FlexRC Core is an incredible piece of electronics which uses best components available on the market and offers light all in one solution for you racing drone and easiest building experience.


FlexRC Code

It includes:
– All in One F3 Flight Controller with integrated 200mW VTX, OSD and blackbox
BusyBee2 4 in 1 20A ESC
Pololu 5V, 1A
SMA Antenna pigtail
Set of mounting hardware

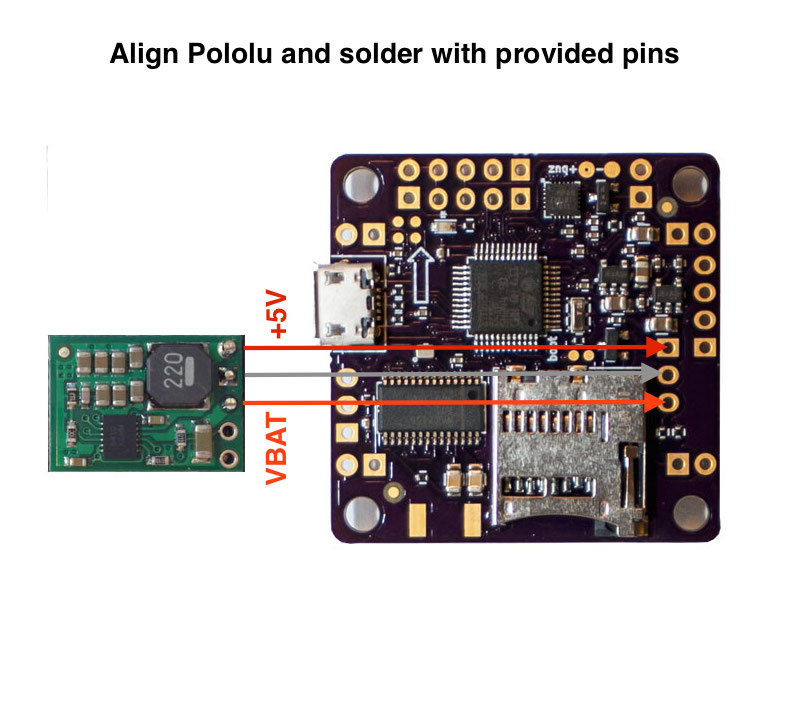

Install Pololu on top of the Flight Controller


flexrc-core-install-pololu

After everything is soldered, it is recommended to cut of excess of pins.

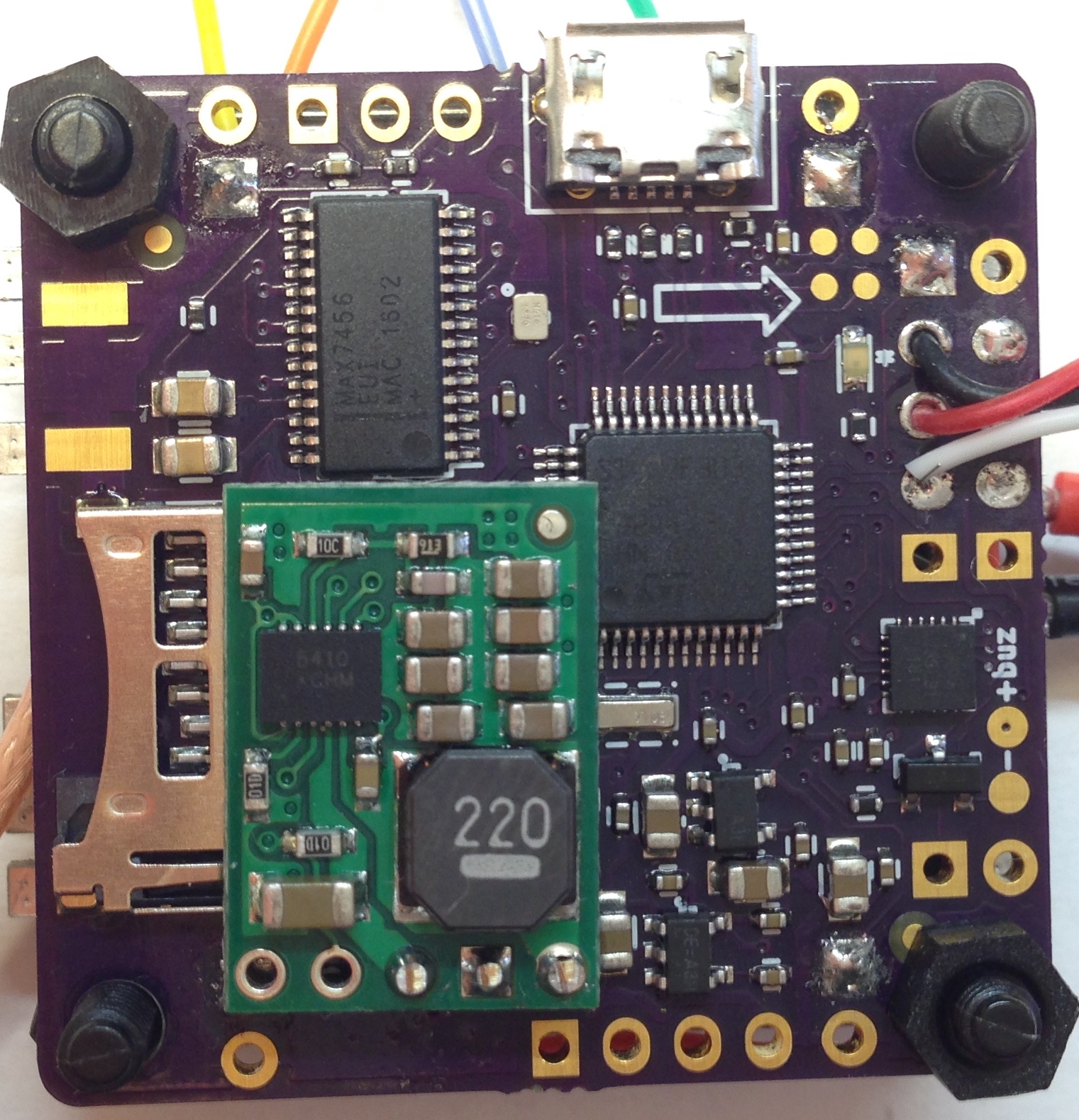

The result will look like this:

flexrc-core-installed-pololu

** Please note that Pololu comes with 5pin connector and you will need to pull out two unused pins

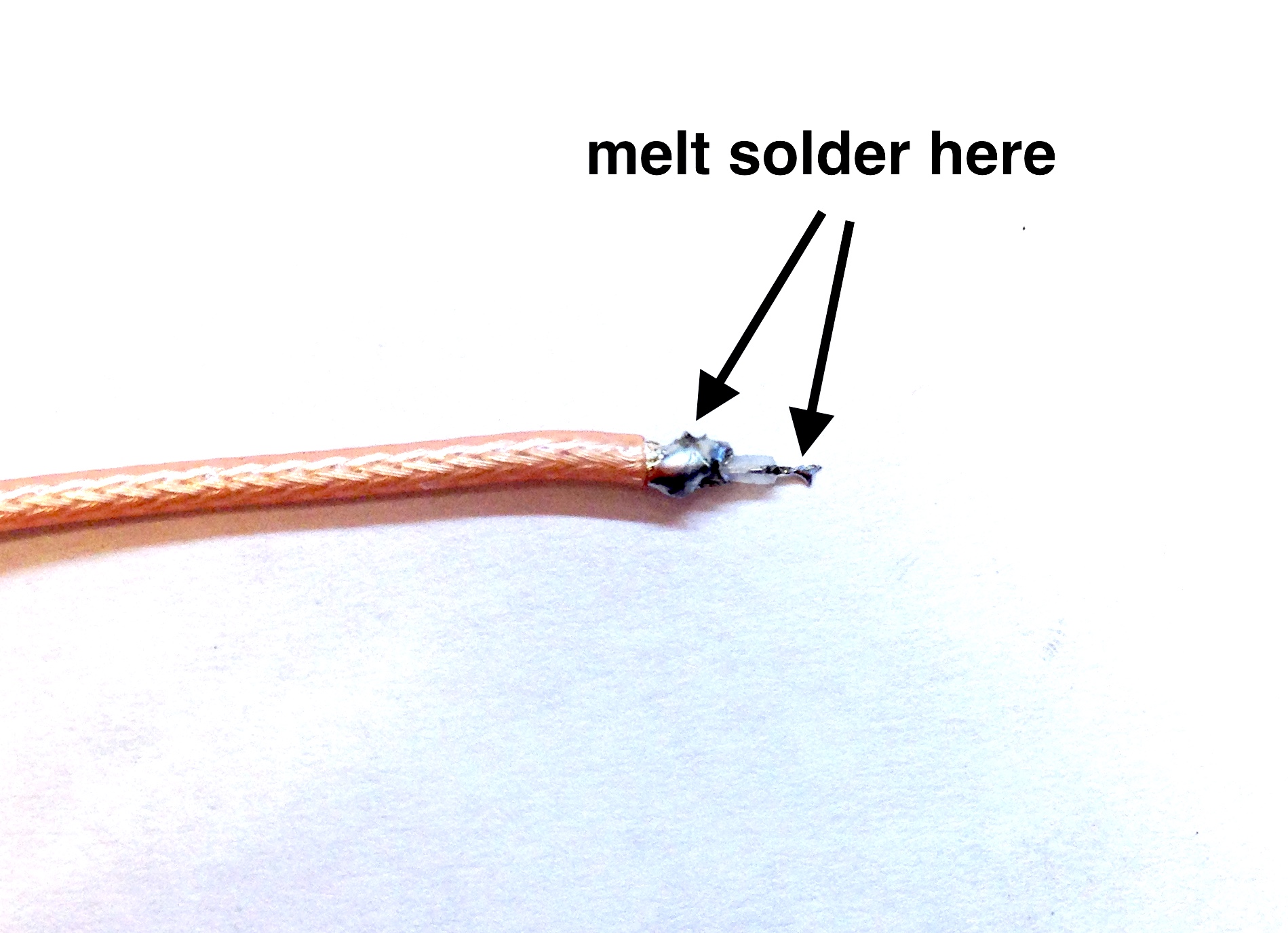

Prepare SMA antenna pigtail

Remove enough insulation to have antenna wire exposed and shield exposed, then melt a lot of soldered on the shield and antenna wire.

flexrc-core-prepare-antenna

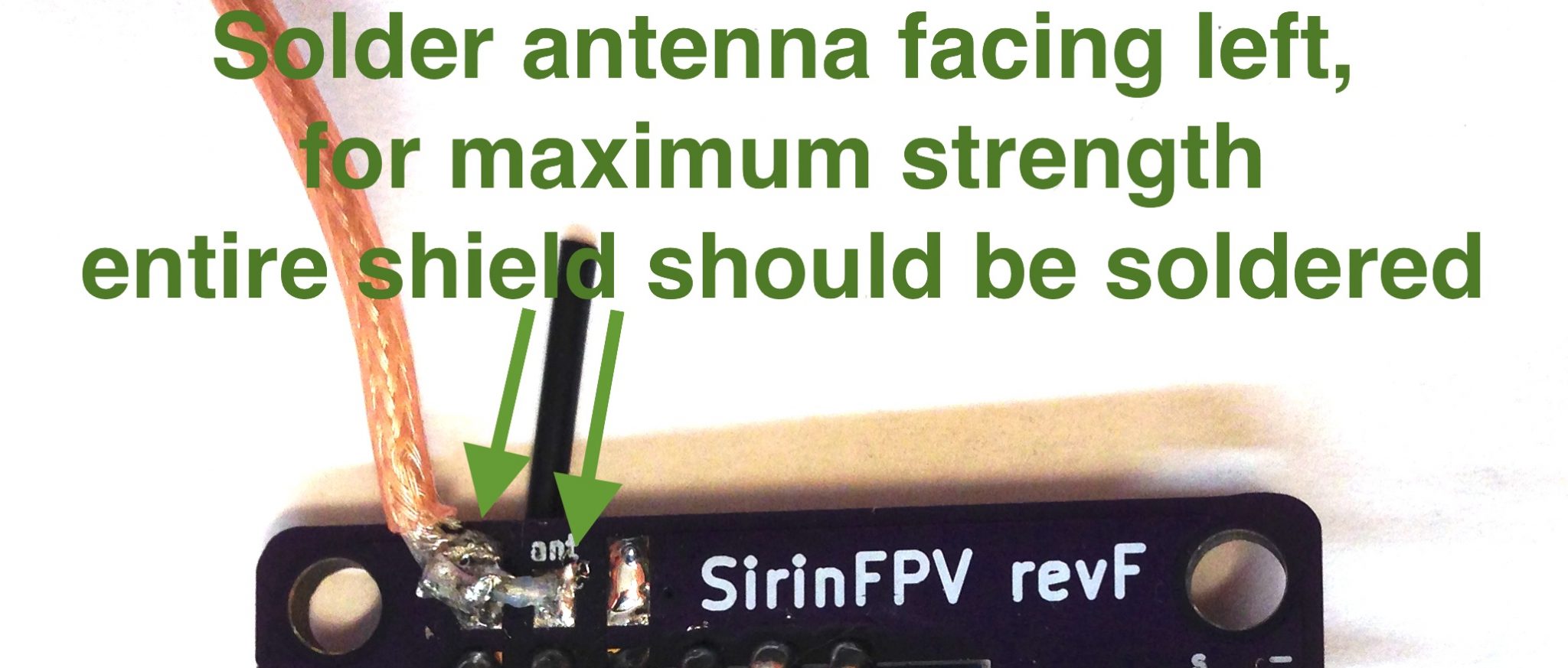

Solder antenna to the bottom side of FC

Make sure that antenna cable is facing LEFT and you solder entire shield to the pad, so it will be strong.


flexrc-core-solder-antenna

It is also recommended to use hot glue to reinforce the connection.

Install signal wires and power wires

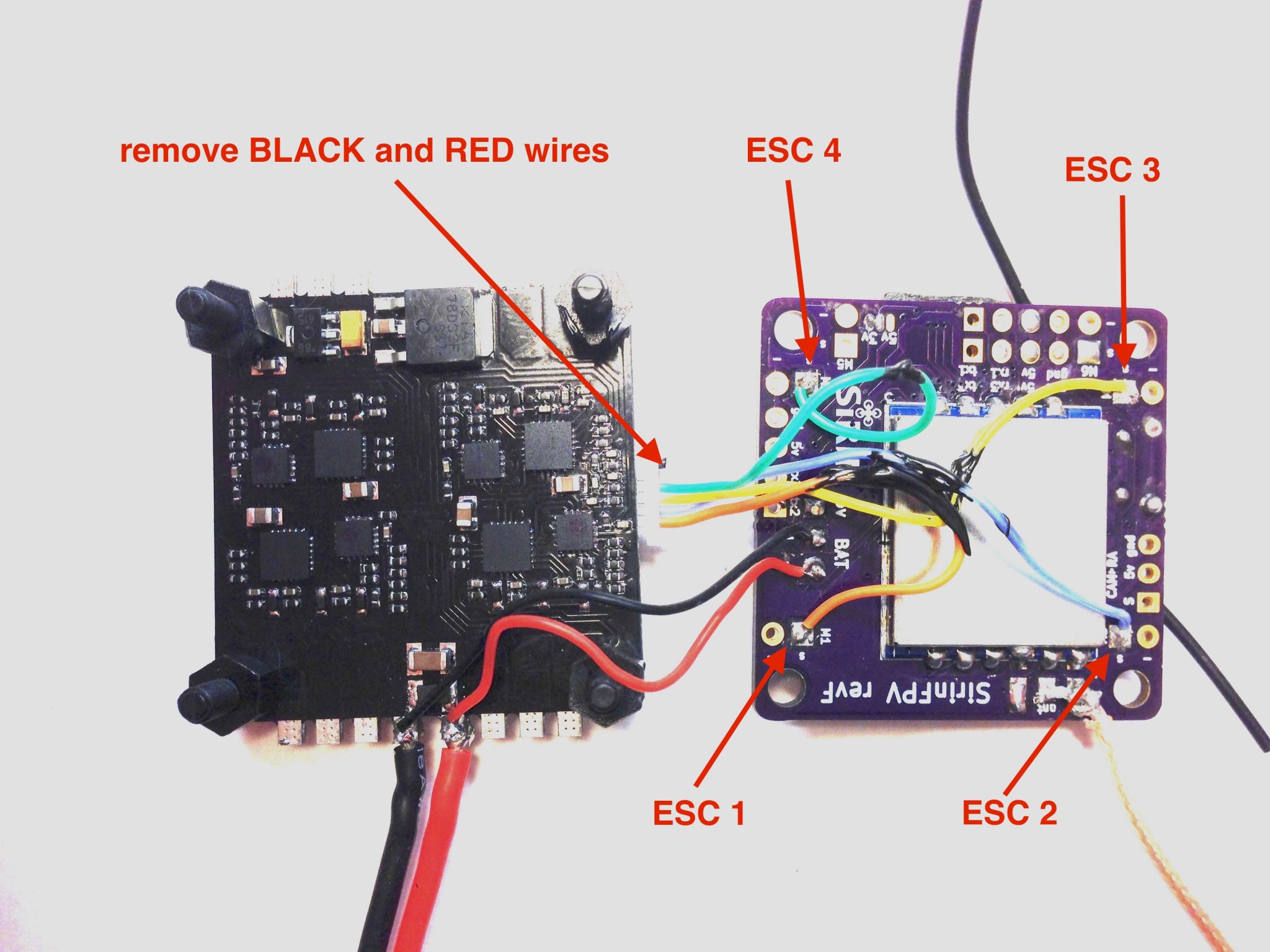

First remove BLACK and RED wires from ESC harness and then reuse them to connect power from ESC to FC and connect signal wires like on the picture:


flexrc-core-wiring-diagram

Notice that it looks like we are routing ESC wires to the wrong locations on the Sirin board. Trust the picture – this will simplify how motors are soldered to the 4-in-1 board later. If you have already decided to orient the 4-in-1 board in a certain specific manner, feel free to connect the ESC wires to the “appropriate” connections on the Sirin board.

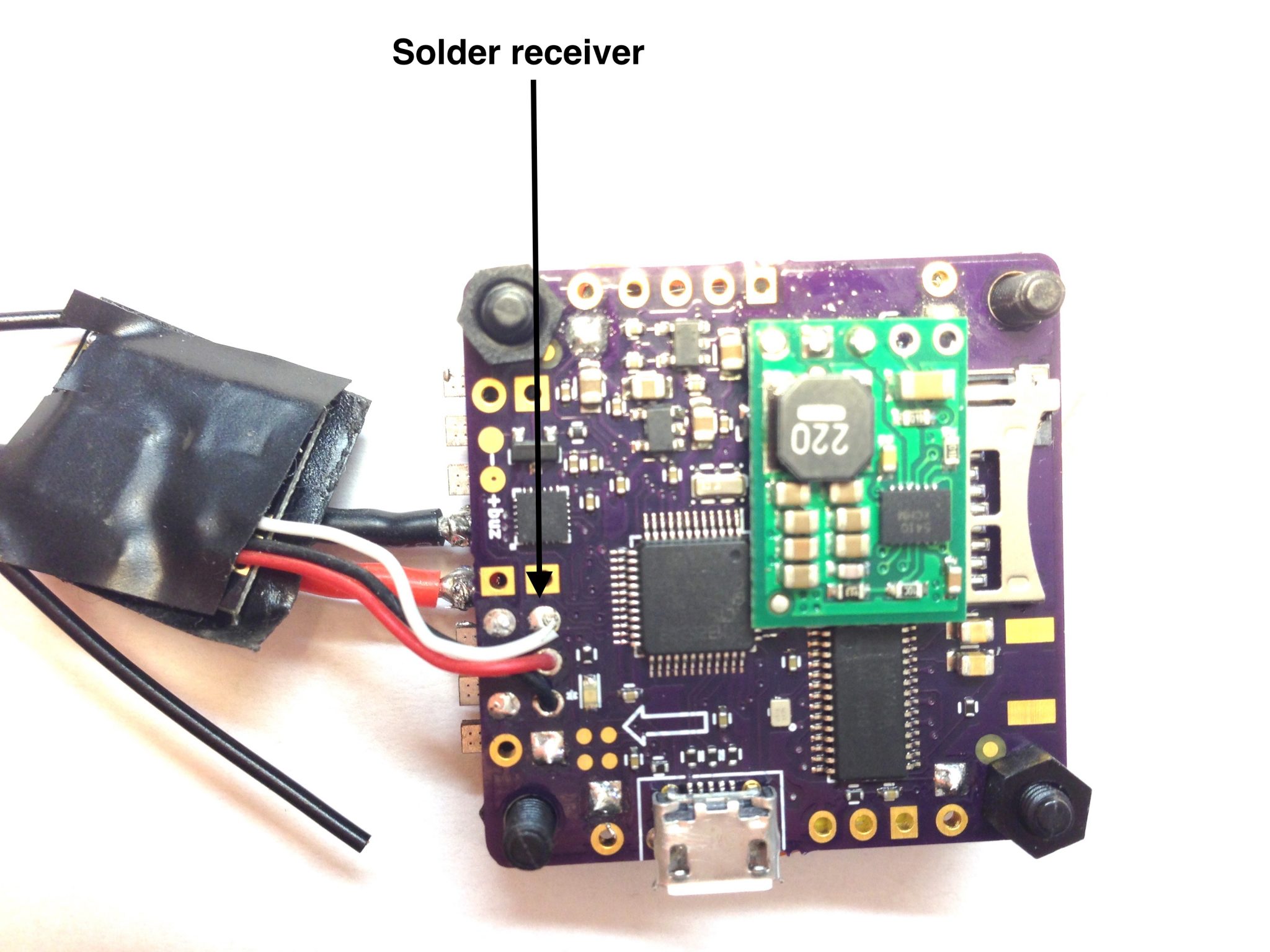

Connect receiver to UART3


flexrc-core-install-receiver

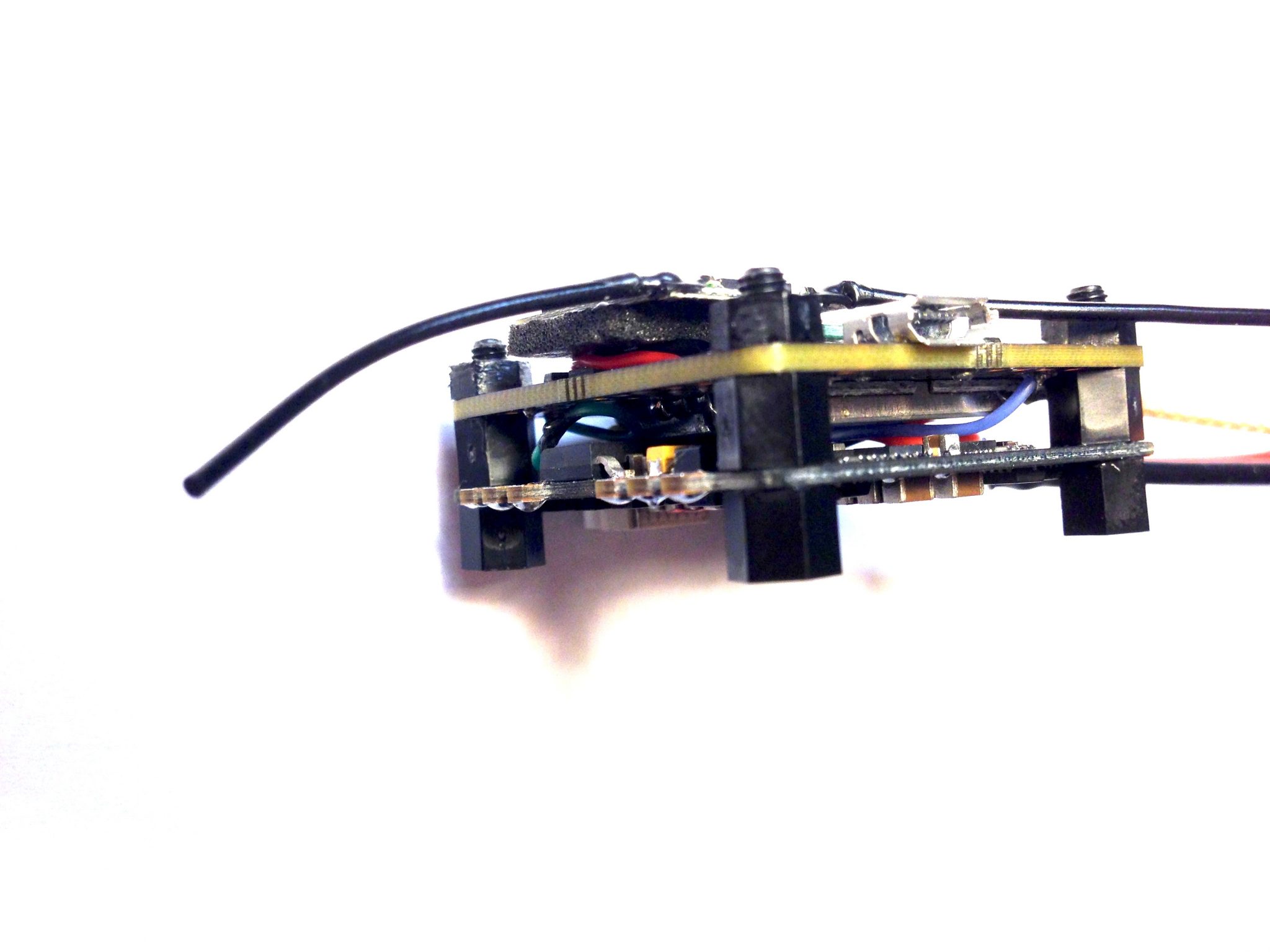

Screw two boards together with provided hardware

Please put silicone washers under flight controller to prevent issues caused by vibrations

flexrc-core-3

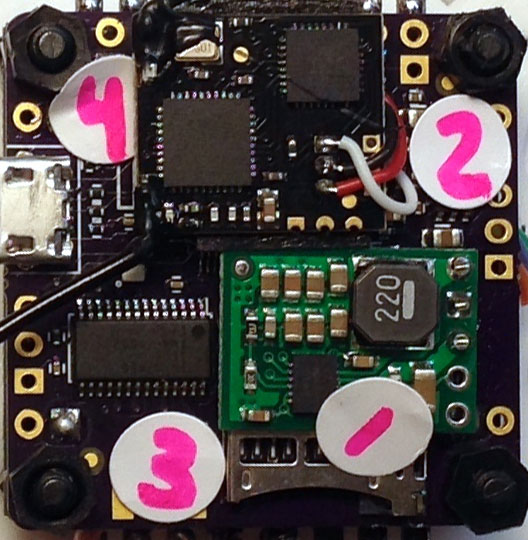

ESC pads orientation


flexrc-esc-pads-orientation

Firmware

Latest Owl kits have SirinFPV board already flashed with with Betaflight 3.0.1 firmware which supports DSMX receiver binding.

But in case you need to re-flash it and restore recommended settings, here are the links to files:

To restore settings from the dump, please open CLI tab in betaflight configurator and copy/paste contents of the file with CLI settings.

Ready to use!

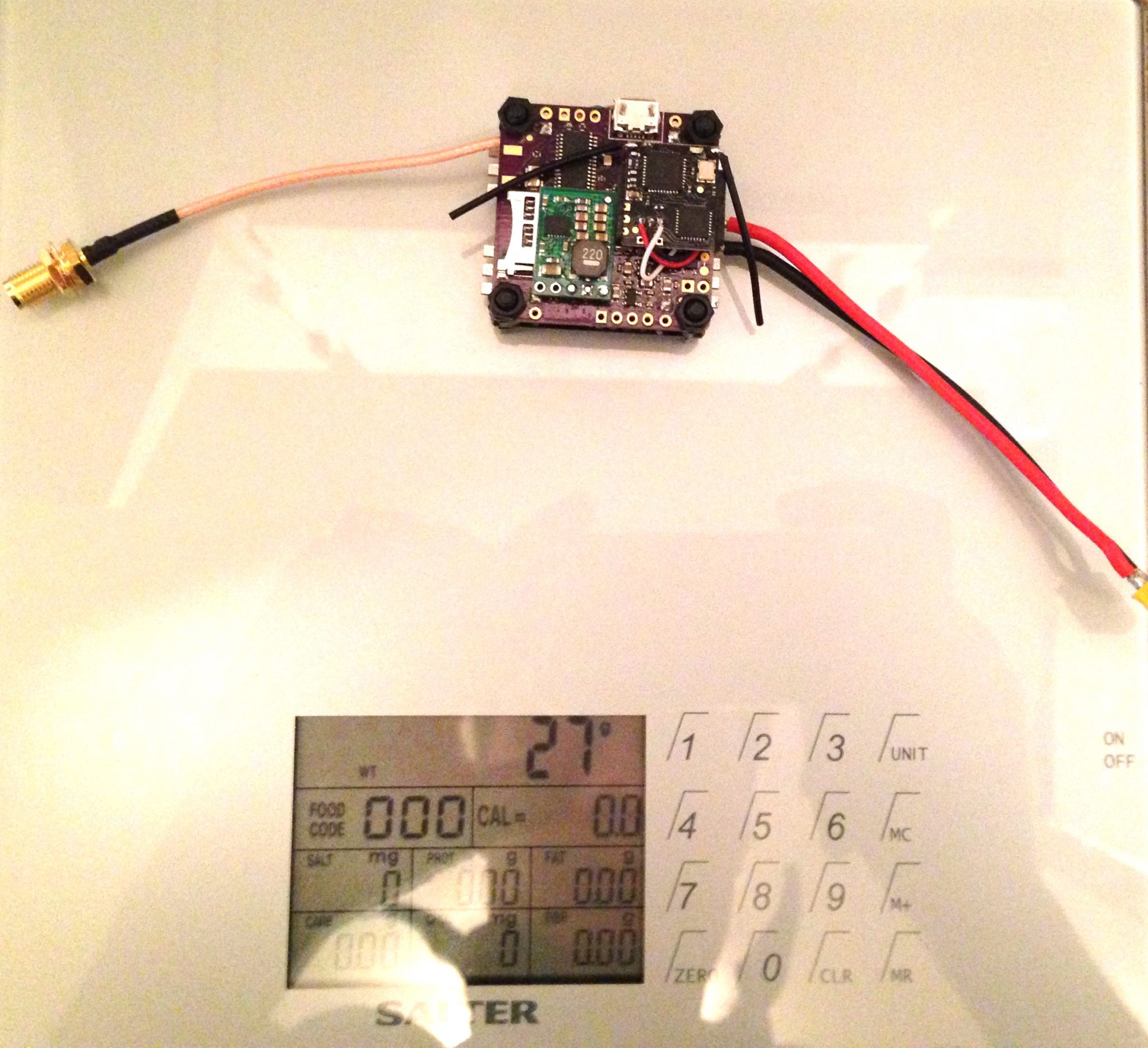

Now this beauty is ready to be installed into your racing drone and check out how light it is:

flexrc-core-on-the-scale

FlexRC Core is perfect for Owl racing drone and any other micro racing drone!

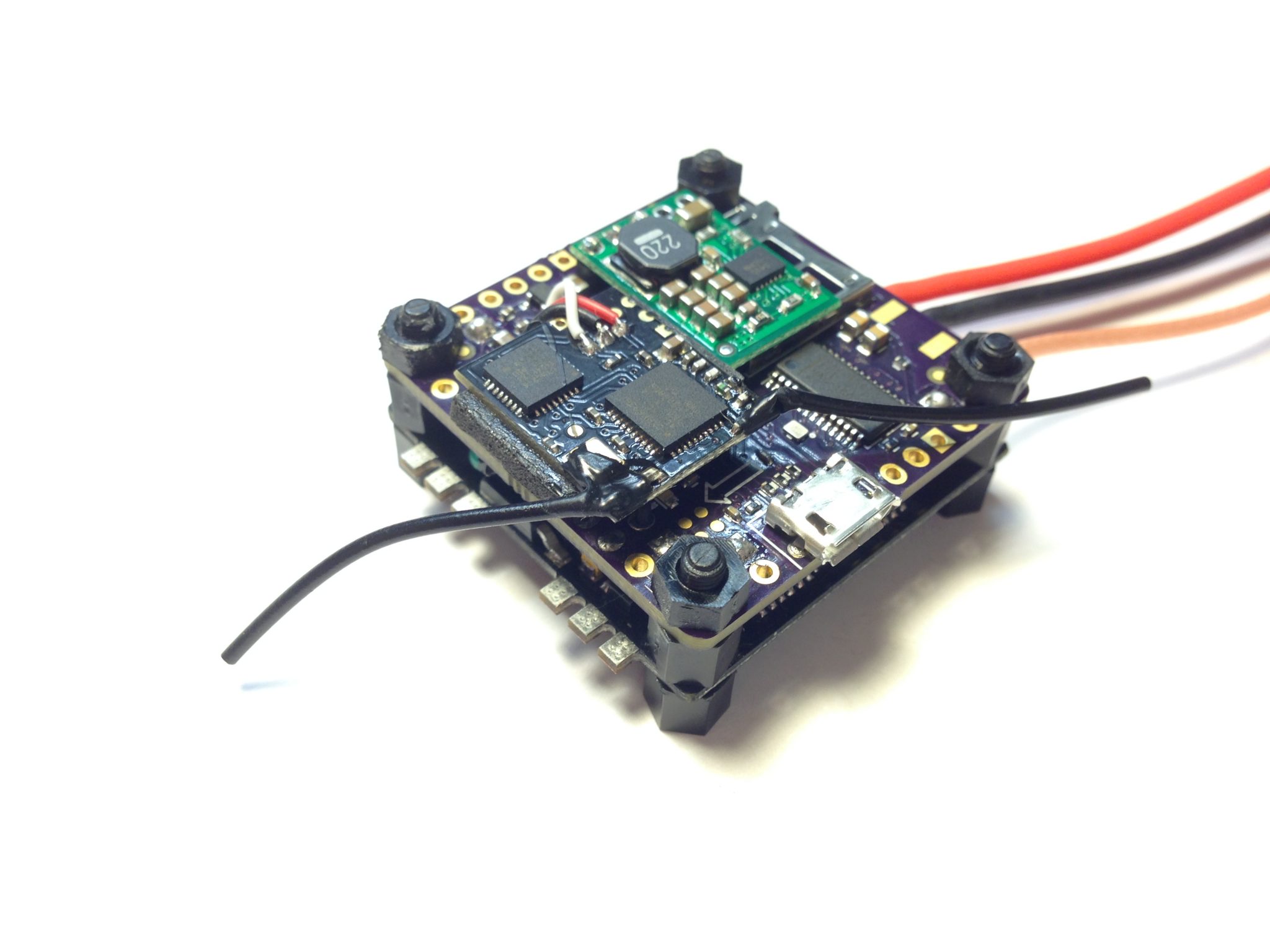

flexrc-core-2

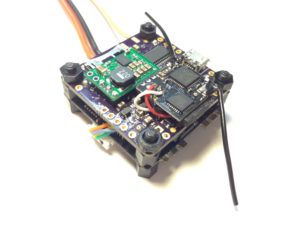

flexrc-core-1
