Typhoon 4 in 1 ESC – add 2s battery support patch


Because of the manufacturing mistake Typhoon 4 in 1 ESC does not work with 2S battery by default.

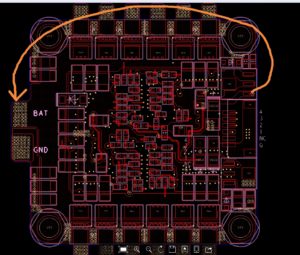

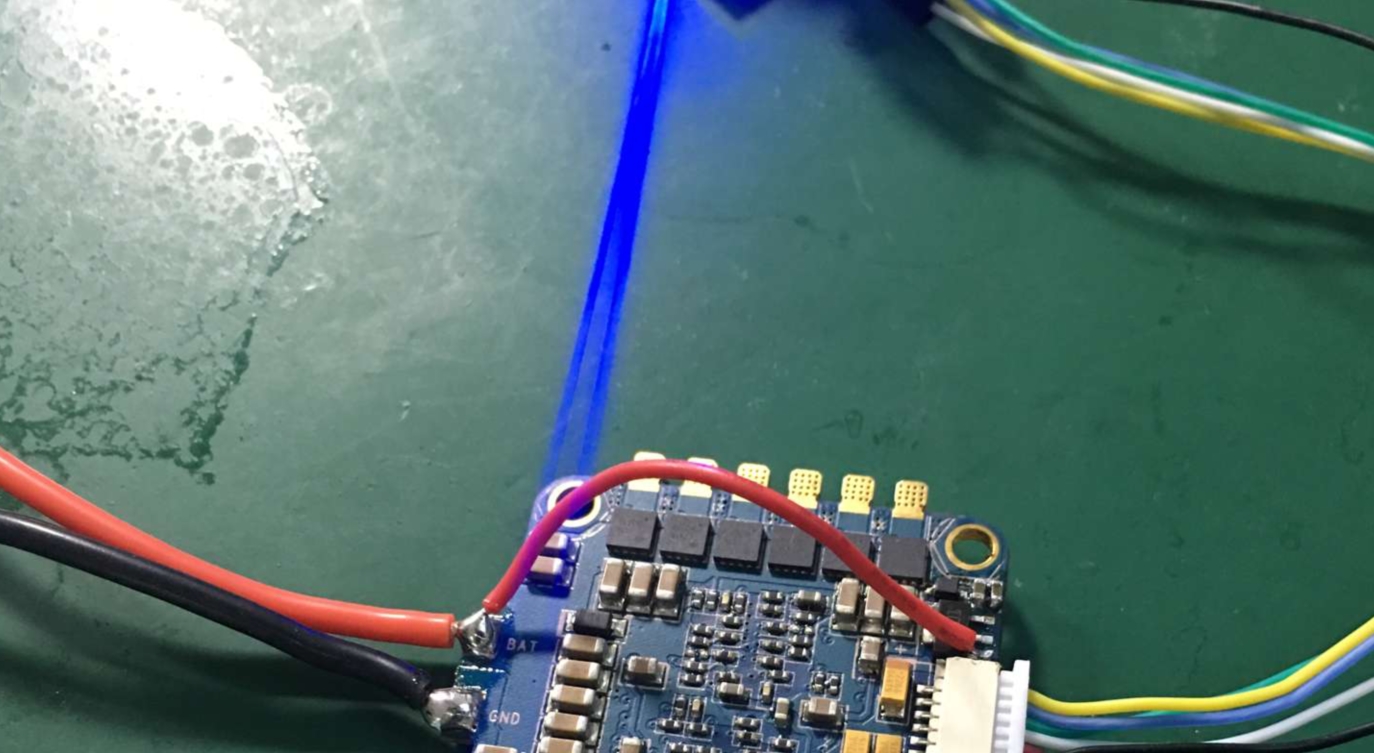

It is relatively easy to add support for 2S battery, just follow the following wiring diagram:


Typhoon 4 in 1 ESC add support for 2S battery


Typhoon 4 in 1 ESC add support for 2S battery

With this patch it will still work with 3-4s batteries, but won’t work with 5-6s batteries.
