TinyFish FC and TinyPepper 1s 4A ESC wiring diagram


TinyFish FC is a revolutionary F3 racing drone flight controller which weights only 1.7g and has integrated FrSky receiver in incredibly tiny 20×20 size with M2 16×16 mounting pattern and when paired with TinyPepper 1s ESC it becomes an ultimate 1s brushless drone solution.

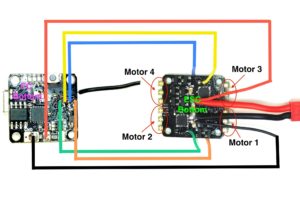

Here is TinyFish FC and TinyPepper ESC wiring diagram:

TinyFish FC wiring diagram with TinyPepper ESC
